Indoor Units • Concealed Ceiling Unit • FXSQ-MVE9

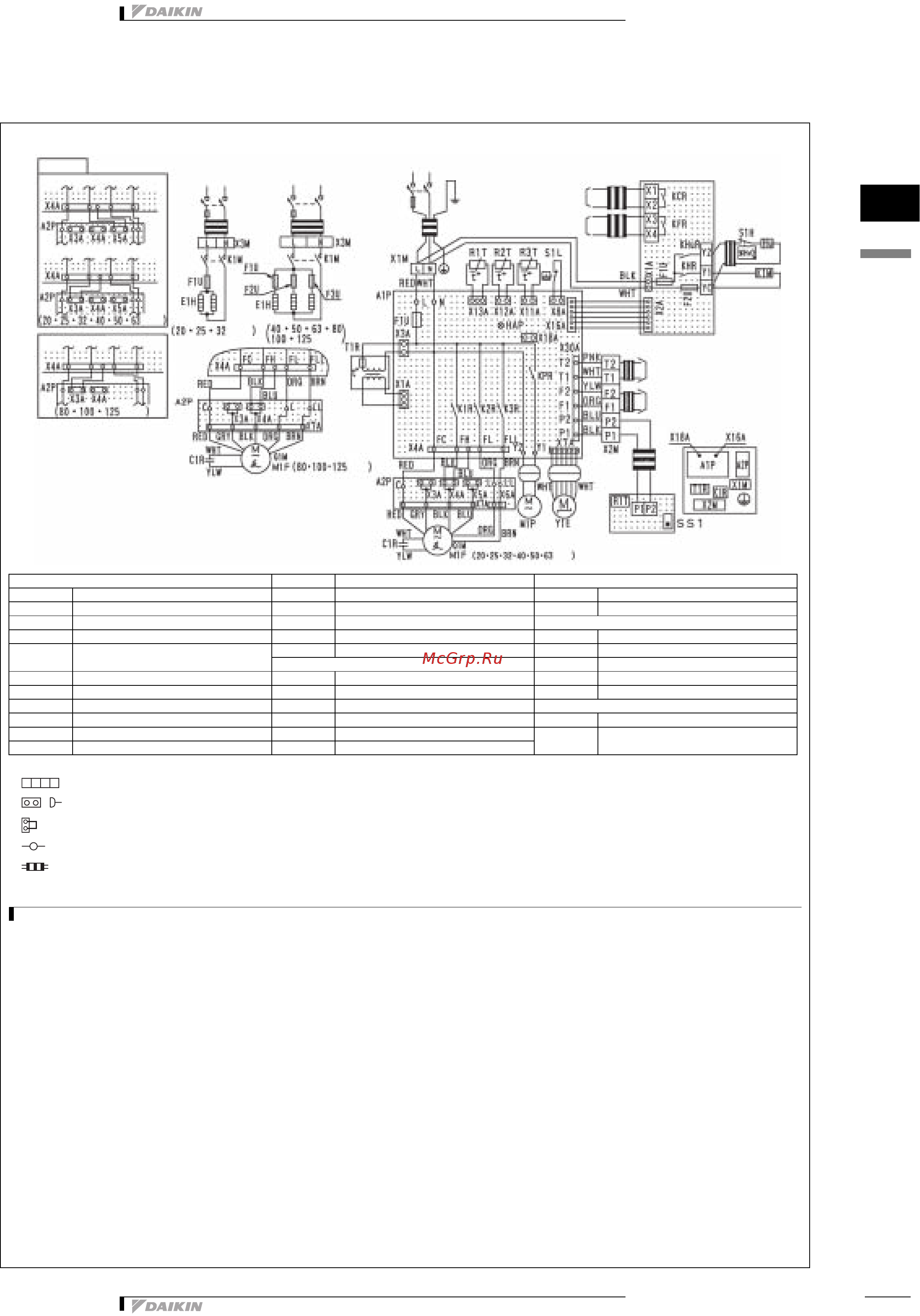

7 Wiring diagram
7 - 1 Wiring diagram
FXSQ-MVE
3D039562A
NOTES
1 In case of using central remote control, connect it to the unit in accordance with the attached instruction manual.
2 When connecting the input wires from outside, forched off or on/off control operation can be selected by remote control in details. Refer to the
installation manual attached the unit.
3 In case unit installing the electric heater, execute the additional wiring for heater circuit (K1M,E1H). In this case, the main power supply has to be
supplied independently.
4 In case high or low E.S.P. operation, change over the wiring connection from X4A (Of A2P) to X3A or X5A.
5 Use copper conductors only.
Indoor unit R2T-R3T Thermistor (coil)
Wired remote controle
A1P Printed Circuit Board S1L Float Switch R1T Thermistor(air)
A2P Terminal board T1R Transformer (220-240V/22V) SS1 Selector switch (main/sub)
C1R Capacitor (M1F) X1M Terminal block (Power) Adaptor for wiring
F1U Fuse (, 5A, 250V) X2M Terminal block (Control) F1U-F2U Fuse (, 5A, 250V)
HAP Light Emitting Diode
(Service Monitor-Green)
Y1E Electronic expansion valve KCR Magnetic relay
Optional parts KFR Magnetic relay
K1R-K3R Magnetic relay (M1F) E1H Electric heater KHR Magnetic relay (5E1H)
KPR Magnetic relay (M1P) F1U-F3U Fuse (, 15A, 250V) KHuR Magnetic relay (Hu)
M1F Motor (Indoor Fan) Hu Humidifier Connectoer for optional parts
M1P Motor (Drain Pump) K1M Magnetic Relay (E1H) X16A Connector (Adaptor for wiring)
Q1M Termo switch ( M1F embedded) S1H Humidistat X18A Connector (Wiring adaptor for electorical
appendices)
R1T Thermistor (Air) X3M Terminal block (E1H)
: Terminal block Colors: BLK: Black PNK: Pink
: Connector BLU: Blue RED: Red
: Short circuit connector BRN: Brown WHT: White
: Terminal ORG: Orange YLW: Yellow
: Field wiring GRY: Gray
Separate Power supply 220-240V 220V
~ ~
50Hz 60Hz
Note-4
Note-3
Low E.S.P. operation
High E.S.P. operation
High E.S.P. operation
type
type
Power supply 220-240V 220V
~ ~
50Hz 60Hz
Compressor
operator
Terminals for
operation indicator
Fan operator
Adaptor for wiring
(optional accessory)
Note-2
Input from outside
Note-1
Transmission wiring
central remote control
Electric parts box
Wired remote control
(optional accessory)
Type
Type
type
type
,
