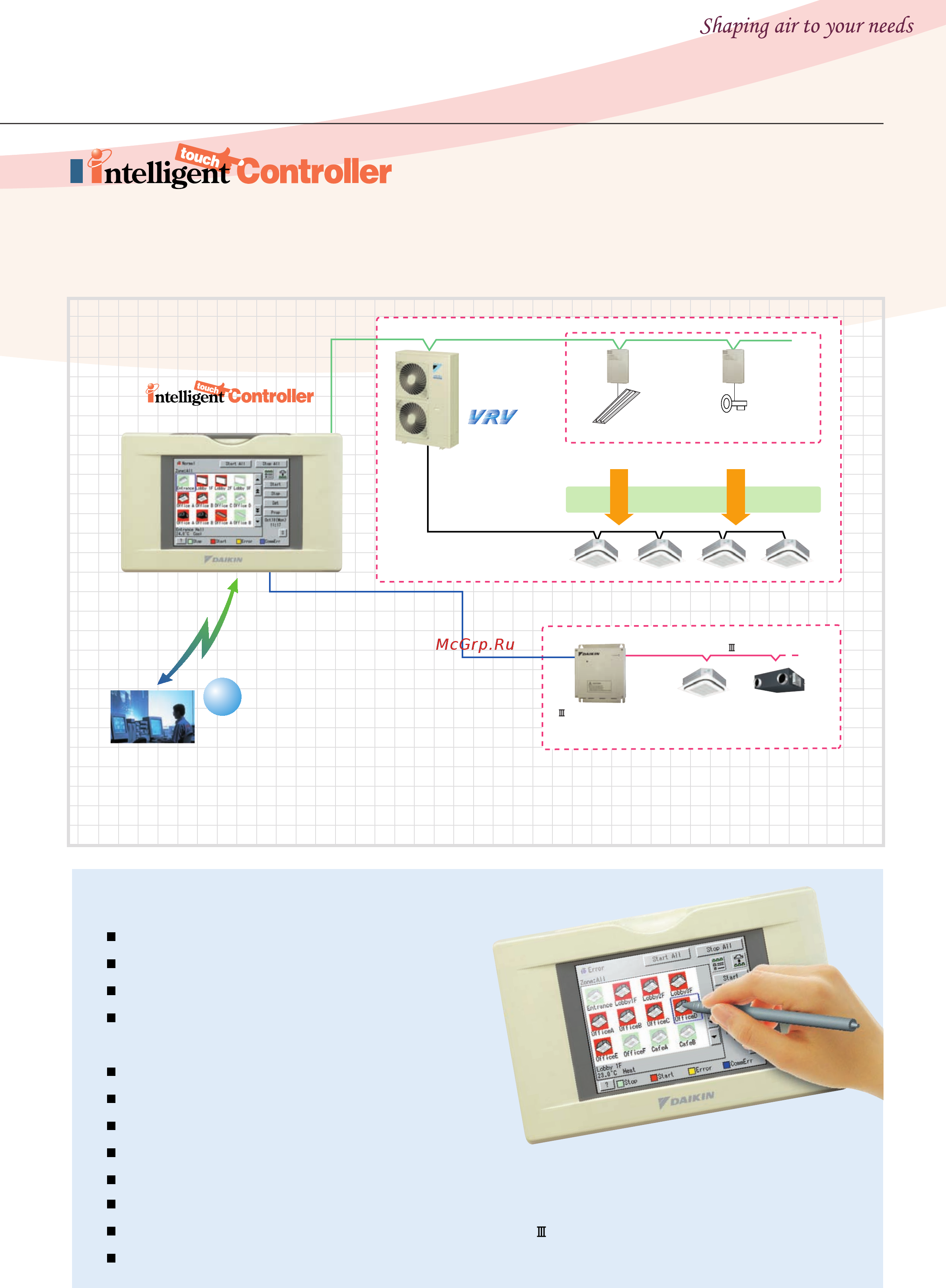

Communication functions in the user-friendly icon-based multilingual controller simplify
centralised control of the VRV system.
Features
Colour LCD touch panel icon display
Small manageable size
Simplified engineering
Multi language (English, French, Italian, German,
Spanish, Dutch, Portuguese, Chinese and Korean)
Yearly schedule
Auto heat/cool change-over
Temperature limitation
Enhanced history function
Simple Interlock Function
Built-in modem for connecting to Air Conditioning Network Service System (Option)
Management of facilities/equipment other than A/C units (By adding Dio unit or Di unit)
Doubling of number of connectable indoor units by adding a D -NET Plus Adaptor (Option)
Input
(Lights)
Input (Key signal -
General purpose ADP)
Dio Unit
DEC102A51
(Option)
Di Unit
DEC101A51
(Option)
System
Set temperature
change command
OFF
command
RS-232C
Air Conditioning Network
Service System modem
for connections
Number of indoor units expanded from 64 to 128.
D -NET
D -NET Plus Adaptor
DCS601A52 (Option)
Indoor Unit
Heat Reclaim
Ventilator
ACC centre
• Air Conditioning Network Service System
(Optional Maintenance Service)
System
Components
Via internet
DCS601C51
System Architecture
