MEAN WELL PWM-60-24KN [4/8] Pwm 60

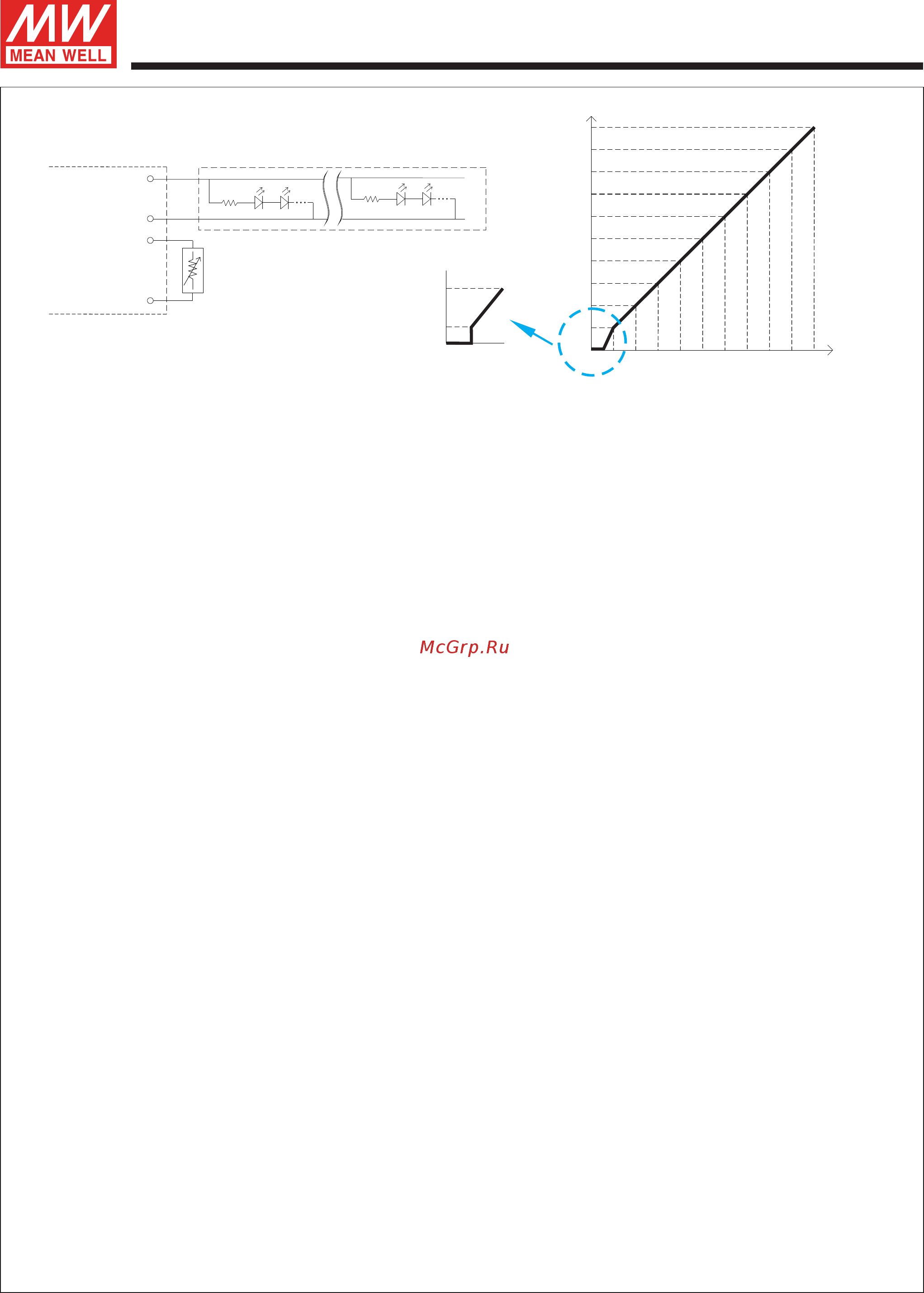

◎ Applying additive resistance:

Vo+

Vo-

DIM+

DIM-

“DO NOT connect "DIM- to Vo-"

Additive Resistance

10%

20%

30%

40%

50%

60%

70%

80%

90%

100%

Short

10K/N

20K/N

30K/N

40K/N

50K/N

60K/N

70K/N

80K/N

90K/N 100K/N

60W PWM Output LED Driver

PWM-60 series

LED Strips

(N=driver quantity forsynchronizeddimmingoperation)

Dimming input: Additive resistance

Note : 1. Min. duty cycle of output current is about 6% and the output current is not defined when 0%< Iout<6%.

2. The duty cycle of output current could drop down to 0% when dimming input is about 0kΩ or 0Vdc, or 10V PWM signal with 0% duty cycle.

Duty cycle of output current (%)

6K/N 10K/N

10%

File Name:PWM-60-SPEC 2019-01-10

‧Apply DALI signal between DA+ and DA-.

‧DALI protocol comprises 16 groups and 64 addresses.

‧First step is fixed at 0.2% of output

※ DALI Interface (primary side; for DA-Type)
