90W PWM Output LED Driver

PWM-90 series

Installation Manual

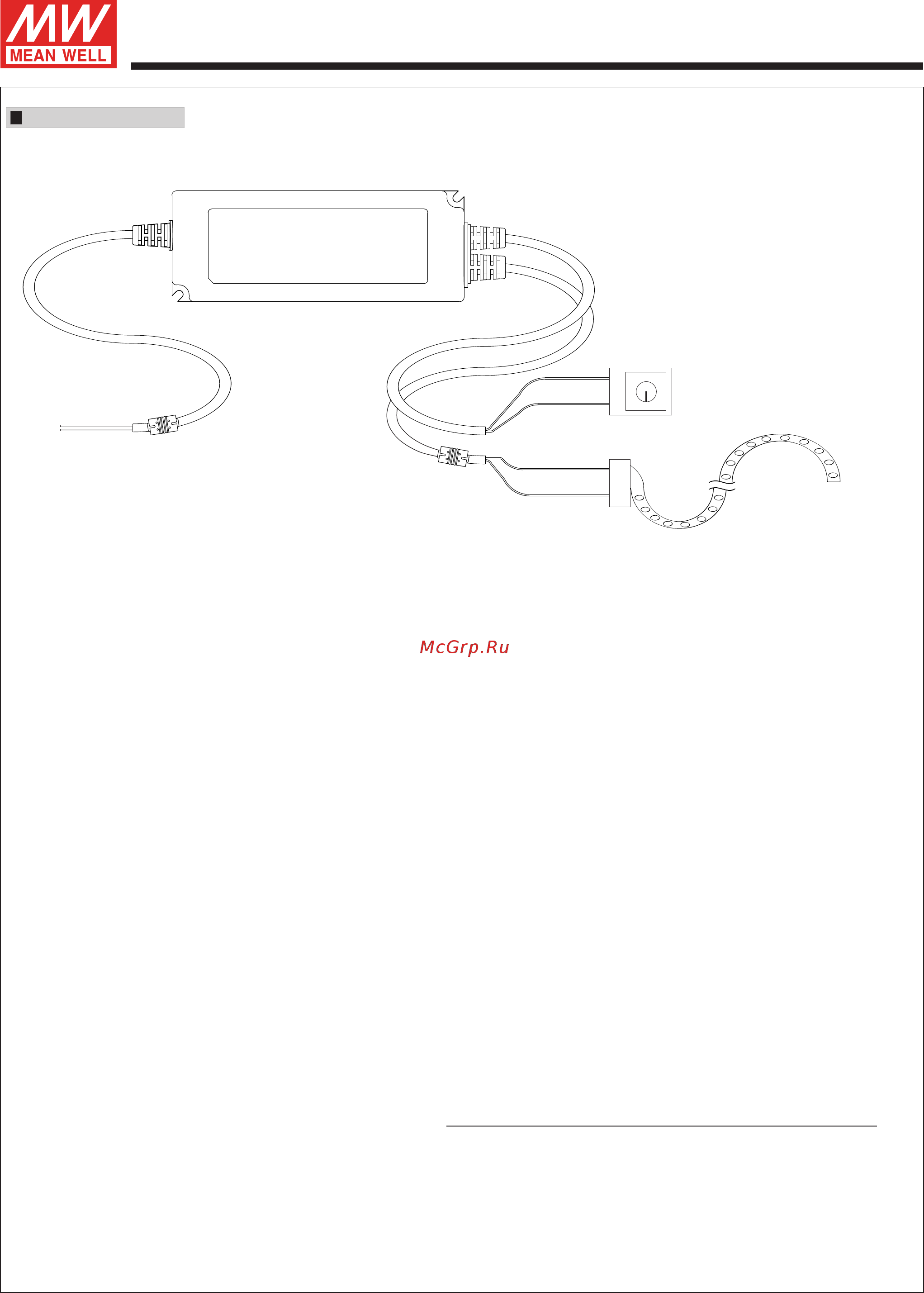

◎Connection for Blank-type

◎Cautions

Before commencing any installation or maintenance work, please disconnect the power supply from the utility. Ensure‧

that it cannot be re-connected inadvertently!

Keep proper ventilation around the unit and do not stack any object on it. Also a 10-15 cm clearance must be kept when ‧

the adjacent device is a heat source.

Mounting orientations other than standard orientation or operate under high ambient temperature may increase the ‧

internal component temperature and will require a de-rating in output current.

Current rating of an approved primary /secondary cable should be greater than or equal to that of the unit. Please refer ‧

to its specification.

For LED drivers with waterproof connectors, verify that the linkage between the unit and the lighting fixture is ‧

tight so that water cannot intrude into the system.

For dimmable LED drivers, make sure that your dimming controller is capable of driving these units.PWM series ‧

require 0.15mA each unit.

Tc max. is identified on the product label. Please make sure that temperature of Tc point will not exceed limit.‧

DO NOT connect "DIM- to Vo-".‧

‧Suitable for indoor use or outdoor use without direct sunlight exposure. Please avoid immerse in the water over 30

minutes.

‧The power supply is considered as a component that will be operated in combination with final equipment. Since EMC

performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC

Directive on the complete installation again.

‧For more information about installation, please refer to www.meanwell.com/webnet/search/installationsearch.html

for details.

AC/L(BROWN)

AC/N(BLUE)

+V(RED)

-V(BLACK)

DIM-(WHITE)

DIM+(BLUE)

LED Strip

0~10Vdc or 10V PWM

or resistance Dimmer

or DALI Dimmer

File Name:PWM-90-SPEC 2019-01-10
