MEAN WELL PWM-90-24DA [4/8] Pwm 90

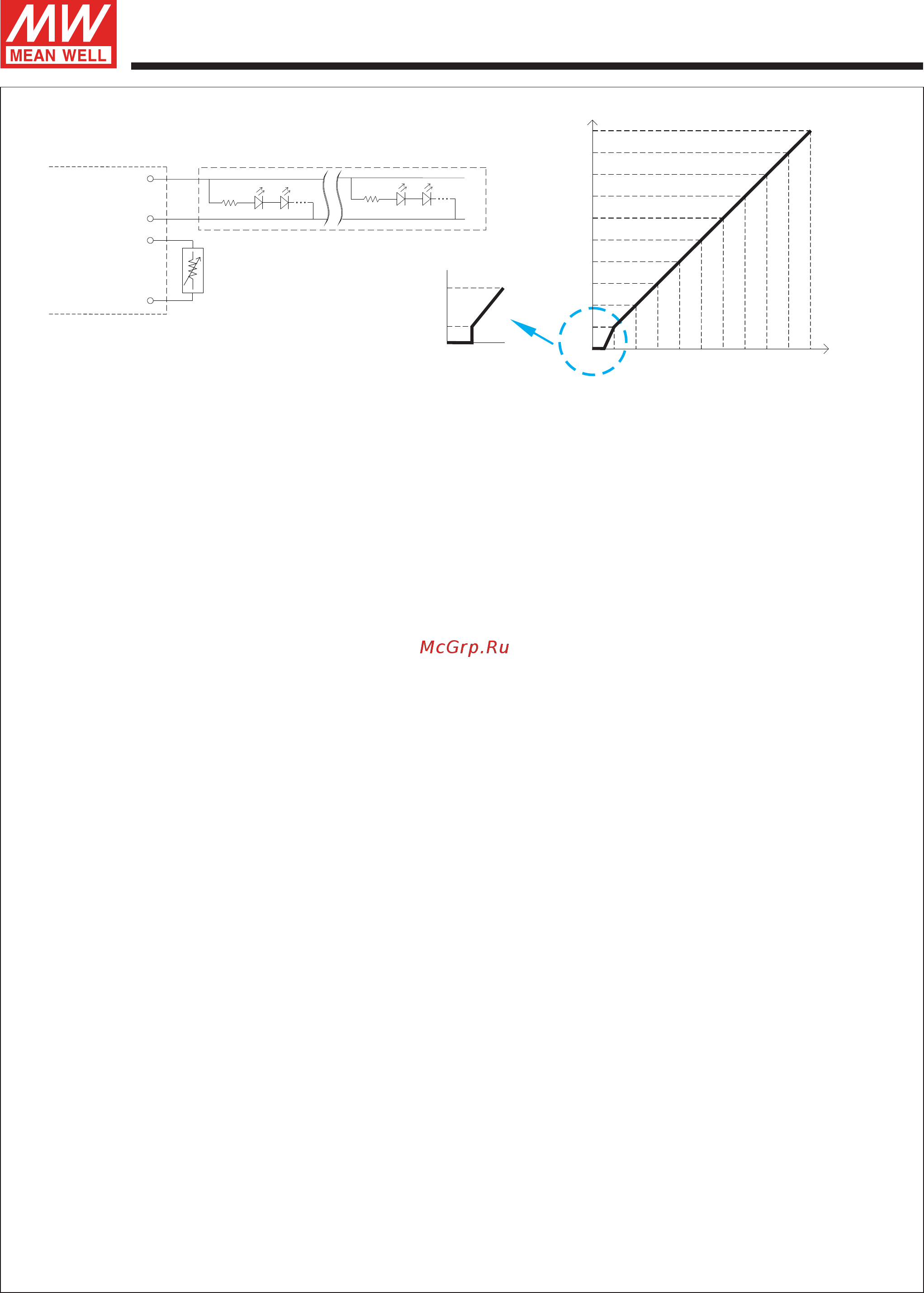

◎ Applying additive resistance:

Vo+

Vo-

DIM+

DIM-

“DO NOT connect "DIM- to Vo-"

Additive Resistance

90W PWM Output LED Driver

PWM-90 series

LED Strips

10%

20%

30%

40%

50%

60%

70%

80%

90%

100%

Short

10K/N

20K/N

30K/N

40K/N

50K/N

60K/N

70K/N

80K/N

90K/N 100K/N

6K/N 10K/N

10%

(N=driver quantity forsynchronizeddimmingoperation)

Dimming input: Additive resistance

Duty cycle of output current (%)

Note : 1. Min. duty cycle of output current is about 0.15%, and the dimming input is about 6KΩ or 0.6VDC, or 10V PWM signal with 6% duty cycle.

2. The duty cycle of output current could drop down to 0% when dimming input is less than 6KΩ or less than 0.6VDC,

or 10V PWM signal with duty cycle less than 6%.

‧Apply DALI signal between DA+ and DA-.

‧DALI protocol comprises 16 groups and 64 addresses.

‧First step is fixed at 0.2% of output

※ DALI Interface (primary side; for DA-Type)
