Содержание
- Capacity 2
- Daikin introduced a new model featuring hfc r 410a refrigerant that could be the perfect step in promoting your corporate image 2
- Hfc r 410a line up for factories and offices hfc r 410a line up for factories and offices 2
- Product line up 2
- We have entered into an era where environmental responsibility has become the utmost important factor to every company 2
- Large airflow type for large spaces flexible interior design for each tenant 3
- Nice cool air in the factory or in the cafeteria 3
- Accessories 4
- Air conditioning 4
- Air cooled packaged air conditioners 4
- Air introduced from the outside and circulated air must be mixed in the air conditioner primary side before introduction into the air conditioner 4
- Circulated air 4
- Enhanced varieties of factory 4
- Flexible design 4
- Floor standing type 4
- Improper to use in temperature near outdoor temperature condensation may occur 4
- Outdoor air introduction 4
- Outdoor air processing mode 4
- Outdoor air processing mode is useable as an outdoor air processing air conditioner only for pair connection 4
- Output 4
- Outside 4
- Outside air conditioning 4
- Wide operation range 4
- Easy installation 5
- Easy to connect with exhaust hood when installed at static pressure 5
- Flexible design and high energy saving 5
- M 165m 5
- Max length 5
- Max level diference 5
- Of fine setting 5
- The building 5
- Vrv iv vrv iv 5
- Indoor unit 6
- Outdoor unit 7
- Outdoor unit 8
- Dimension 9
- Indoor unit 9

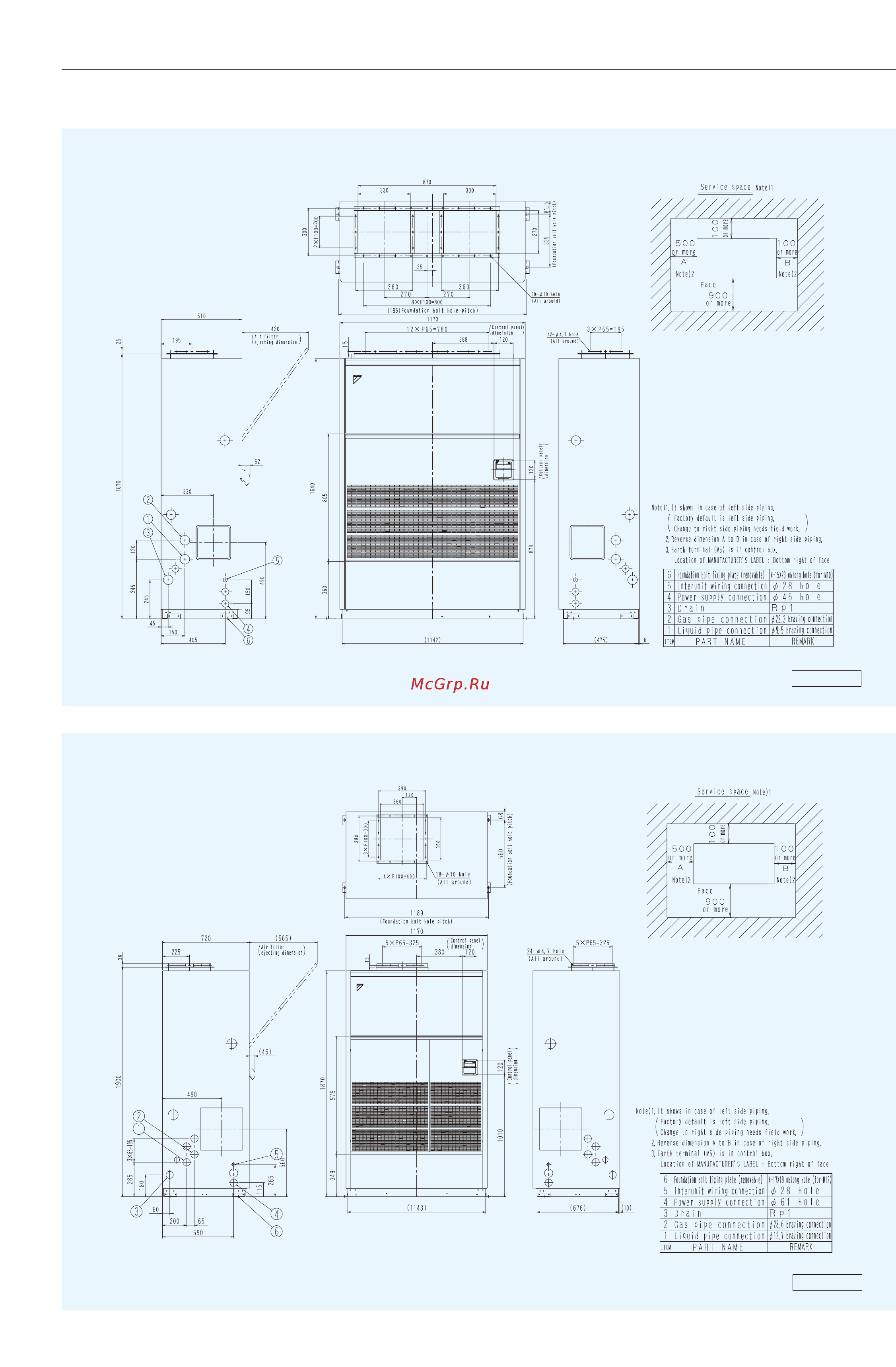

- Dimensions 10
- Indoor unit 10
- Unit mm 10
- Fxvq50 11
- Indoor unit outdoor unit 11
- Dimensions 12
- Outdoor unit 12
- Unit mm 12
- Outdoor unit 13
- Dimensions 14
- Space required for indoor unit installatio 14
- Indoor unit 15
- Outdoor unit 15
- Wiring diagrams 15
- Electric wiring work and initial setting for a2p 16
- Wiring diagrams 16
- Note note the value of resistance includes the resistance of wiring the setting temperature is limited within the setting range of indoor unit if you set the temperature outside of the range by the adaptor it controls at the nearest setting range 17
- Relation between the setting temperature and the resistance are as follows 17
- Setting of control mode selector switch rs1 17
- Temperature setting corresponds to resistance values in the range of 0 to 135 temperature setting corresponds to resistance values in the range of 0 to 135 ω their relationship is as shown below 17
- Temperature setting input 17
- Electric characteristics 18
- Indoor unit outdoor unit 18
- Capacity tables fan performance 19
- Fan performance 19
- Indoor unit 19
- Fan performance 20
- Fxvq200ny1 20
- Fxvq250ny1 20
- Indoor unit 20
- Fxvq400ny1 21
- Fxvq500ny1 21
- Indoor unit 21
- Indoor unit 22
- S ound levels 22
- Accessories 23
- Optional accessories 23
- Remove the group control adaptor which is a standard equipment before mounting krp6a1 and dta104a62 krp6a1 and dta104a62 cannot be mounted to the same indoor unit at the same time 23
- Since the control panel is equipped as standard use the option for 2 remote control system 23
- The pulley and v belt are fileld supply 23
- When ordering a filter chamber for high efficiency filter colorimetric method 65 please order with all the respective parts 23
- When ordering a filter chamber for high efficiency filter colorimetric method 90 please order with all the respective parts 23
- When replacing with a new filter please order the replacement filters with the corresponding filter model name 23
- When using brc1e62 be sure to remove the control panel and since brc1e62 cannot be stored inside the indoor unit please place it separately 23
- Accessories 24
- Dimensions 24
- Kafj261l140 224 280 kafj261m450 560 replacement long life filter 24
- Kafsj9a400 560 ultra long life filter unit 24
- 5 4 4 mass kg 25
- Dimensions 25
- Kd 9a140 25
- Kd 9a140 560 front suction base flange 25
- Kd 9a560 kd 9a400 kd 9a280 kd 9a200 model ite 25
- Kddf 92a140 560 kddf 93a140 560 high efficiency filter chamber 25
- Material 25
- Steel plate painting 25
- Accessories 26
- Dimensions 26
- Kaf 91a140 560 long life filter 26
- Kdgf 9a140 560 suction grille 26
- Dimensions 27
- Kaf 92a140 560 kaf 93a140 560 high efficiency filter 27
- Kpc j plenum chamber 27
- Plenum chamber 27
- Accessories 28
- Kd106d10 kdfj906a560 fresh air intake kit 28
- Kpp5 10ja pulley for plenum chamber 28
- Pulley kit manual 28
- Dimensions 29
- Example 29
- Example of grille mounting 29
- Kd101a10 29
- Kd101a10 20 discharge grille for plenum side 29
- Kdfj905a140 200 280 400 560 rear suction kit 29
- The airflow direction can be adjusted as required 29
- The airflow direction can be set to the left and right of the air conditioner to match the room condition the vertical blade direction can be adjusted to the left or right 29
- 480 1 150 kwf1g8p 85 685 1 450 kwf1g15 30
- 85 480 1 150 730 kkwj9a140 30
- Accessories 30
- Accessories colour shape 30
- Before installation 30
- Bracket type 30
- Dimensions 30
- Dimensions model 30
- Dk black munsell value approximately n 1 30
- Dk black munsell value approximately n 1 onsite assembly western hemlock depending on the materials market status douglas fir may also be used materials 30
- Drain piping is sloped downward to facilitate drain discharge 30
- J d3k0968a 30
- Kafj261l140 30
- Kafj261l140 224 280 kafj261m450 560 30
- Kkwj9a400 480 685 85 930 kwf1g5p 30
- Kkwj9a400 kkwj9a140 model item 30
- Kwf1g15 30
- Kwf1g5p 30
- Kwf1g8p model item 30
- Mass kg 30
- Onsite assembly 30
- Please be sure to read the following before installation and follow the instructions carefully when performing installation work 30
- Replacement long replacement long life life 30
- Shock absorbing rubber t 2mm 30
- Shock absorbing rubber t 2mm 5 mass kg 30
- The air conditioner should be installed so that its weight is distributed evenly on the floor kwf1g5p 8p 15 with shock absorbing rubber easy drain piping 30
- Throug 30
- Through type bracket type 30
- Unit mm 30
- Vibration isolating frame installation manual 30
- Western hemlock depending on the materials market status douglas fir may also be used materials 30
- Dimensions of optional accessories 31
- Fxvq125ny1 31
- Fxvq200ny1 31
- Accessories 33
- Fan characteristics for pulley selection 34
- Fan motor specifications 34
- Fxvq125ny1 326 34
- Fxvq200ny1 325 34
- Fxvq250ny1 330 34
- Fxvq400ny1 245 34
- Fxvq500ny1 232 34
- How to select motor pulley 34
- Lp 2c 1 7 34
- Unit mm 50hz 34
- Following the installation manual remove the front panel and others 35
- In case of fxvq125 200 250n operating procedures 35
- Make adjustments 1 secure the pulley parallelism by adjustment of the motor pulley position and adjustment of fixing nuts a b 2 adjust the fan belt tension with adjustment nut c 35
- Note when the new belt is used adjust the tension to about 1 5 times the deflection load w shown above when the belt has adopted to the pulley after operating about 50 hours adjust the tension to the load shown above even if the adjustments are made on a new belt check the load again as shown on the above table after the belt has adopted with or without replacing the pulley check the deflection load when about 50 hours passed after the test operation after replacing belt or pulley conduct the test operation and check if there is no abnormal noise or vibration 35
- Parallelism criteria k less than 10 arc minutes discrepancies of 3mm per 1m 35
- Perform checks 1 check that the pulley parallelism and the fan belt tension are within the criteria 35
- Pulley and fan belt adjustment 35
- Refer to the jis b 1854 pulley and jis k 6323 v belt for details jis japanese industrial standards 35
- Take measurements 1 measure the parallelism of the fan pulley and motor pulley 2 measure the tension of the fan belt 35
- Tension of v belt tension of a v belt must meet the deflection load w as shown calculate the required deflection length l by the equation 1 its tolerance must be within the range as below 35
- Warning be sure to wait 10 minutes or more after turning off all power supplies before disassembling work 35
- Fan characteristics for pulley selection 36
- In case of fxvq400 500n 36
- Operating procedures 36
- Adjustment nut c adjustment nut b 37
- Fixing bolt a 37
- Make adjustments 1 secure the pulley parallelism by adjustment of the motor pulley position and adjustment of fixing bolt a 2 adjust the fan belt tension by loosening fixing bolt a and using adjustment nut b c 37
- Perform checks 1 check that the pulley parallelism and the fan belt tension are within the criteria 37
- Refer to the jis k 6323 v belt for details jis japanese industrial standards unit mm 37
- V belt size table 37
- Air treatment equipment 38
- Data and notice in using the outdoor air processing mode 38
- A field settings from the indoor unit you need to configure the settings by the control panel of the indoor unit to change the operation mode please configure the settings as shown below after completing test run please also see the installation manual of the indoor unit for the setting method 39
- B field settings from the outdoor unit perform field settings with push button switch bs1 3 on the printed circuit board in the electric component box after finishing check operation set up according to following procedure as to setting method refer to the paragraph of field setting in the installation manual of the outdoor unit as well 39
- Field settings in case of vrv iv be sure to set from both a field settings from the indoor unit and b field settings from the outdoor unit 39
- In case of vrv iii set from a field settings from the indoor unit only 39
- Indoor temperature 33 cdb 28 cwb outdoor temperature 33 cdb equivalent piping length 7 m level difference 0 m 39
- Specification table outdoor air processing mode 39
- The value is the external static pressure with standard pulley 39
- This product is shipped with the airflow set to the standard mode when introducing outdoor air outdoor air processing mode please make sure to adjust the air flow by conducting field settings from the control panel changing the pulley or installing dampers if not adjusting the airflow the airflow would still be set to the standard mode and therefore you might feel cold when heating or feel hot when cooling 39
- Air treatment equipment 40
- Capacity characteristics 40
- Contents 41
- Installation manual 41
- Safety precautions 41
- 1 precaution 42
- 2 accessories 42
- 3 carry out the work giving caution to the following items and after the work is completed check these again 42
- Before installation 42
- Installation manual 42
- Carry in method 43
- Installation site 43
- 1 how to replace pulley 44
- 2 parallelism of pulley 44
- 3 tension of v belt 44
- Caution at installation 44
- Installation manual 44
- Drain piping 46
- Installation manual 46
- 1 remove the front panel lower 47
- 2 external wiring method 47
- Electric wiring 47
- 3 example of wiring 48
- 4 precautions when laying power wiring 48
- Branch switch overcurrent circuit breaker 48
- Branch switch overcurrent circuit breaker never to connect high voltage electricity such as power supply cables 48
- Bs unit 48
- Caution 48
- Control box 48
- Control box pass the attached clamp through the resin clamp and bundle each 48
- Control panel 48
- Do not have low voltage wires wiring between units and other high voltage run through the same locations and there must be min 50 mm distance between wires outside of the unit or it may cause a malfunction or a breakdown of the unit by receiving electrical noise external noise 48
- Earth earth 48
- Earth terminal 48
- Earth terminal for shield wire 48
- English 48
- Ex2 for multiple indoor units 48
- Ex3 for group control 48
- Ex4 when including bs unit 48
- Exerted on the terminal board 48
- F1 f2 f1 f2 48
- F1f2 t1t2 48
- Final indoor unit 48
- Final indoor unit indoor unit b 48
- For wiring use the designated power wire and connect 48
- If stranded wires are used do not solder the front end of the wires do not connect wiring of diferent size to the power terminal block slack in the power wiring may cause abnormal heat when transmission wiring which is the same thickness do 48
- In out 48
- Indoor outdoor 48
- Indoor unit a 48
- Indoor unit b 48
- Installation manual 48
- L n 3 l 2 l 48
- L n 3 l 2 l 1 l n 3 l 2 l 1 l n 3 l 2 l 48
- Never to connect high voltage electricity such as power supply cables 48
- Note 1 it is not necessary to set the indoor unit address for group control the setting is made automatically when the power supply is turned on 2 make sure to disconnect the control panel wiring of the units over the second one 3 in this case all indoor units within the group are controlled by the control panel for the group control 48
- Note use ring type crimp style terminals for connections to the power terminal block install the insulating sleeve for insulation of crimp part when none are available follow the instructions below 48
- Out out 48
- Out out in out 48
- Outdoor unit 48
- P1or p 48
- Pass the attached clamp through the resin clamp and bundle each 48
- Power supply 48
- Power supply control box 48
- Power supply power supply power supply 48
- Prohibited 48
- Terminal block for the wiring between indoor unit and outdoor unit terminal block for power supply wiring 48
- The control panel is the standard built in ex1 when using in pairs 48
- The wiring between indoor unit and bs unit 48
- The wiring between indoor unit and indoor unit 48
- The wiring between indoor unit and outdoor unit 48
- The wiring between outdoor unit and bs unit 48
- Wiring from left side 48
- Wiring from right side 48
- Field setting and control wiring 49
- Installation manual 50
- Trial operation 50
- English 51
- Indoor unit which may result in water splash or leak 51
- Is not completed instruct the user not to operate until the work is completed for protecting the indoor unit 51
- Table 1 51
- Warning 51
- Warning 52
