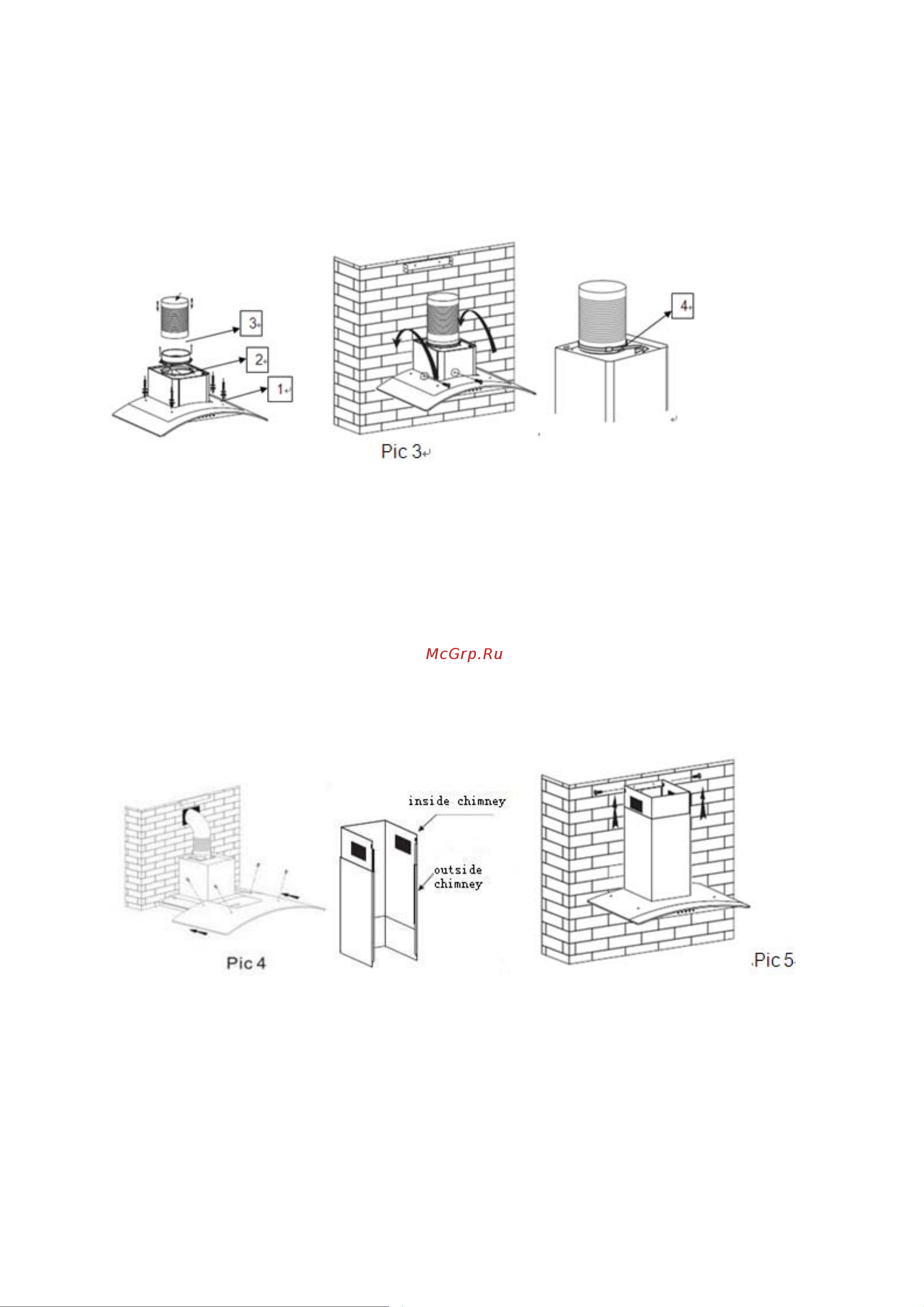

4. Fix the expansion pipe according to the lead direction and way, and then put

the cooker hood on the hook. Lay the expansion pipe to the wall outlet. Fix the

expansion pipe with the cable tie on the wall-outlet if it is aluminium foil

pipe.See pic 3.

5. Put the glass according to the lead direction and way on the cooker hood,

and then use the screws to fix the glass, also lead the expansion pipe outside of

the room, meanwhile adjust the height of the inside chimney to the position of

the inside chimney bracket and fix on it by screw , here should be sure the

inside chimney can be flexed freely. See Pic 4.

6. Put the two chimneys together onto the cooker hood body, meanwhile adjust

the height of the inside chimney into the suitable height, and fix the inside

chimney to the inside chimney bracket by screw. Finally, fix the body with safety

screw. See Pic 5.

Note: The two safety vents are positioned on the back housing, with diameter

of 6mm.
