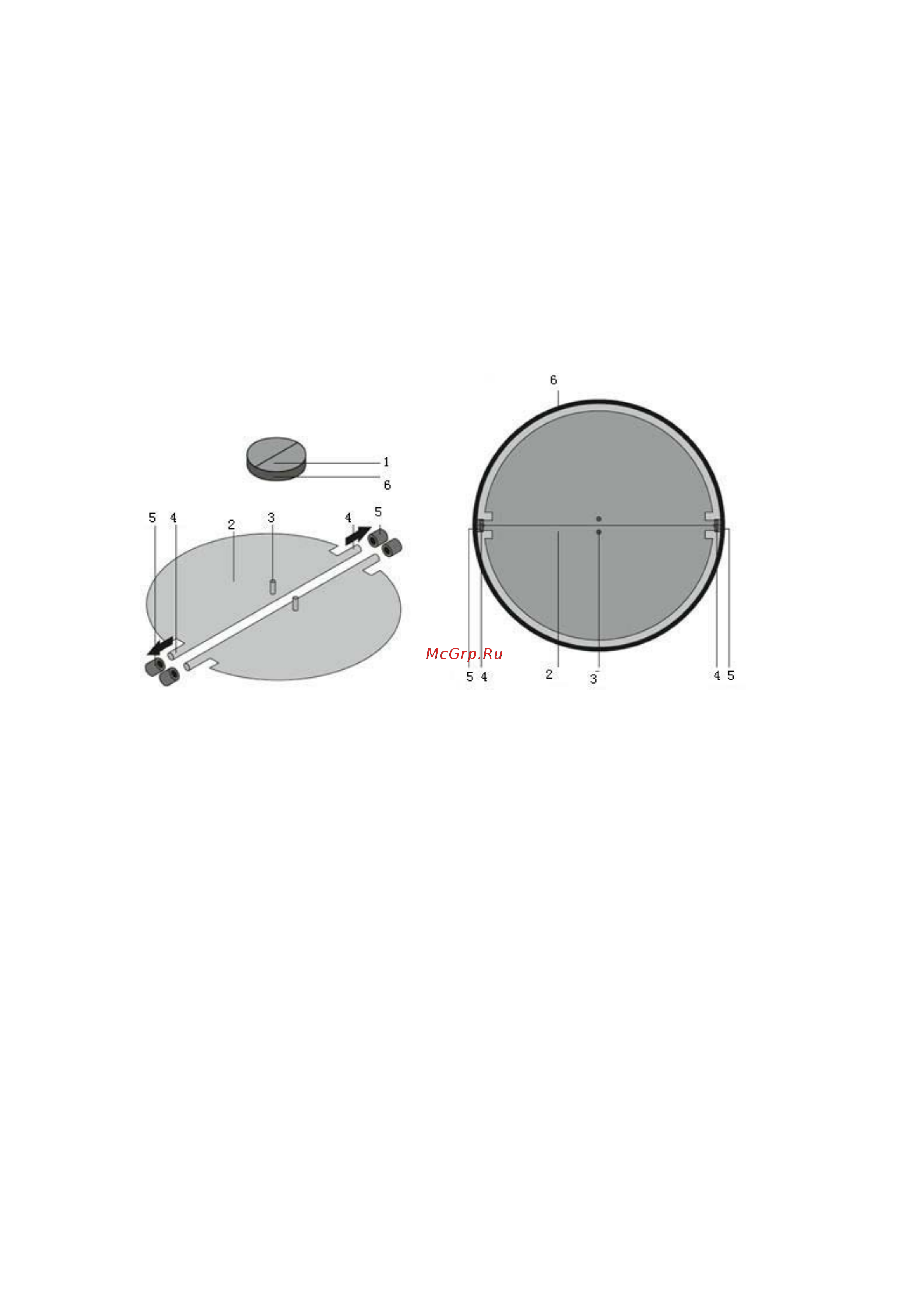

MOUNTING OF THE V-FLAP（Optional）

If the cooker hood does not have an assembled V-flap 1, you should mount the

half-parts to the its body.

To mount the V-flap 1 you should:

• Mount two half-parts 2 into the body 6

• a pin 3 should be top oriented;

• the axis 4 should be inserted in the holes 5 on body;

• repeat all the operations for the 2nd

half-part

HINTS FOR EXHAUST DUCT INSTALLATION

The following rules must be strictly followed to obtain optimal air extraction:

• Keep expansion pipe short and straight.

• Do not reduce the size or restrict expansion pipe.

• When using expansion pipe always install the pipe pulled taut to

minimize pressure loss.

• Failure to observe these basic instructions will reduce the performance

and increase noise levels of the cooker hood.

• Any installation work must be carried out by a qualified electrician or

competent person.

•Do not connect the ducting system of the hood to any existing ventilation

system which is being used for any other appliance ,such as warmer tube,

gas tube , hot wind tube.

•The angle of the bend of the expansion pipe should not be less than 120º;

you must direct the pipe horizontally, or, alternatively, the pipe should go

up from the initial point and should be led to an outer wall.
