SiBE39-402 Troubleshooting by Indication on the Remote Controller
Troubleshooting 153
4.40 “U8” Malfunction of Transmission between Master and
Slave Remote Controllers
Remote
Controller
Display
U8
Applicable
Models
AII indoor unit models
Method of
Malfunction
Detection
In case of controlling with 2-remote controller, check the system using microcomputer if signal
transmission between indoor unit and remote controller (main and sub) is normal.
Malfunction
Decision
Conditions
Normal transmission does not continue for specified period.
Supposed
Causes
! Malfunction of transmission between main and sub remote controller
! Connection between sub remote controllers
! Defect of remote controller PC board

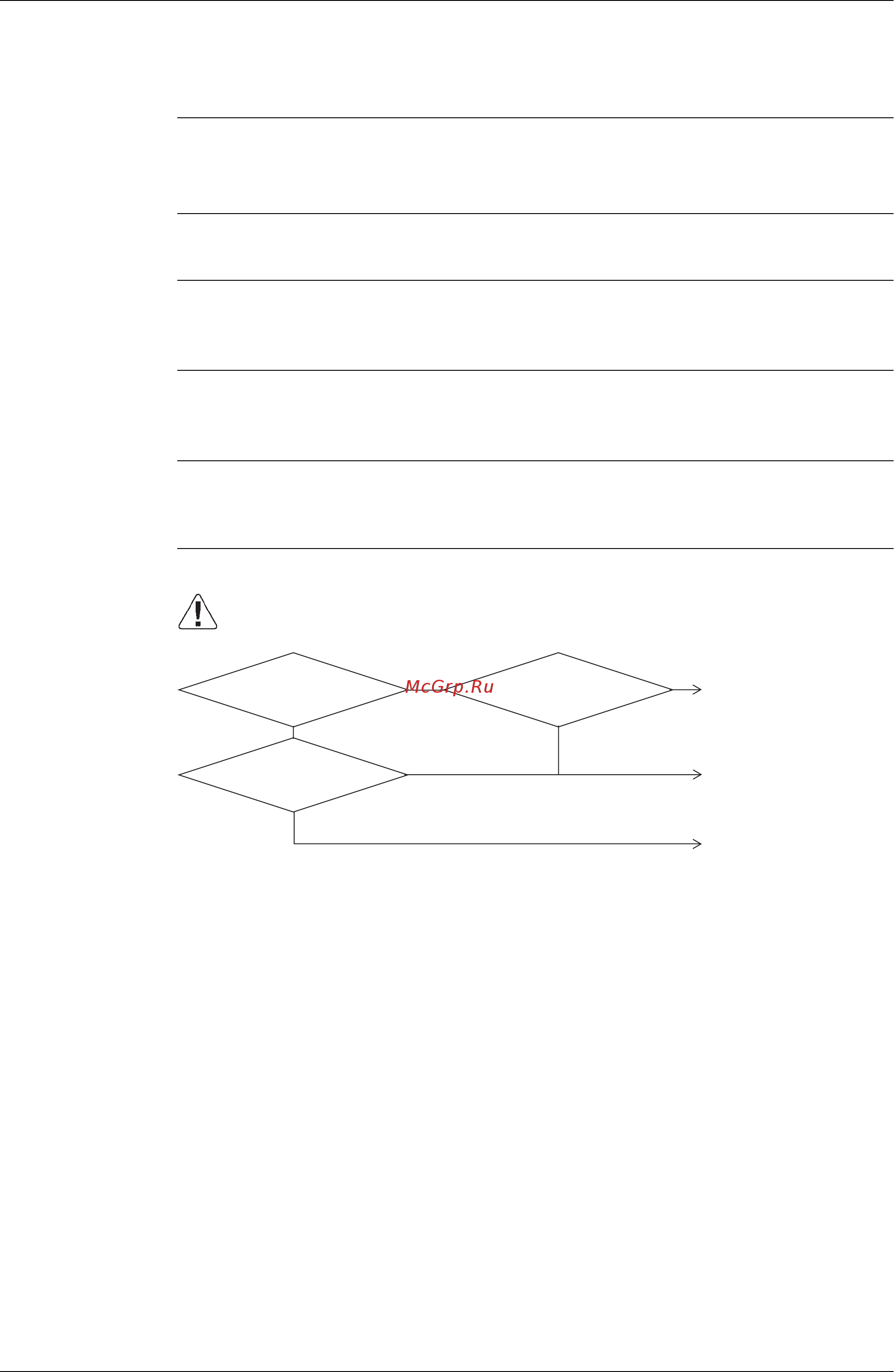

Troubleshooting
Caution
Be sure to turn off power switch before connect or disconnect connector,
or parts damage may be occurred.
(V2825)
SS1 of both remote
controllers is set to
"SUB."
Set SS1 to "MAIN"; the
power supply off once and
then back on.
Set one remote controller to
"MAIN"; the power supply off
once and then back on.
Turn the power off and then
back on. If a malfunction
occurs, replace the remote
controller PC board.
YES
YES
YES
NO
NO
NO
Using 2-remote
controllers control.
SS1 of remote
controller PC boards is
set to "MAIN."
