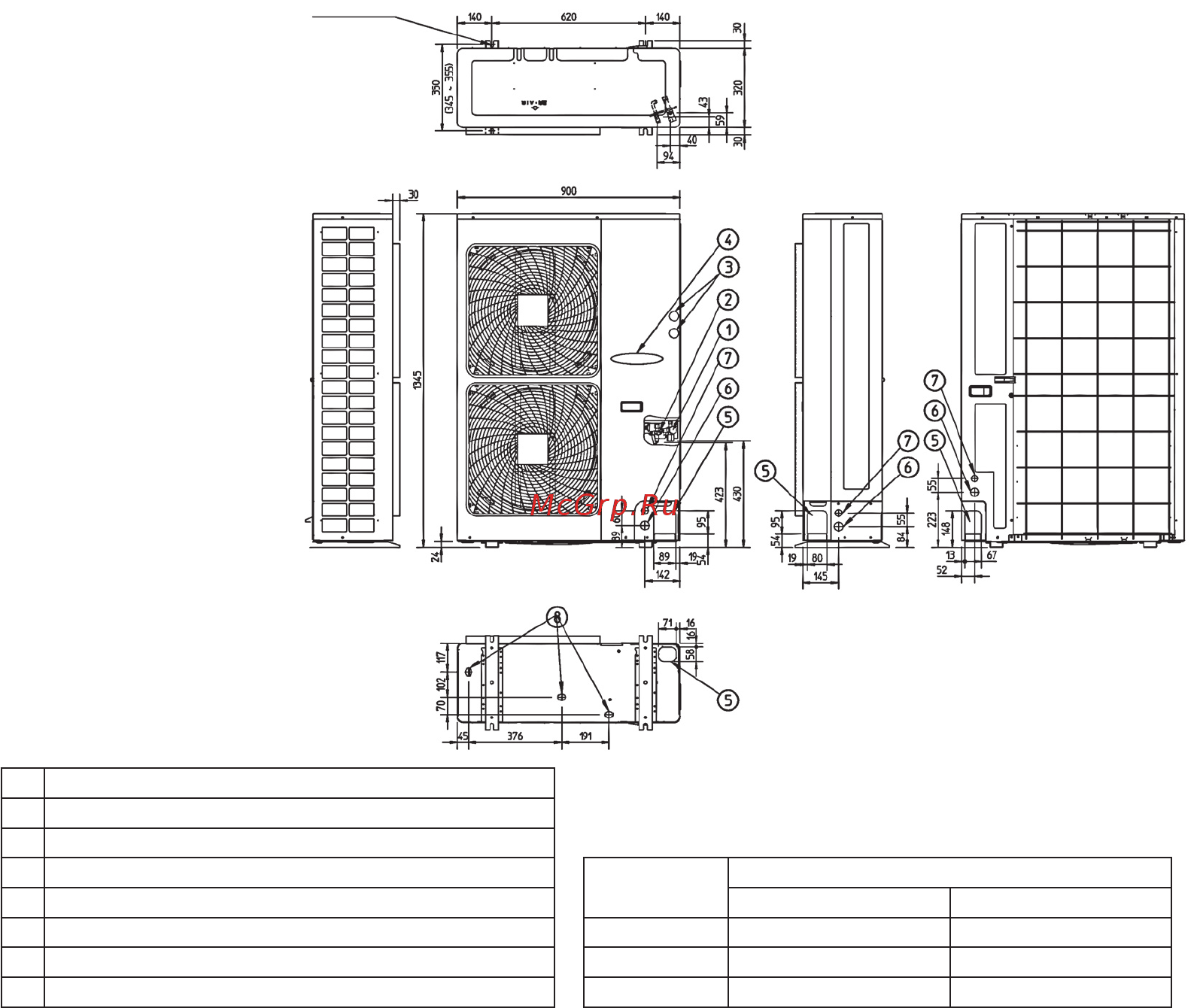

RXYSQ-P8V1

Hole for anchor

bolt 4-M12

1 Gas pipe connection A

2 Liquid connection pipe Ø9.5 ﬂ are

3 Service port (in the unit) (2x)

4 Electronic connection and grounding terminal M5 (in switch box)

5 Refrigerant piping intake

6 Power supply wiring intake (knock hole Ø34)

7 Control wiring intake (knock hole Ø27)

8 Drain outlet

MODEL

With RA connection With VRV correction

RXYSQ4P8V1 Ø19.1 Brazing Ø15.9 Flare

RXYSQ5P8V1 Ø19.1 Brazing Ø15.9 Flare

RXYSQ6P8V1 Ø19.1 Brazing Ø19.1 Brazing

3TW30374-1B
