Daikin RXYQ18MY1B [3/42] Introduction

• Introduction

• Systems • Introduction

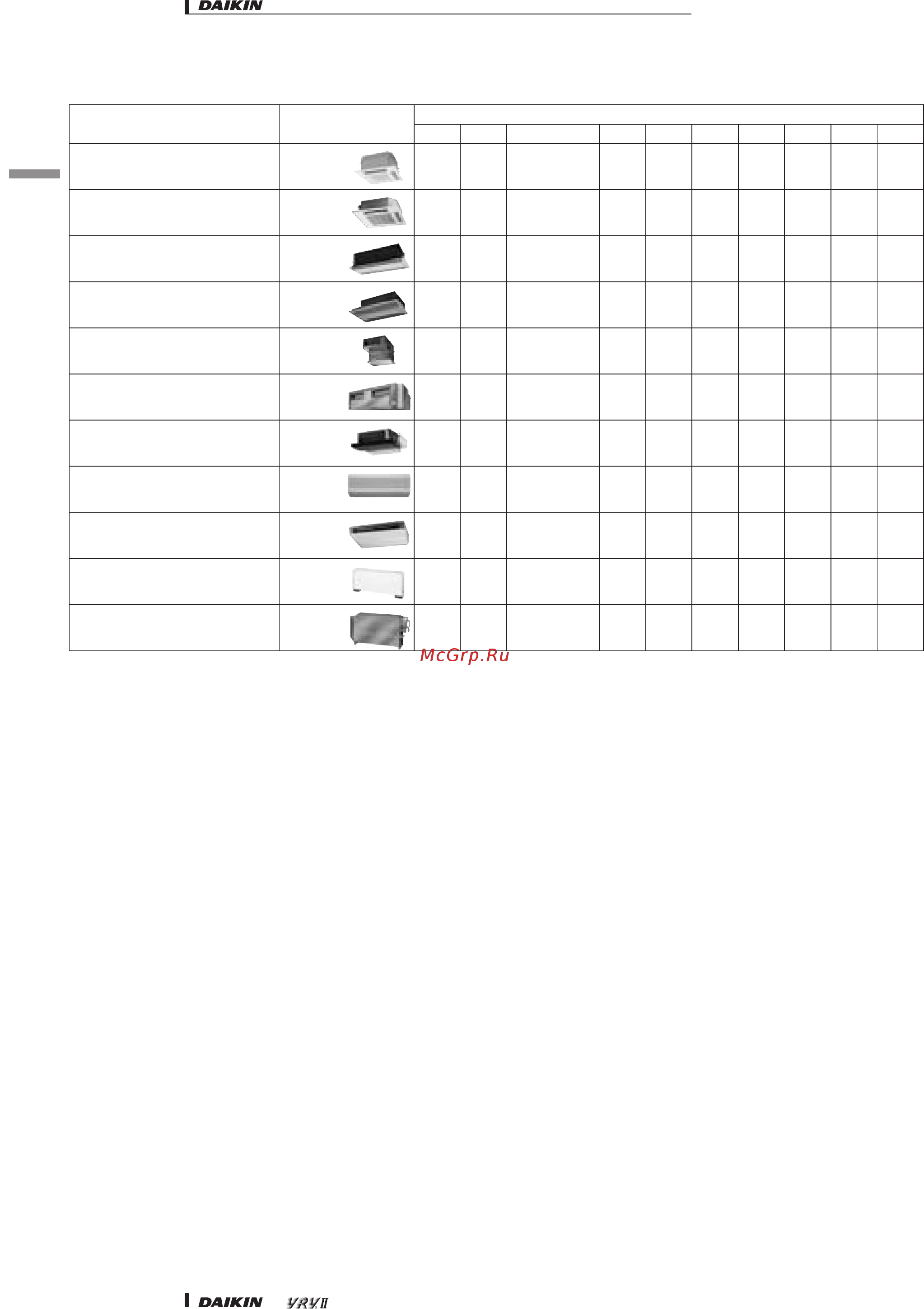

1 Possible indoor units using R-410A

Description Indoor unit

Size

20 25 32 40 50 63 80 100 125 200 250

4-way blow ceiling mounted cassette (600 mm x 600 mm) FXZQ-MVE xxxxx

4-way blow ceiling mounted cassette FXFQ-M7V1B xxxxxxxxx

2-way blow ceiling mounted cassette FXCQ-M7V1B xxxxxxx x

Ceiling mounted corner cassette FXKQ-MVE x x x x

Concealed ceiling unit FXSQ-M7V1B xxxxxxxxx

Concealed ceiling unit (large) FXMQ-MVE xxxxxxxx

Concealed ceiling unit (small) FXDQ-M7V1B x x

Wall mounted unit FXAQ-MVE xxxxxx

Ceiling suspended unit FXHQ-MVE x x x

Floor standing unit FXLQ-MVE xxxxxx

Concealed floor standing unit FXNQ-MVE xxxxxx
