5. Congure IP address

The WGS3 Layer 3 Switch is shipped with default IP address as following.

IP Address : 192.168.1.254

Subnet Mask : 255.255.255.0

To check the current IP address or modify a new IP address for the Switch, please

use the procedures as follow:

 Show the current IP address

1. On “Routing>” prompt, enter “show network”.

2. The screen displays the current IP address, Subnet Mask and Gateway. As show

in Figure 5-1.

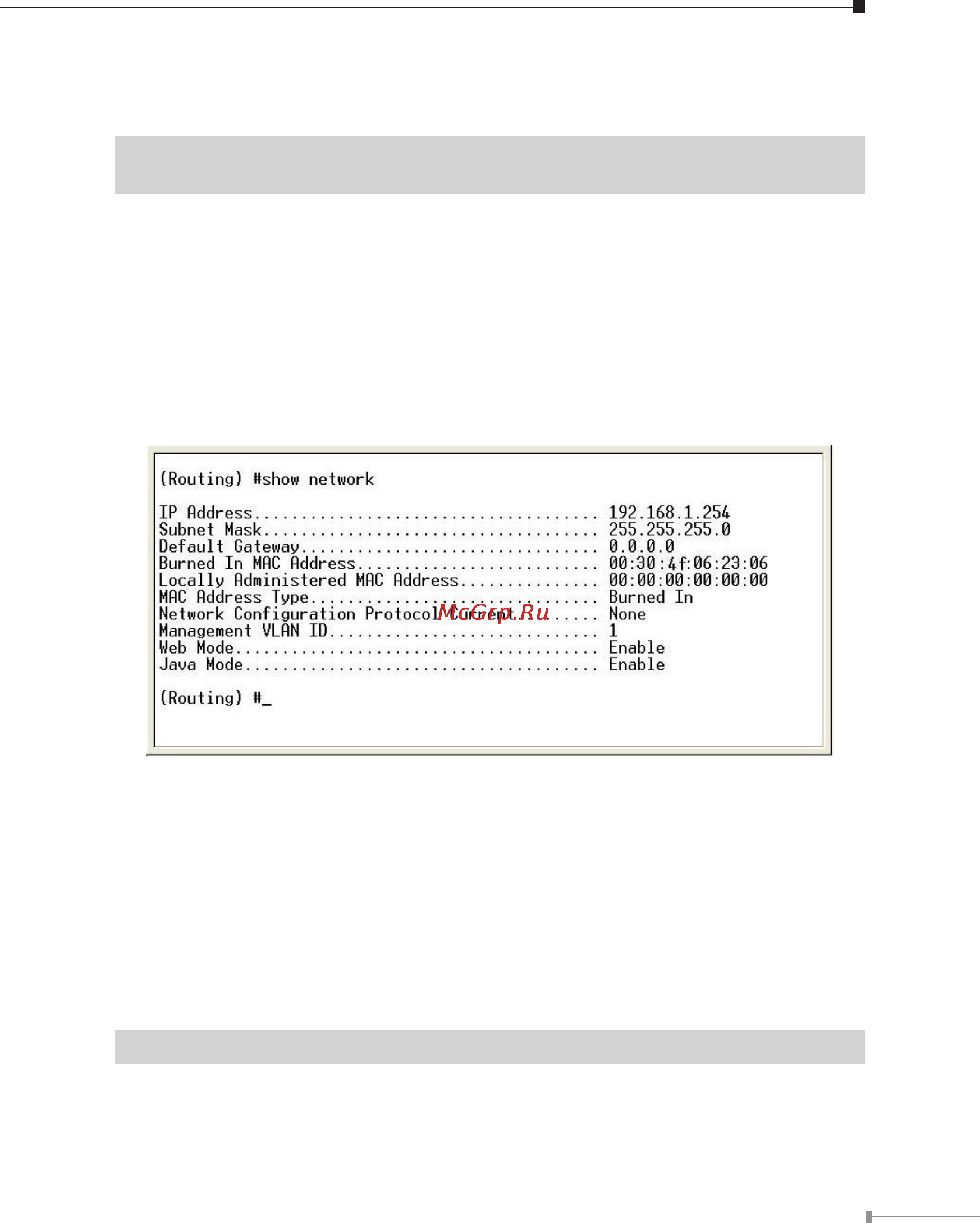

Figure 5-1 Show IP information screen

 Congure IP address

3. On “Routing>” prompt, type “enable” to enter the Privileged Exec Mode.

4. A Password required message prompt. For the rst time login, press Enter button.

(With the default setting, the enable password is empty.)

5. On “Routing#” prompt, enter the following command and press <Enter>. As

show in Figure 5-2.

Routing # network parms 192.168.1.100 255.255.255.0

The previous command would apply the follow settings for the Switch.
