Biostar Hi-Fi B150S1 Версия 6.x [6/33] Motherboard layout

6 | Chapter 1: Introducon

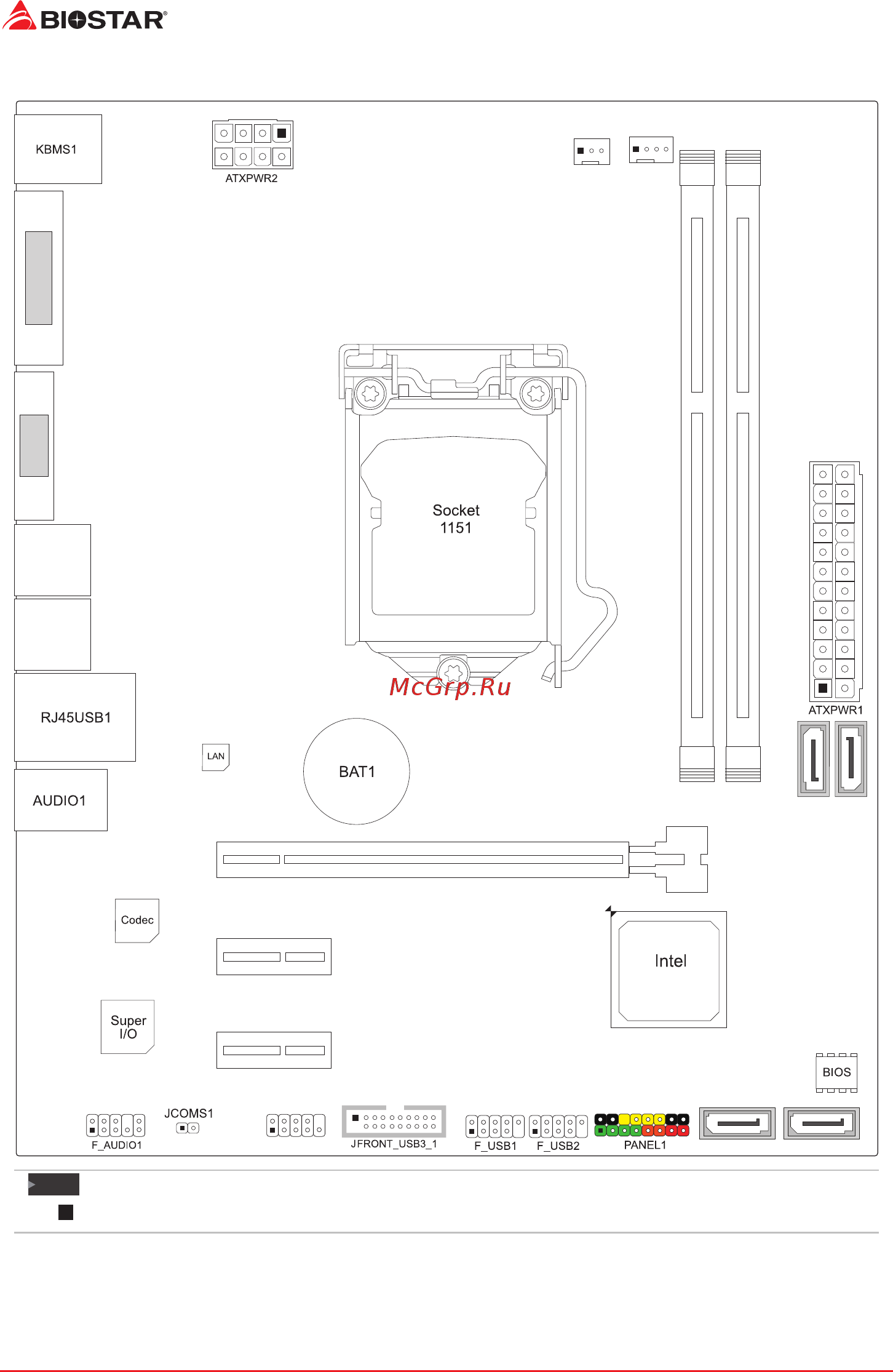

1.5 Motherboard Layout

B150/H110

DDR3_A1

DDR3_B1

SATA3_1

SATA3_2

SATA3_3 SATA3_4

DVI-D

VGA

PEX1_1

PEX1_2

PEX16_1

CPU_FAN1

SYS_FAN1

COM

USB3_2

USB3_1

Note

 representsthe1stpin.
