Biostar Hi-Fi B150S5 Версия 6.x [6/33] Motherboard layout

6 | Chapter 1: Introducon

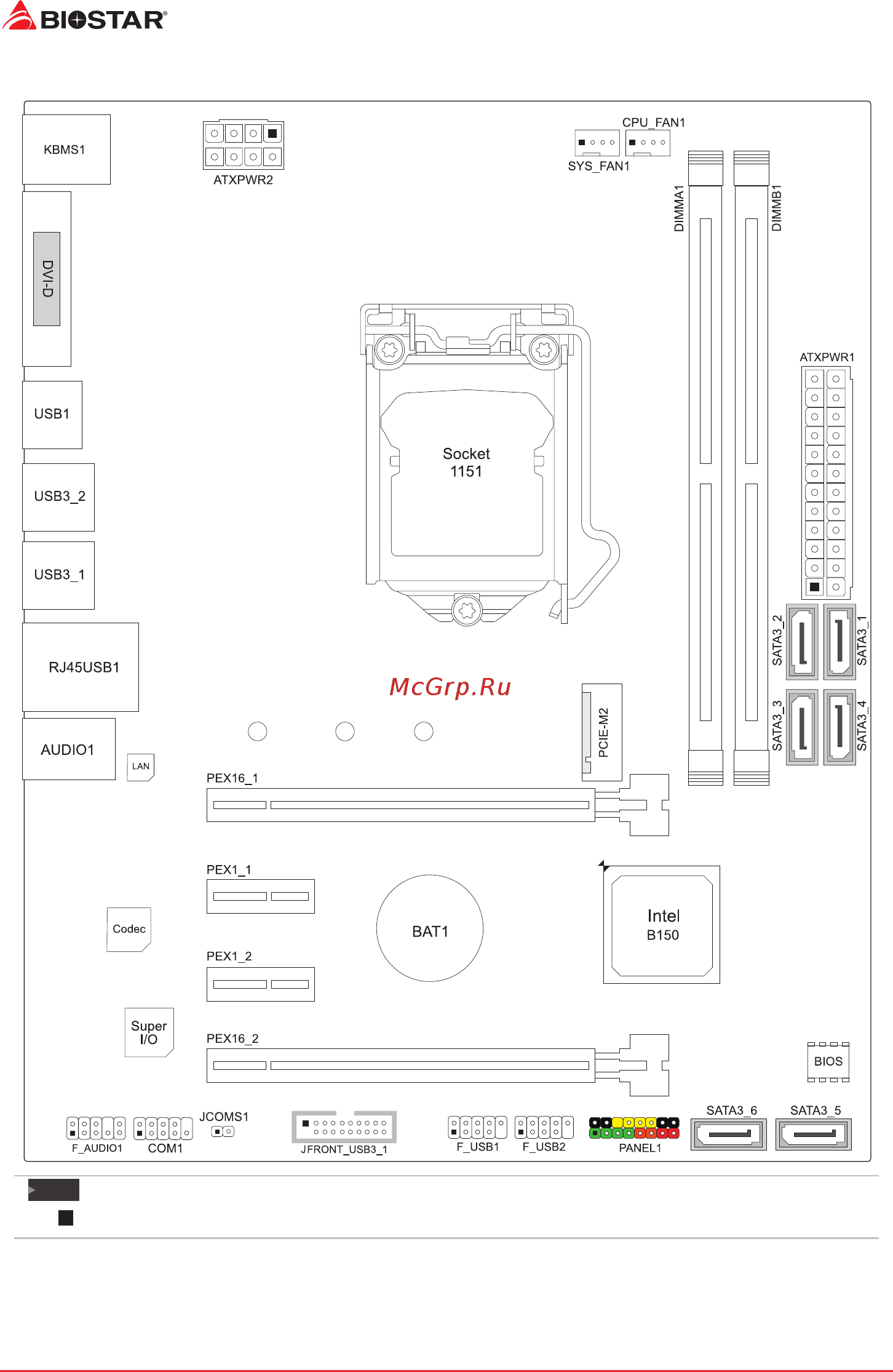

1.5 Motherboard Layout

Note

 representsthe1stpin.
