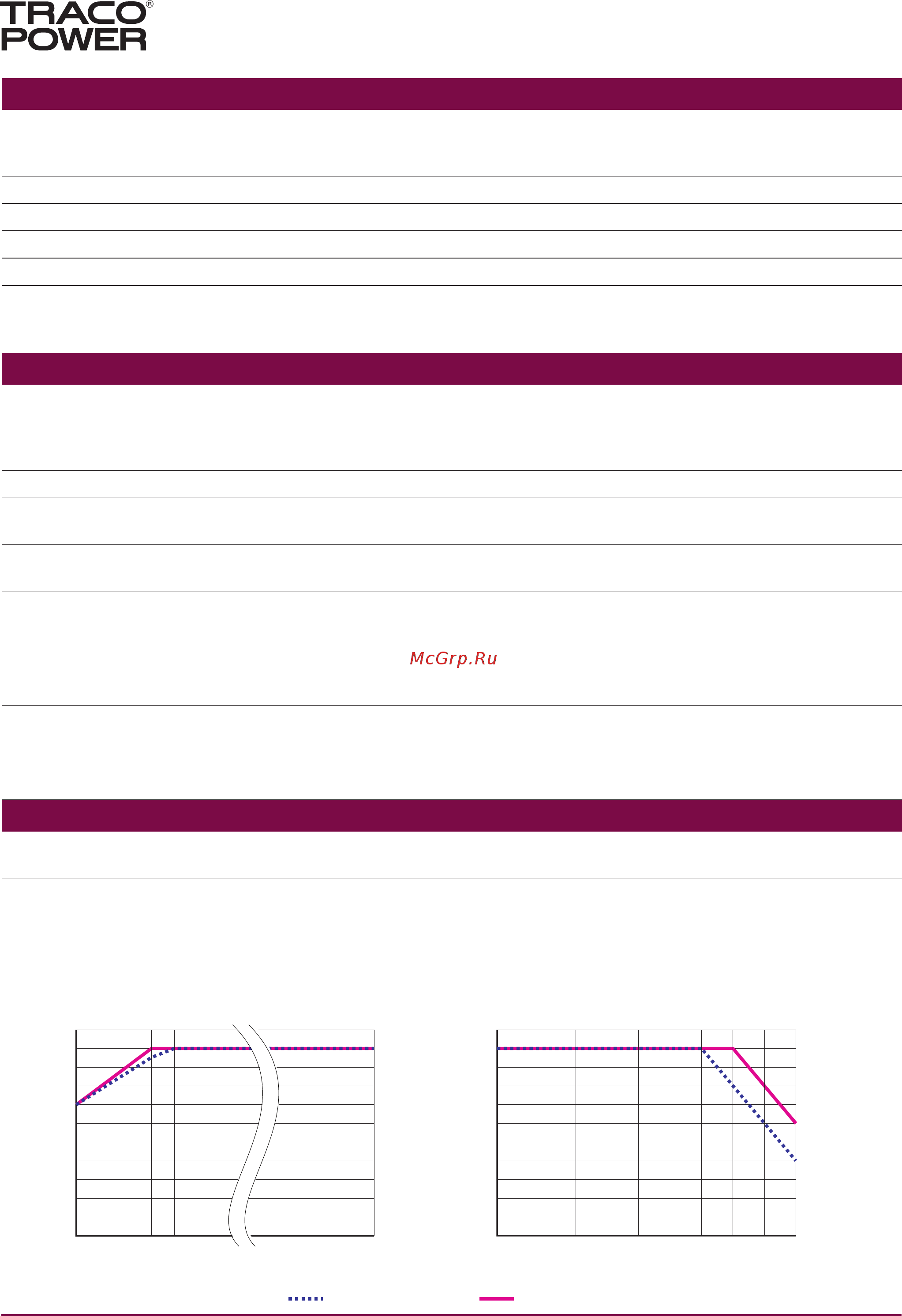

www.tracopower.com Page 2 of 4
AC/DC Power Supplies
TOP-200 Series 200 Watt
Input Specifications
Input voltage – nominal 120 – 240 VAC (universal input)
– AC input range 85 – 264 VAC with derating at low input
see power derating graph 1
Input frequency 47 – 63 Hz
Harmonic limits EN 61000-3-2, class A
Zero load power consumption 3.6 W
Input protection T4 A internal fuses (line and neutral)
Recommended circuit breaker 6 A (characteristic C) or slow blow fuse.
For protection class II use two fuses
(line and neutral)
Output Specifications
Voltage set accuracy TO P 2 0 0 -112 : min. 11.9 V, max. 12.3 V
TO P 2 0 0 -115 : min. 14.9 V, max. 15.3 V
TO P 200 -124: min. 23.8 V, max. 24.2 V
TOP 200 -148: min. 48.0 V, max. 49.3 V
Regulation – Input and Load variation 1.0 % max.
Ripple and noise (20Mhz Bandwidth) <120 mVp-p
<150 mVp-p for 48 VDC models
Overvoltage protection 12 & 15 VDC models: >150 % of Vout
24 & 48 VDC models: >125 % of Vout
Power back immunity 12 VDC model: 16 V (18 V for 1 sec.)
15 VDC model: 20 V (23 V for 1 sec.)
24 VDC model: 35 V (40 V for 1 sec.)
48 VDC model: 63 V (68 V for 1 sec.)
Overload protection by current limit at 120 – 150 % Iout max.
Short circuit protection foldback (automatic recovery)
Capacitive load 12 & 15 VDC models: 15’000 µF max.
24 VDC model: 4’000 µF max.
48 VDC model: 1’000 µF max.
General Specifications
Operating temperature –25°C to +70°C (convection cooling)
– derating see power derating graph 2
200
160
120
80
40
0
Output Power [W]
Ambient Temperature [°C]
108 115 264
200
160
120
80
40
0
Output Power [W]
Input voltage [VAC]
Graph 1:
In respect to input voltage
Graph 2:
in respect to ambient temperature
12 & 15 VDC models 24 & 48 VDC models
85 0204
06070
-25
Power derating
