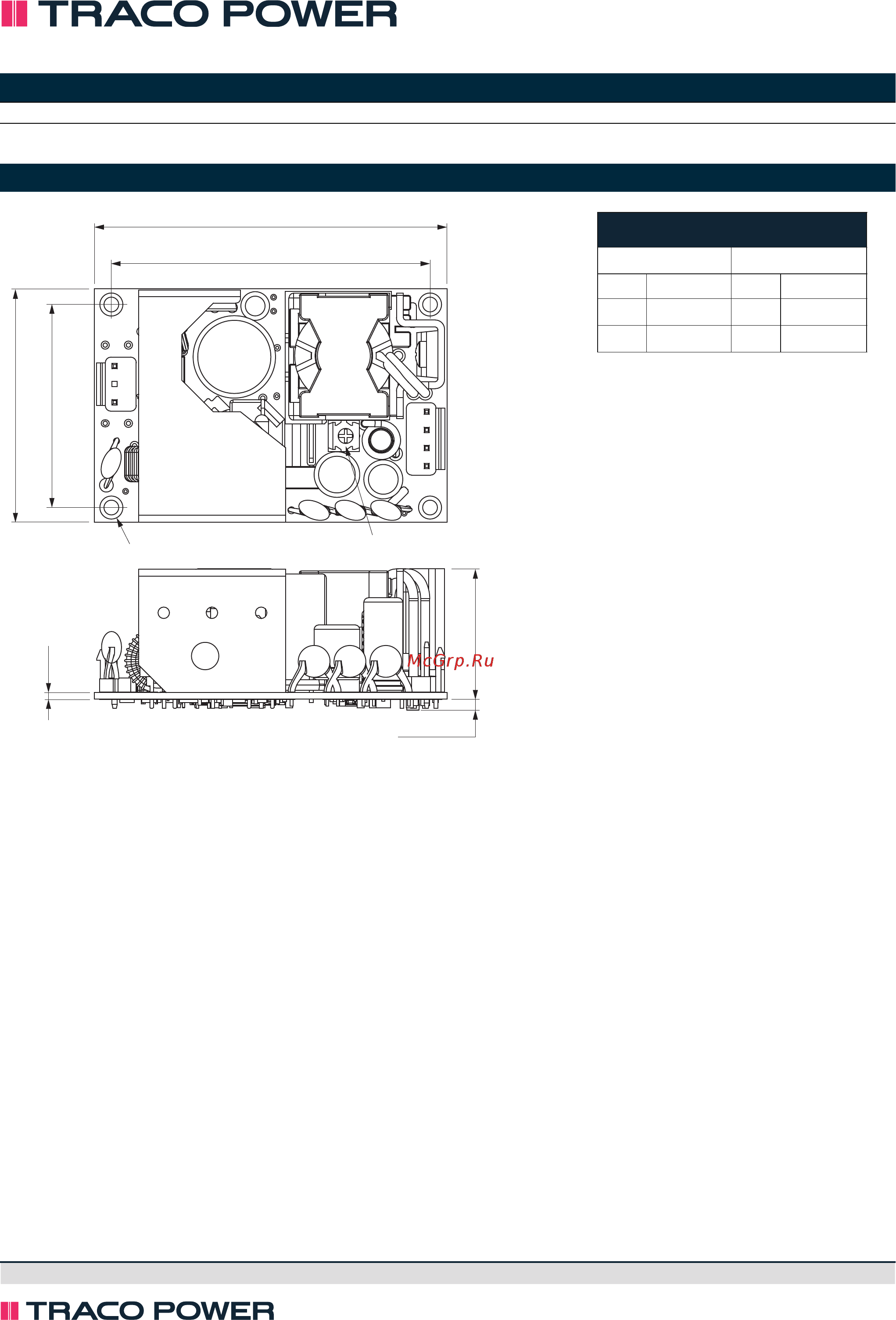

Outline Dimensions
TPI 125A-J Series, 125 Watt
1.6
(0.06)
77.2
(3.04)
69.8
(2.748)
51.1
(2.01)
44.45
(1.750)
CON1
1
Ø3.2
(Ø0.13) Voltage adj.
3
CON2
4
1
FRONT VIEW
2.5 max.
(0.10 max.)
29.5
(1.16)
Dimensions in mm (inch)
Tolerances: x.x ±0.5 (x.xx ±0.02)
Tolerances: x.xx±0.25 (x.xxx ±0.01)
Screw lock torque: Max. 0.49 Nm (5 kgfcm)
Pin connectors
Input (CON1) Output (CON2)
Pin Function Pin Function
1
Line
1-2*
–Vout
3
Neutral
3-4*
+Vout
Terminal rated for 10 A max. per pin.
CON1: JST series
mates with JST crimp terminal: SVH-21T-P1.1
and terminal housing: VHR-3N
CON2: JST series
mates with JST crimp terminal: SVH-21T-P1.1
and terminal housing: VHR-4N
© Copyright 2020 Traco Electronic AG Specifications can be changed without notice.
www.tracopower.com
Rev. February 4, 2021
Page 4 / 4
