Environmental Compliance
- Reach
www.tracopower.com/info/reach-declaration.pdf
- RoHS
www.tracopower.com/info/rohs-declaration.pdf
Supporting Documents
Overview Link (for additional Documents)
www.tracopower.com/overview/tpp150

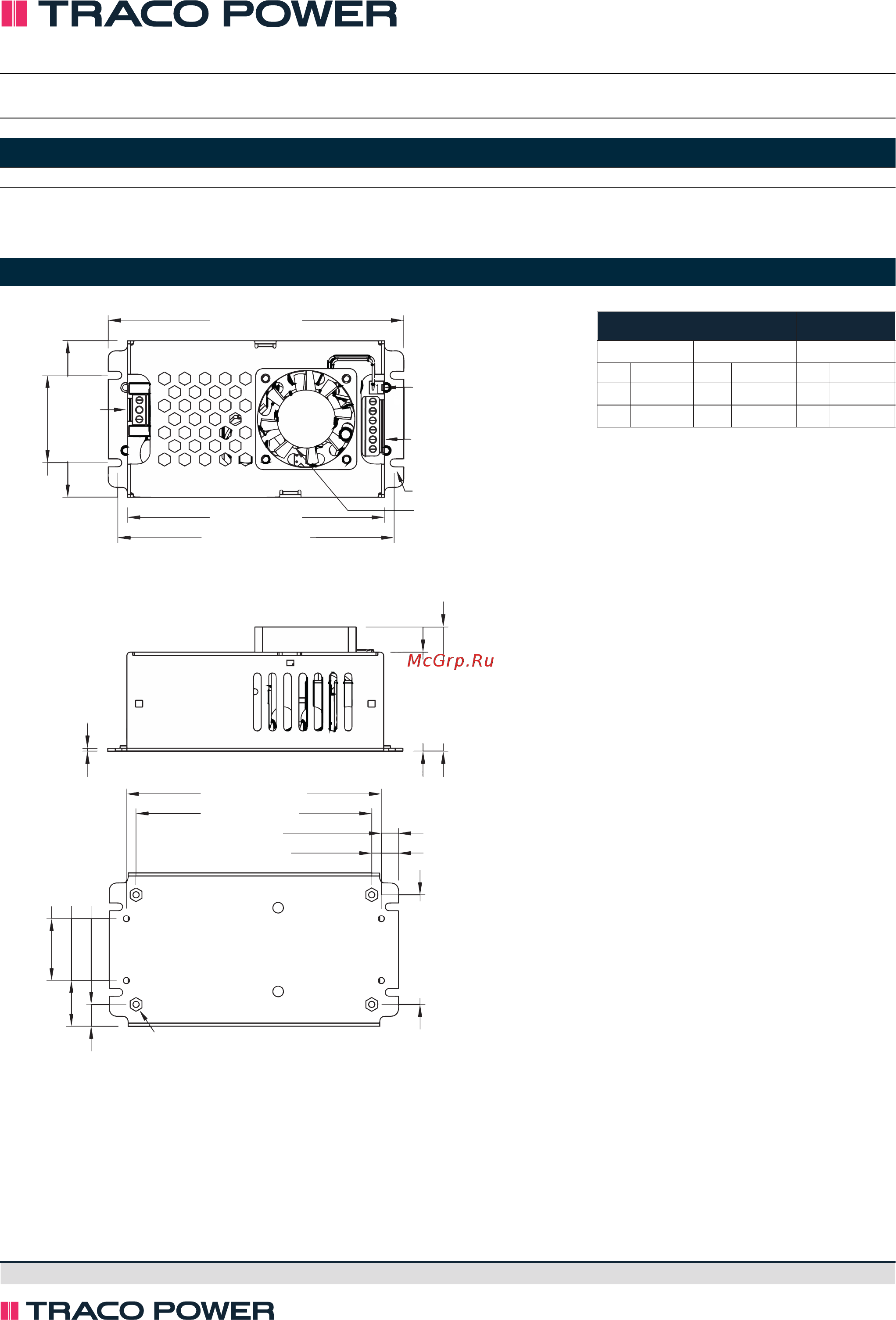

Outline Dimensions
TPP 150 Series, 150 Watt
116.8 (4.60)
101.6 (4.00)
109.22 (4.300)
M3x0.5 holes
CON2 CON3
34.72 (1.367)
62.0 (2.44)
CON1
1
3
1
6
1.2 (0.05)
39.2 (1.54)
49.2 (1.94)
103.00 (4.055)
95.20 (3.748)
6.9 (0.27)
10.8 (0.43)
44.45 (1.750)
25.00 (0.984)
18.5 (0.73)
8.8 (0.35)
M3 screws
Trim potentiometer
(under the fan)
Dimension in mm, () = inch
Tolerances: x.x ±0.50 (±0.02)
x.xx ±0.25 (±0.01)
The fan‘s durability is lower compared to the
power supply and has only 2 years warranty.
Each one of the 4 screw holes can be used
as a PE connection for CLASS I application.
CON1: Terminal Block
mates with Screw locked torque MA X 2Kgf.cm/0.2N.m
Wire dimension range: 26 - 16 AWG
CON2: Terminal Block
mates with Screw locked torque MA X 2Kgf.cm/0.2N.m
Wire dimension range: 26 - 16 AWG
CON3: Molex series
mates with Molex crimp terminals: 2759
and Molex housing: 22-01-1022
Terminal Block Molex
Input (CON1) Output (CON2) Fan (CON3)
Pin Function Pin* Function Pin Function
1
Line
1-3
–Vout 1 –Fan
3
Neutral
4-6
+Vout 2 +Fan
*Terminal rated for 7 A max.
(at higher current connection has to be split)
© Copyright 2019 Traco Electronic AG Specifications can be changed without notice.
www.tracopower.com
Rev. January 9, 2020
Page 4 / 4
