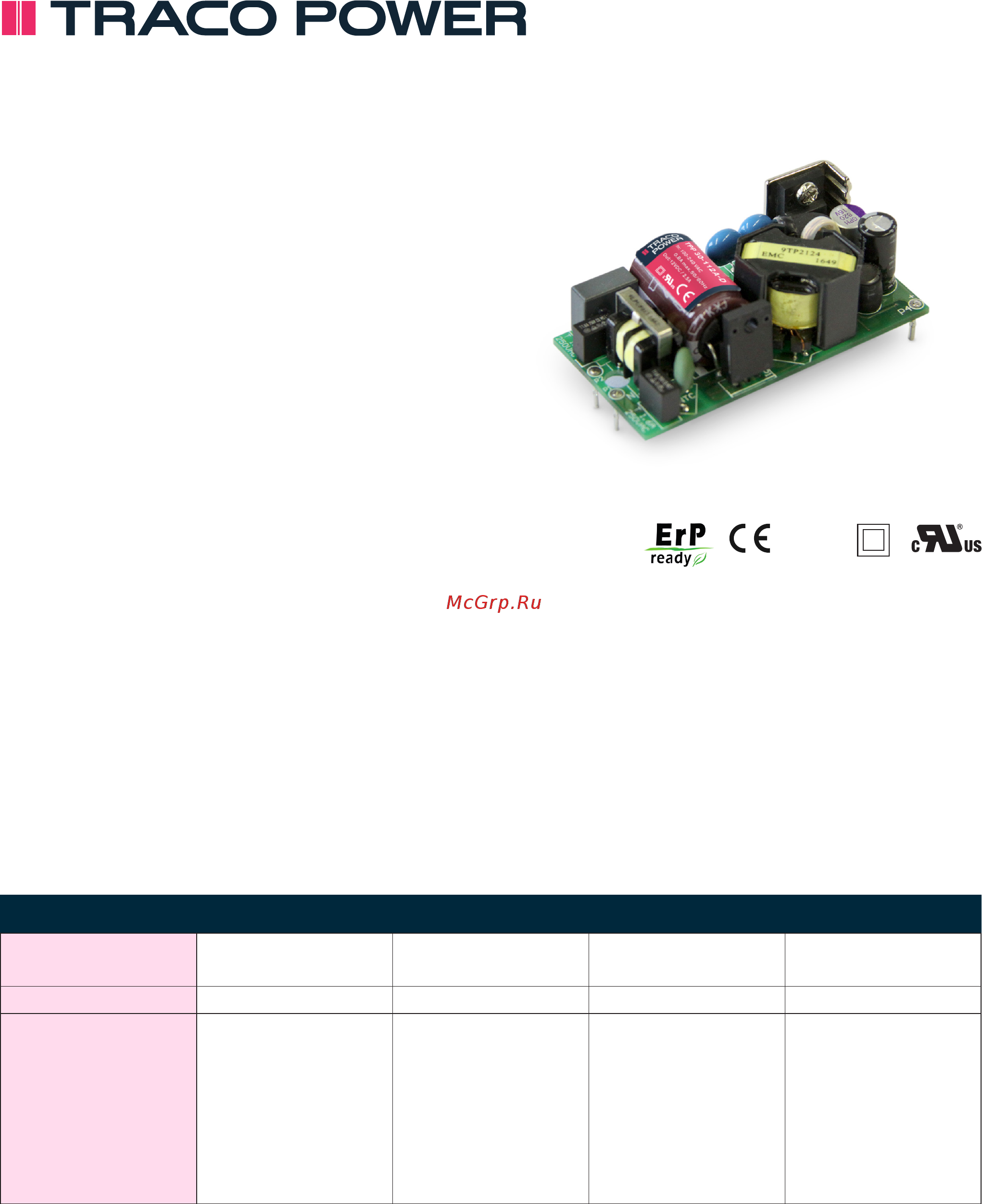

AC/DC Medical Power Supply TPP 30A-D Series, 30 Watt

Models

• High power density power supply

(open frame)

• Certiﬁcation according to IEC/EN/ES

60601-1 3rd edition for 2xMOPP

• Low leakage current <100 µA rated for

BF applications

• EMC emission and immunity to

IEC 60601-1-2 4th edition

• Risk management process according to

ISO 14971 including risk management ﬁle

• Acceptance criteria for electronic assem-

blies according to IPC-A-610 Level 3

• Protection class l and ll

• Operating up to 5000m altitude

• Ready to meet ErP directive,

no load power consumption

• 5 year product warranty

The TPP 30A-D AC/DC power supplies feature a reinforced double I/O isolation

system according to medical safety standards IEC/EN/ES 60601-1 3rd edition

for 2  MOPP approved for an operating altitude of 5000 m. The earth leakage

current is below 100 µA what makes the units suitable for BF (body ﬂoating) ap-

plications. The excellent efﬁciency of up to 91.5% offers a high power density

in the packaging format 1.36” x 2.74”. The full load operating temperature range

covers –40°C to +60°C while it goes up to 85°C with 50% load derating. The

units operate in compliance to the medical EMC emission and immunity levels

according to latest standard IEC 60601-1-2 4th edition.

prepared

C B

Scheme

ES 60601-1

U L 6 0 950 -1

Order Code Output Power

(max.)

Output Voltage Output Current

(max.)

Efﬁciency

(typ.)

TPP 30-103A-D 20 W 3.3 VDC 6‘000 mA 84.0 %

TPP 30-105A-D 5.0 VDC 6‘000 mA 87.0 %

TPP 30-109A-D 9.0 VDC 3‘340 mA 88.0 %

TPP 30-112A-D 12 VDC 2‘500 mA 90.5 %

TPP 30-115A-D 30 W 15 VDC 2‘000 mA 90.5 %

TPP 30-124A-D 24 VDC 1‘250 mA 89.5 %

TPP 30-136A-D 36 VDC 840 mA 90.0 %

TPP 30-148A-D 48 VDC 630 mA 91.5 %
