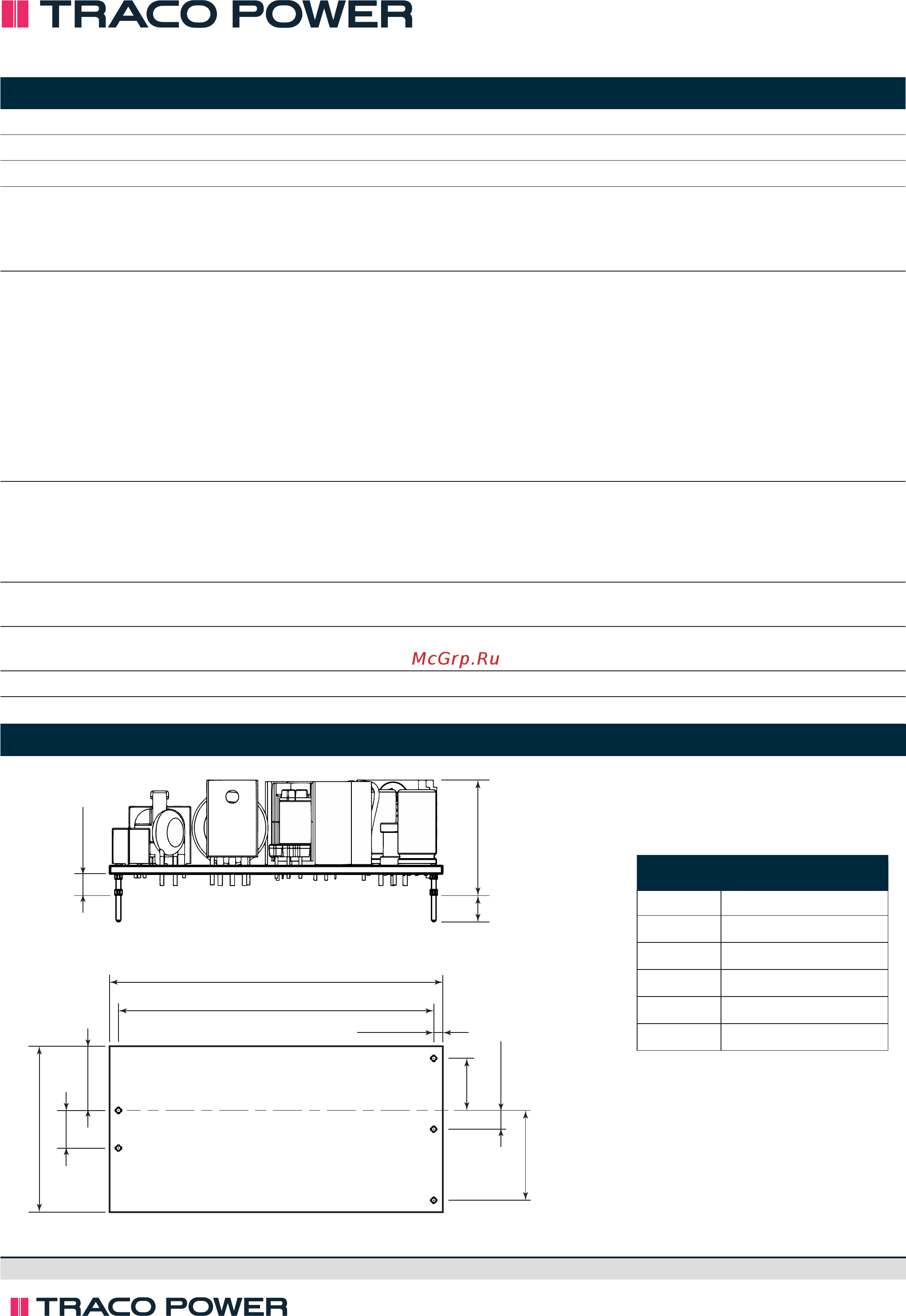

![TRACO POWER TPP 30-115A-D [3/3] Tpp 30a d series 30 watt](/views2/1708543/page3/bg3.png)
TPP 30A-D Series, 30 Watt
www.tracopower.com
© Copyright 2018 Traco Electronic AG Specifications can be changed without notice!
Page 3 of 3
Rev. October 31, 2018
General Specifications (continued)
Isolation resistance (at 500 VDC) 100 MOhm min.
Reliability – calculated MTBF at +25°C acc. to MIL-HDBK-217F 3‘341‘000 h
Weight 58 g (2.05 oz)
EMI emission – Conducted & Radiated input suppression EN 55011 limits to IEC 60601-1-2 4th edition
EN 55032 class B (internal filter)
– Harmonic current emissions IEC / EN 61000-3-2, class A
– Voltage flicker IEC / EN 61000-3-3, (class tba.)
EMC immunity EN 55024, EN 60601-1-2 4th edition
– ESD (electrostatic discharge) EN 61000-4-2, air ±15 kV, contact ±8 kV,
perf. criteria A
– Radiated immunity EN 61000-4-3, 20 V/m, perf. criteria A
– Fast transient EN 61000-4-4, ±2 kV, perf. criteria A
– Surge EN 61000-4-5, ±1 kV perf. criteria A
– Conducted immunity EN 61000-4-6, 20 Vrms, perf. criteria A
– Magnetic field immunity EN 61000-4-8, 30 A/m, perf. criteria A
– Voltage dip and interruptions EN 61000-4-11, 1 cycle perf. cirteria A,
250 cycle perf. criteria B
Safety standards and certification UL/IEC/EN 60950-1, UL/IEC/EN 62368-1
UL/IEC/EN 60601-1 3rd edition
ANSI/AAMI ES60601-1:2005(R)2012
IEC/EN 60335-1, IEC/EN 61558
– Certification documents www.tracopower.com/overview/tpp30a-d
Shock and vibration Vibration acc. IEC 60068-2-6
Shock acc. IEC 60068-2-27
Environmental compliance – Reach www.tracopower.com/info/reach-declaration.pdf
– RoHS RoHS directive 2011/65/EU
Protection class class II prepared
Connection PCB mount
Outline Dimensions
69.7 (2.74)
24.1 (0.95)3.8
(0.15)
4.5 (0.18)
66.14 (2.604)
1.8 (0.07)
7.92
(0.312)
13.3
(0.53)
34.6 (1.36)
10.92
(0.43)
3.96 (0.156)
18.85 (0.742)
bottom view
1
2
3
4
5
Print thickness: 1.6 mm (0.06 inch)
Pin diameter: 1.0 mm (0.04 inch)
Dimension in mm, () = inch
Tolerances: x.x ±0.5 (±0.02)
x.xx ±0.25 (±0.01)
Pin pitch tolerance: ±0.25 (±0.010)
Pin dimension tolerance: ±0.10 (±0.004)
Pin Single
1
Neutral
2
Line
3
+Vout
4
–Vout
5
Trim
PCB Pinout
