Rack Mounting

To install the Fast Ethernet Switch in a 19-inch standard

rack, follow the instructions described below.

Step 1: Place your Fast Ethernet Switch on a hard at

surface, with the front panel positioned towards

your front side.

Step 2: Attach a rack-mount bracket to each side of the

Switch with supplied screws attached to the

package. Figure 4 shows how to attach brackets

to one side of the Fast Ethernet Switch.

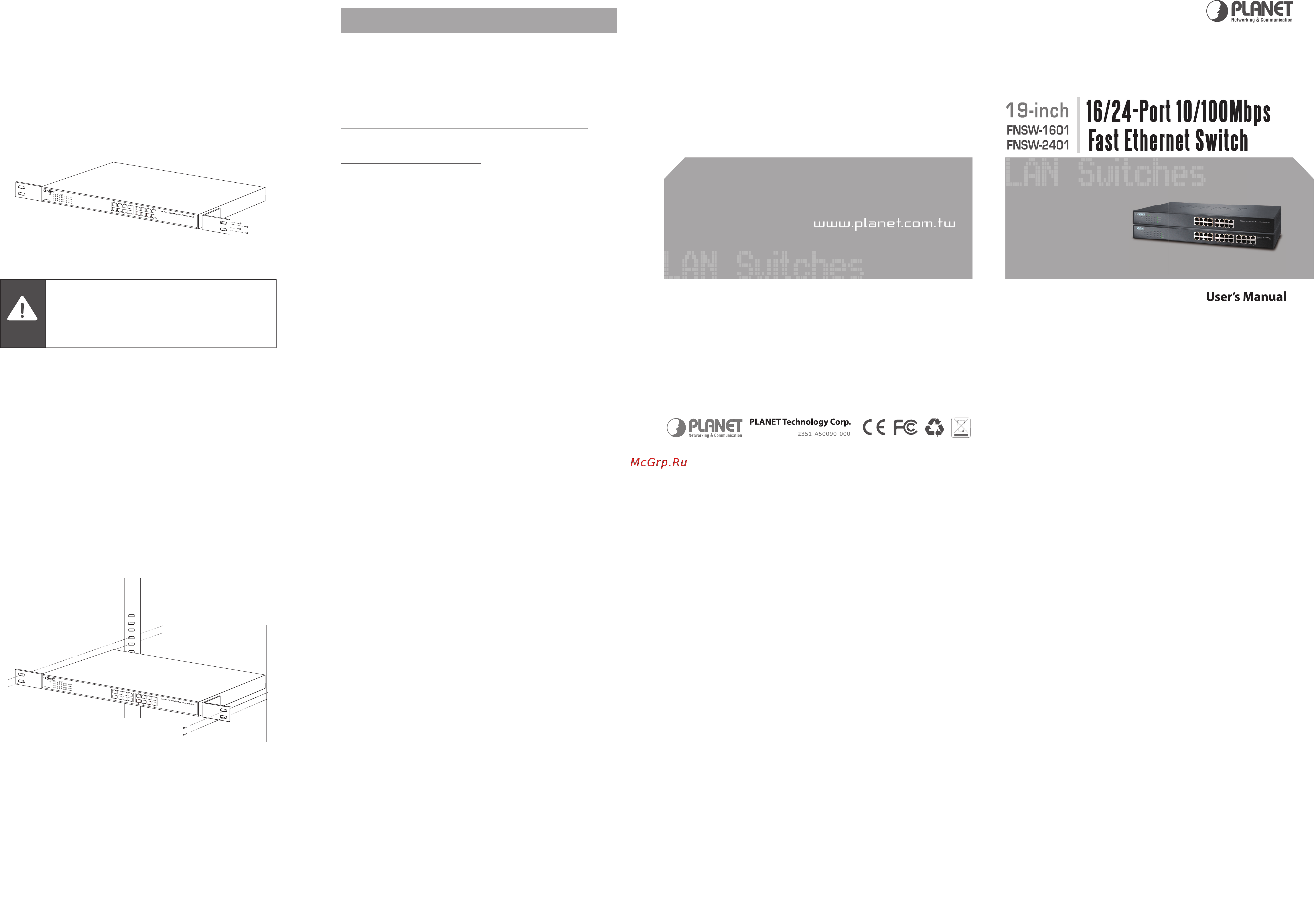

Figure 4: Attaching the brackets to the Fast Ethernet Switch

Caution

You must use the screws supplied with the

mounting brackets. Damage caused to the

parts by using incorrect screws would invalidate

your warranty.

Step 3: Secure the brackets tightly.

7. Customer Support

Thank you for purchase PLANET products. You can browse

our online FAQ resource at the PLANET Web site rst to

check if it could solve you issue. If you need more support

information, please contact PLANET switch support team.

PLANET online FAQ:

http://www.planet.com.tw/en/support/faq.php?type=1

Switch support team mail address:

support_switch@planet.com.tw

Contents subject to revision without prior notice.

PLANET is a registered trademark of PLANET Technology

Corp. All other trademarks belong to their respective

owners.

Step 4: Follow the same steps to attach the second

bracket to the opposite side.

Step 5: After the brackets are attached to the Fast

Ethernet Switch, use suitable screws to securely

attach the brackets to the rack, as shown in Figure

Figure 5: Mounting the Fast Ethernet Switch in a Rack

Step 6: Proceeds with the steps 4 and steps 5 of Desktop

Installation to connect the network cabling and

supply power to your Fast Ethernet Switch.
