H81MLC/H81MHC/H81MDC/H81MGC
3

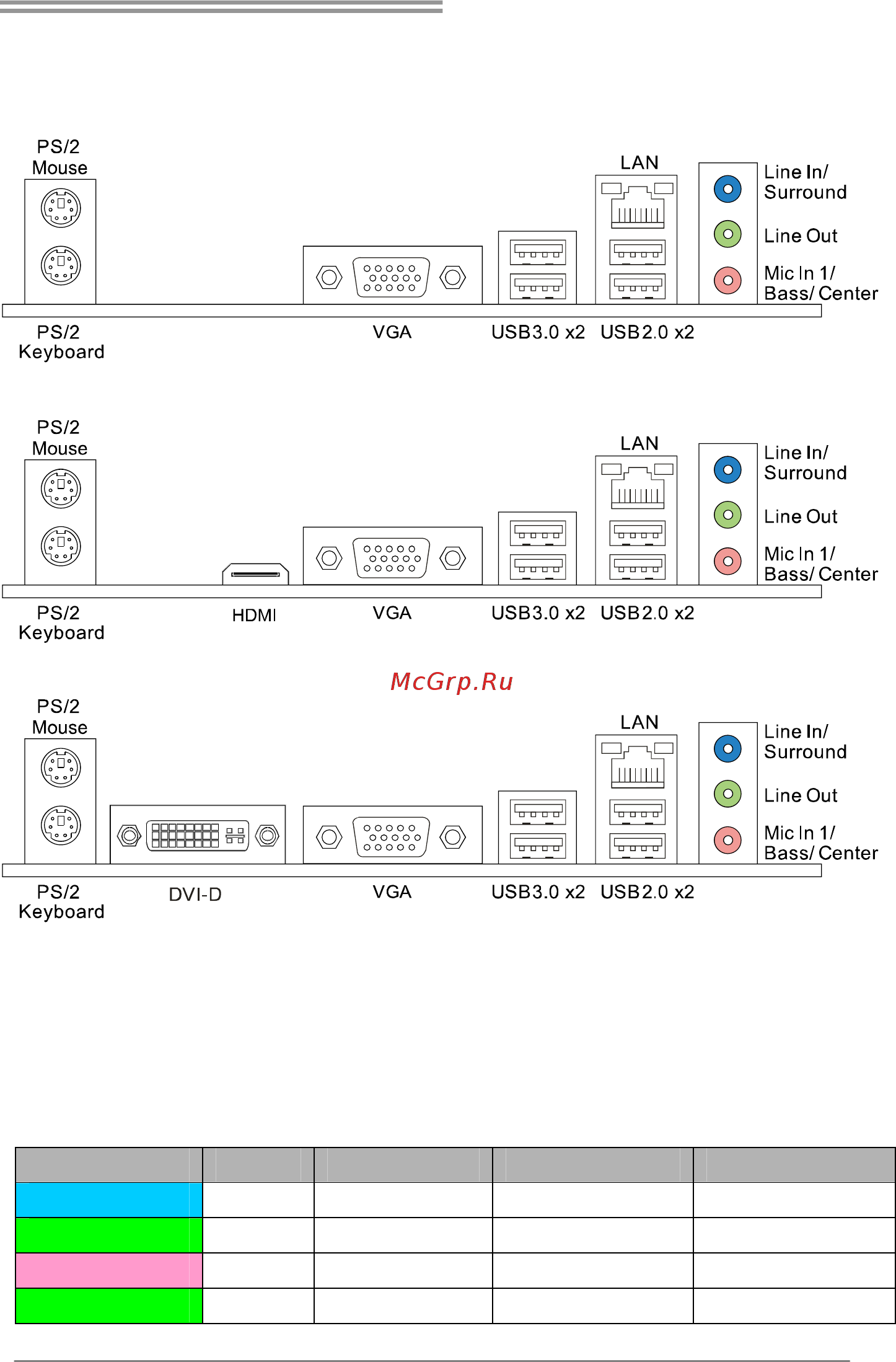

1.4 Rear Panel Connectors
H81MLC & H81MGC
H81MHC
H81MDC
Note1: HDMI, DVI & VGA ports only work with an Intel® integrated Graphics Processor.
Note2: Maximum resolution:
HDMI: 1920 x 1200 @60Hz, compliant with HDMI 1.4a
DVI: 1920 x 1200 @60Hz
VGA: 1920 x 1200 @60Hz
Note3: To configure 7.1-channel audio, you have to use a chassis with HD front panel audio
module and enable the multi-channel audio feature through O.S. Audio Utility.
The 2/ 4/ 5.1/7.1-channel configuration
Port 2-channel 4-channel 5.1 channel 7.1 channel
Blue (Rear Panel) Line In Rear Speaker Out Rear Speaker Out Rear Speaker Out
Green (Rear Panel) Line Out Front Speaker Out Front Speaker Out Front Speaker Out
Pink (Rear Panel) Mic In Mic In Center/Subwoofer Out Center/Subwoofer Out
Green (Front Panel) -- -- -- Side Speaker Out
