Motherboard Manual
4

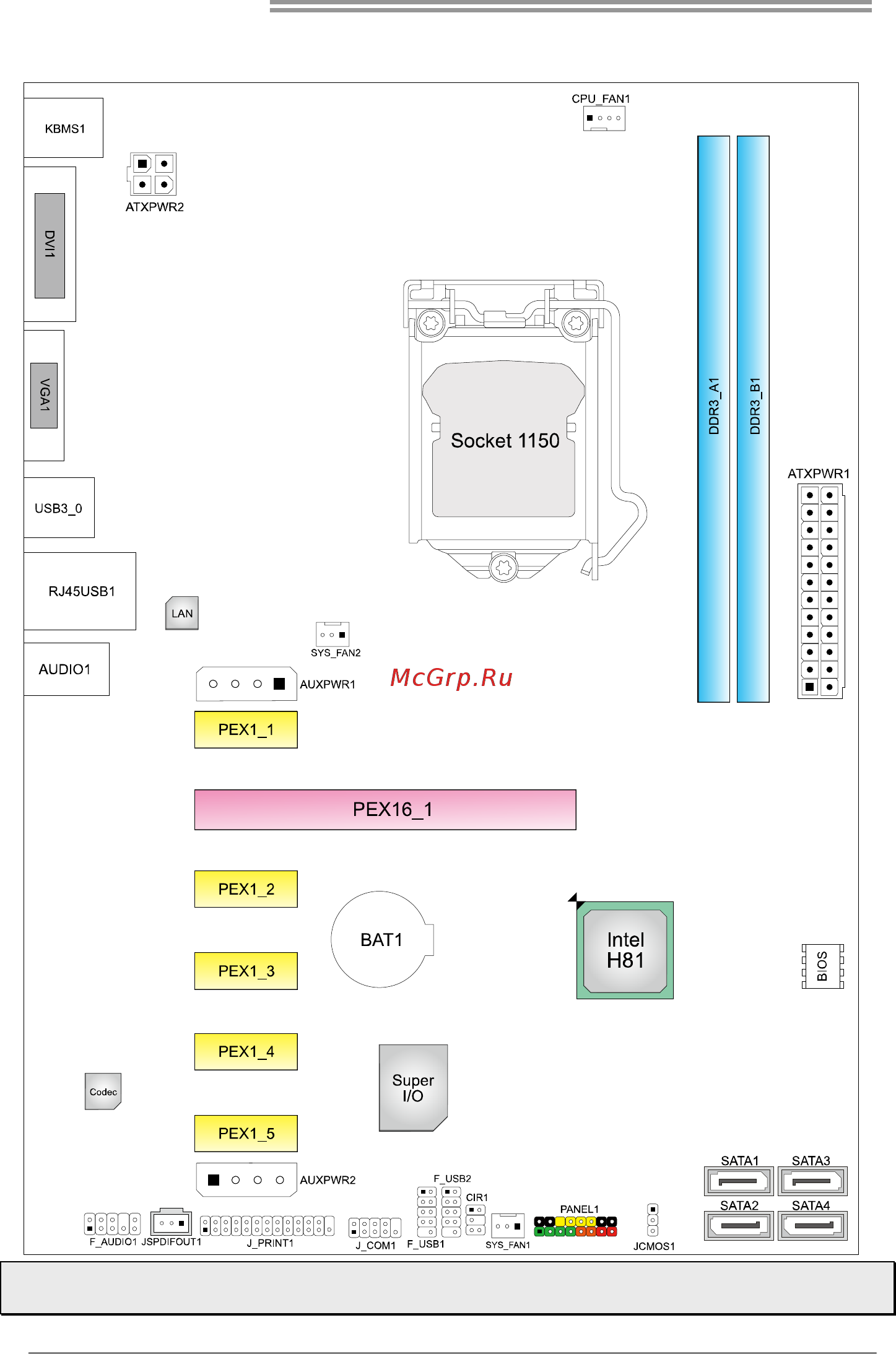

1.5 Motherboard Layout
Note1: ■ represents the 1
st
pin.
Note2: AUXPWR1 & AUXPWR2 are only for version V6.1 motherboard.
