Biostar H81MHP2-LSP Версия 6.x [17/41] F_usb1 2 header for usb 2 ports at front panel

H81MHP2-LSP/H81MGP2-LSP

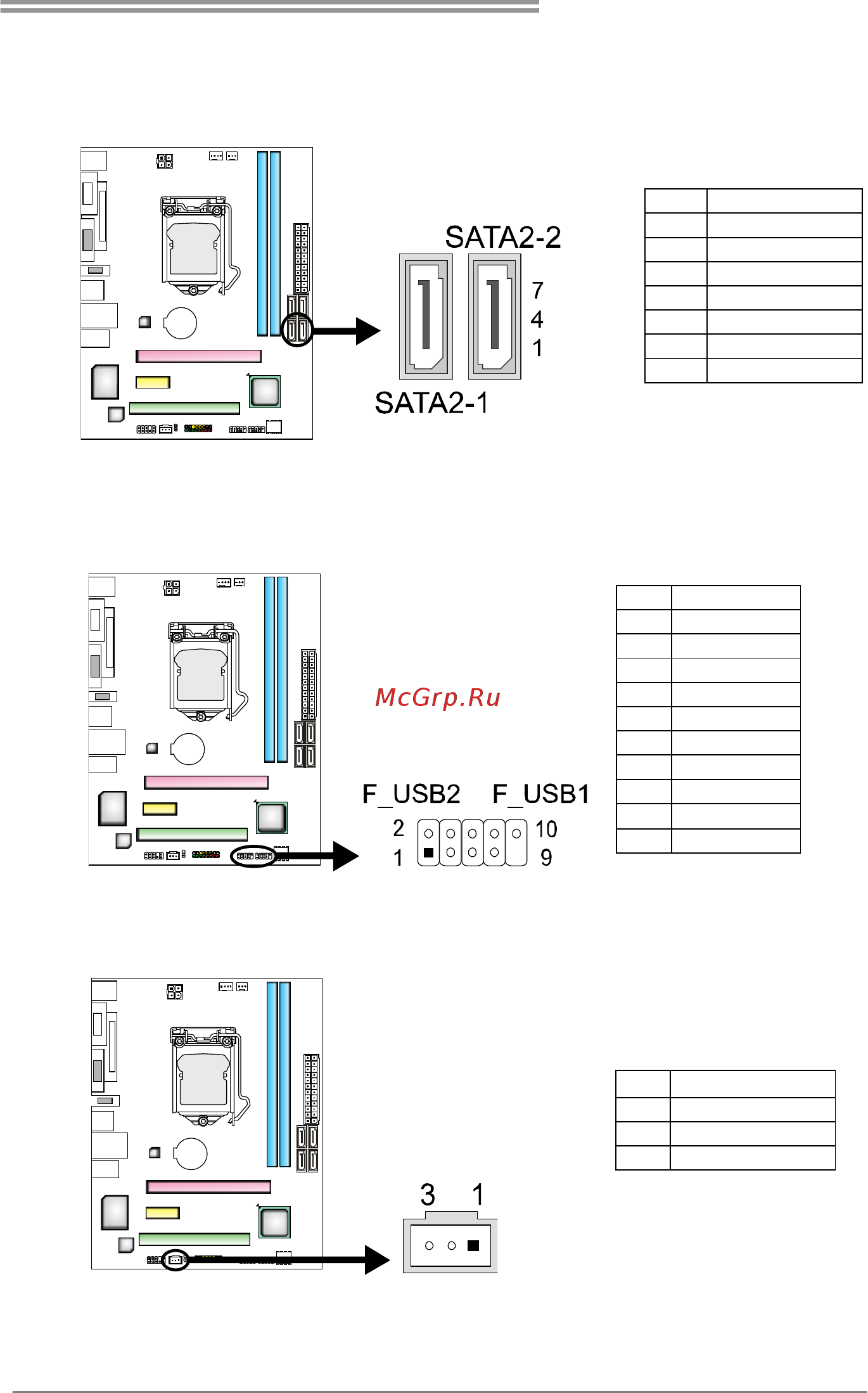

SATA2-1/SATA2-2: Serial ATA 2.0 Connectors

These connectors connect to SATA hard disk drives via SATA cables. It satisfies

the SATA 2.0 specification and with transfer rate of 3.0Gb/s.

Pin Assignment

1 Ground

2 TX+

3 TX-

4 Ground

5 RX-

6 RX+

7 Ground

F_USB1/2: Header for USB 2.0 Ports at Front Panel

This header allows user to add additional USB ports on the PC front panel, and

also can be connected with a wide range of external peripherals.

Pin Assignment

1 +5V (fused)

2 +5V (fused)

3 USB-

4 USB-

5 USB+

6 USB+

7 Ground

8 Ground

9 Key

10 NC

JSPDIFOUT1: Digital Audio-out Connector

The connector is for connecting the S/PDIF output bracket.

Pin Assignment

1 +5V

2 SPDIF_OUT

3 Ground
