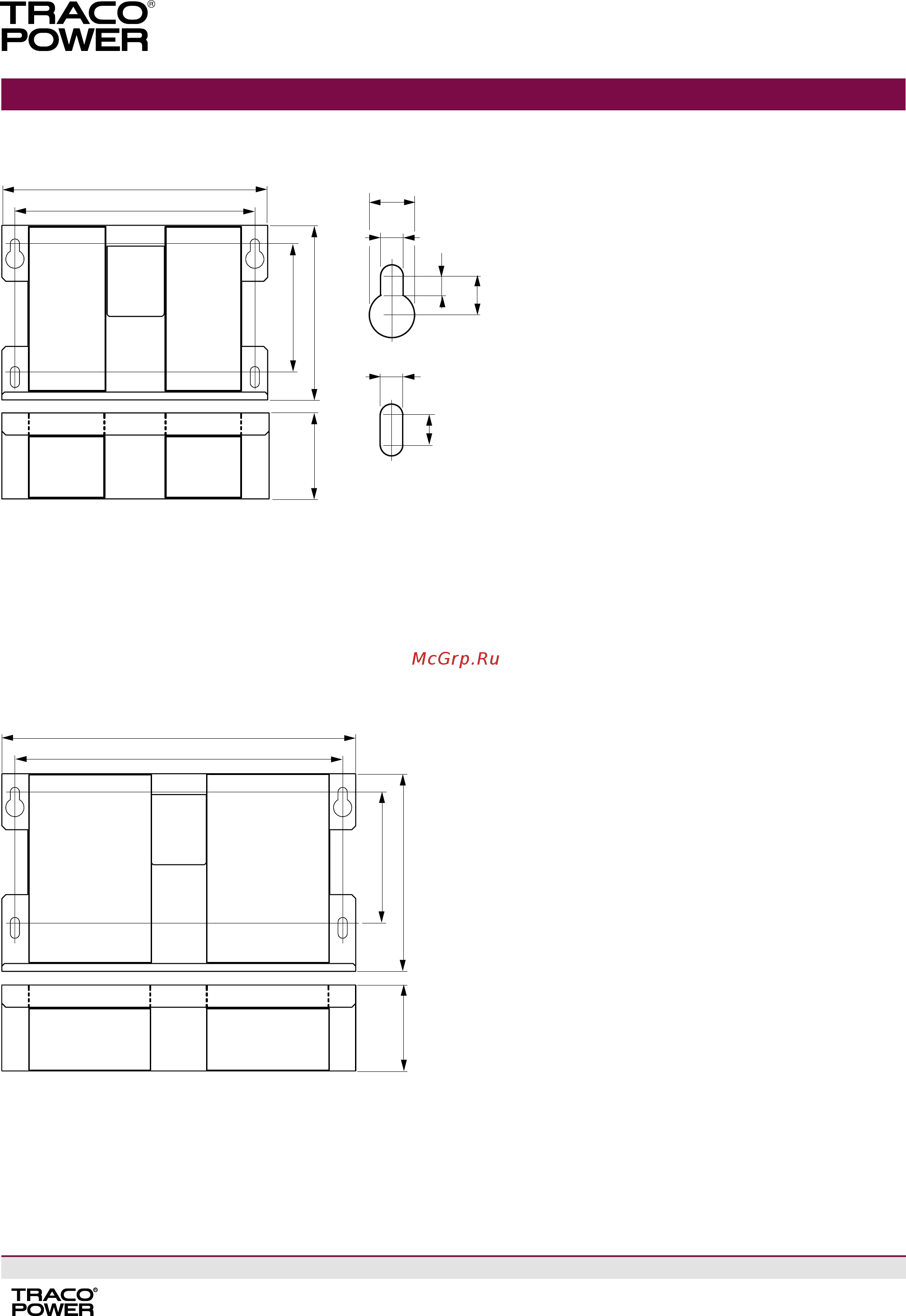

Outline Dimensions mm (inches)
Specifications can be changed without notice! Make sure you are using the latest documentation, downloadable at www.tracopower.com
www.tracopower.com
Industrial Power Supplies
TIS Series 50–600 Watt
TIS 24-32AF (Frame & wiring, excluding batteries)
TIS 24-70AF (Frame & wiring, excluding batteries)
A
B
A
B
204
(8.03)
184
(7.24)
69
(2.72)
Detail B
Detail A
9
(0.35)
5.8
(0.23)
12
(0.47)
14
(0.55)
7
(0.28)
100
(3.94)
135
(5.14)
7
(0.28)
B
A
272
(10.71)
252
(9.92)
B
A
100
(3.94)
69
(2.72)
152
(5.98)
Rev. September 3, 2018
Dimensions in [mm], () = Inch
Tolerances: ±0.5 (±0.02)
On request:
TIS 24-32AP: Package with 2 Panasonic LC-R123R4PG batteries included
On request:
TIS 24-70AP: Package with 2 Panasonic LC-R127R2PG1 batteries included
