Physical Details

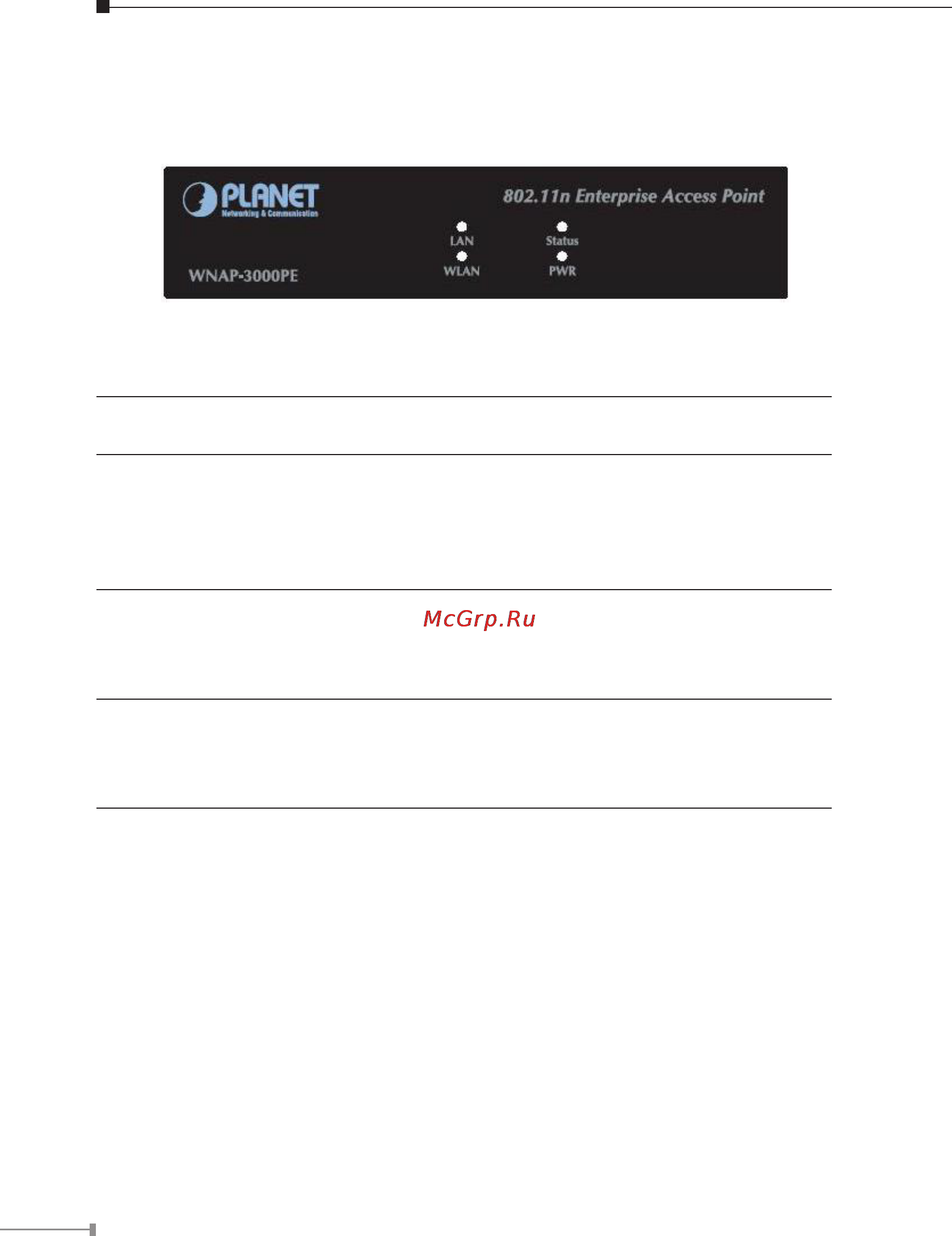

Front panel

LED denition

Power

On - Normal operation.

Off - No power

WLAN

On - Idle

Off - Wireless connection is not available.

Flashing - Data is being transmitted or received via the Wireless

access point. Data includes “network trafc” as well as

user data.

Status

On - Error condition.

Off - Normal operation.

Blinking - During start up, and when the Firmware is being

upgraded.

LAN

On - The LAN port is active.

Off - No active connection on the LAN port.

Flashing - Data is being transmitted or received via the

corresponding LAN port.
