Biostar G41D-M7 Версия 6.x [10/47] A ddr2 module

Motherboard Manual

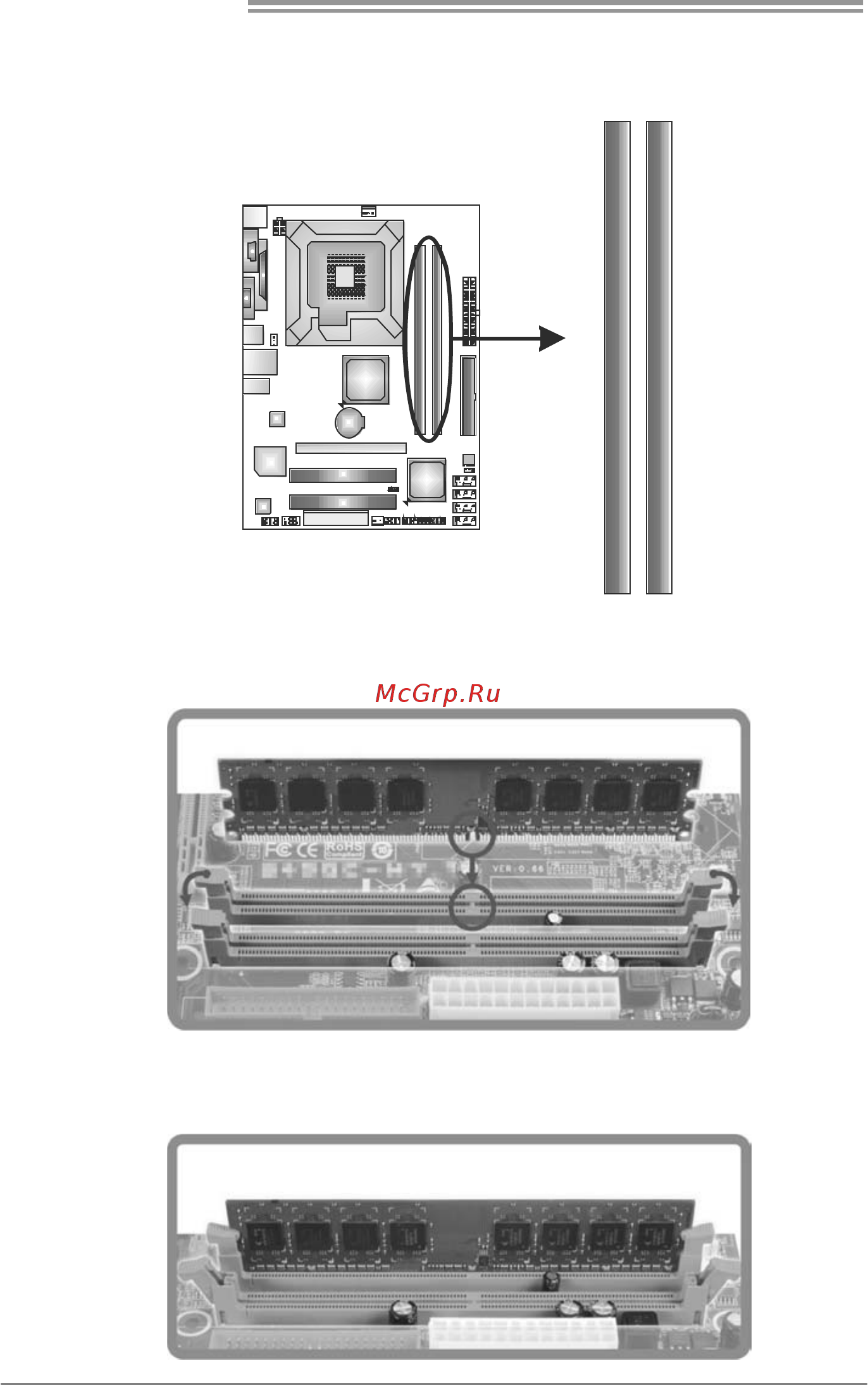

2.3 INSTALLING SYSTEM MEMORY

A. DDR2 module

DDR2_B1

DDR2_A1

1. Unlock a DIMM slot by pressing the retaining clips outward. Align a

DIMM on the slot so that the notch on the DIMM matches the break

on the Slot.

2. Insert the DIMM vertically and firmly into the slot until the retaining

chip snap back in place and the DIMM is properly seated.
