Motherboard Manual
4

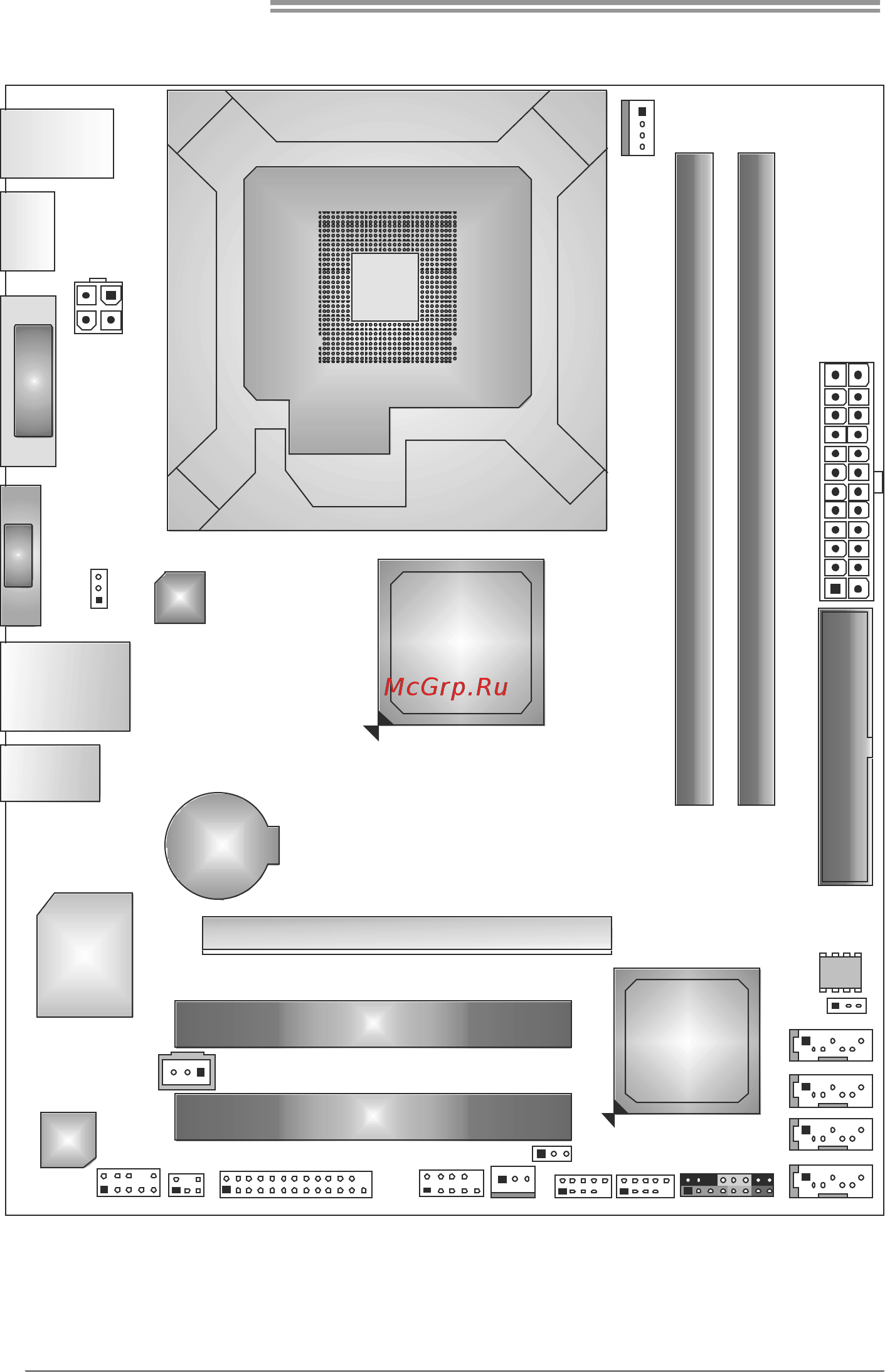

1.5 MOTHERBOARD LAYOUT
USBKB1
HDMI1
VGA1
DVI1
RJ45USB1
AUDIO1
JUSBV1
F_AU DIO1
LAN
ATXPWR2
Super
I/O
BAT1
PEX16_1
PCI1
PCI2
JSPD IFOU T1
CIR1
J_PRINT1
J_C OM1
SYS_FAN1
JUSBV2
F_USB1 F_USB2 PAN EL1
Intel
ICH7
SATA2
SATA1
SATA3
SATA4
BIOS
JCMOS1
IDE1
ATXPWR 1
DDR3_B1
DDR3_A1
CPU_FAN1
Intel
G41
LGA775
CPU1
Codec
Note: ■ represents the 1
st
pin.
