TP45 HP/TP43 HP
19

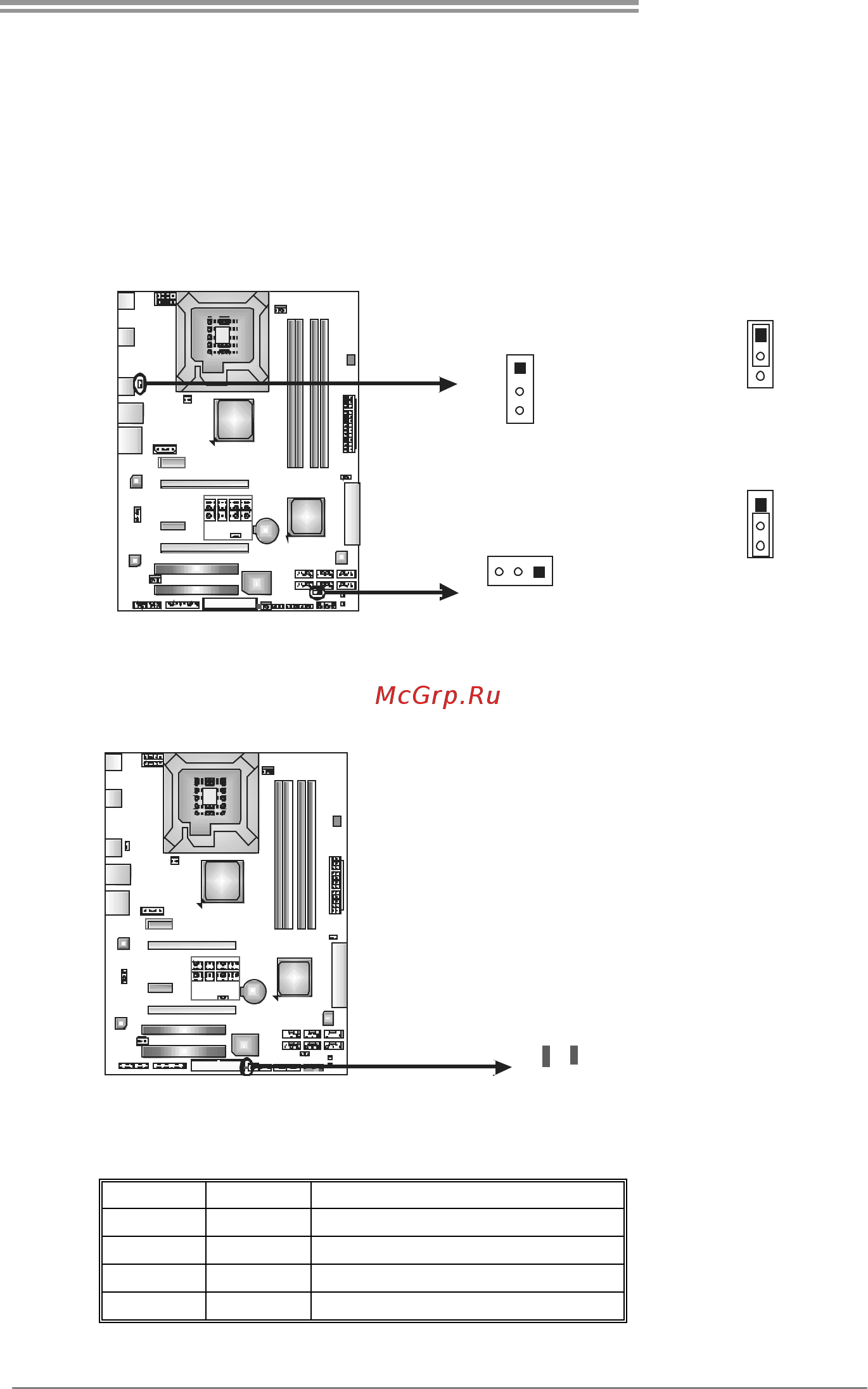

JUSBV1/JUSBV2: Power Source Headers for USB/PS2 Ports
Pin 1-2 Close:
JUSBV1: +5V for USB/PS2 ports at JKBMS1/JUSB1/JUSB2/JRJ45USB1.
JUSBV2: +5V for USB ports at JUSB3/JUSB4/JUSB5.
Pin 2-3 Close:
JUSBV1: +5V STB for USB/PS2 ports at JKBMS1/JUSB1/JUSB2/JRJ45USB1.
JUSBV2: +5V STB for USB ports at JUSB3/JUSB4/JUSB5.
1
3
Pin 1-2 close
13
1
3
JUSBV1
JUSBV2
1
3
Pin 2-3 close
On-Board LED Indicators
There are 2 LED indicators on the motherboard to show system status.
LED_ D2
LED_ D1
LED_D1 and LED_D2:
These 2 LED indicate system power on diagnostics.
Please refer to the table below for different messages:
LED_D1 LED_D2 Message
ON ON Norma l
ON OFF Memory Error
OFF ON VGA Error
OFF OFF Abnormal: CPU / Chipset error.
