Chapter 6 INSTALLING THE CONVERTER
Please follow these steps to install the converter:
• Turn off the power of the device/station in a network to
which the GT-70X will be attached.
• Ensure that there is no activity in the network.
• Attach fiber cable from the GT-70X to the fiber network.
TX, RX must be paired at both ends.
• Connect the 5VDC power adapter to the GT-70X and
verify that the Power LED lights up.
• Turn on the power of the device/station; the PWR LEDs
should light when all cables are attached.
Notice:
Please refers to section 9 for detailed wiring information of the GT-
70X
.

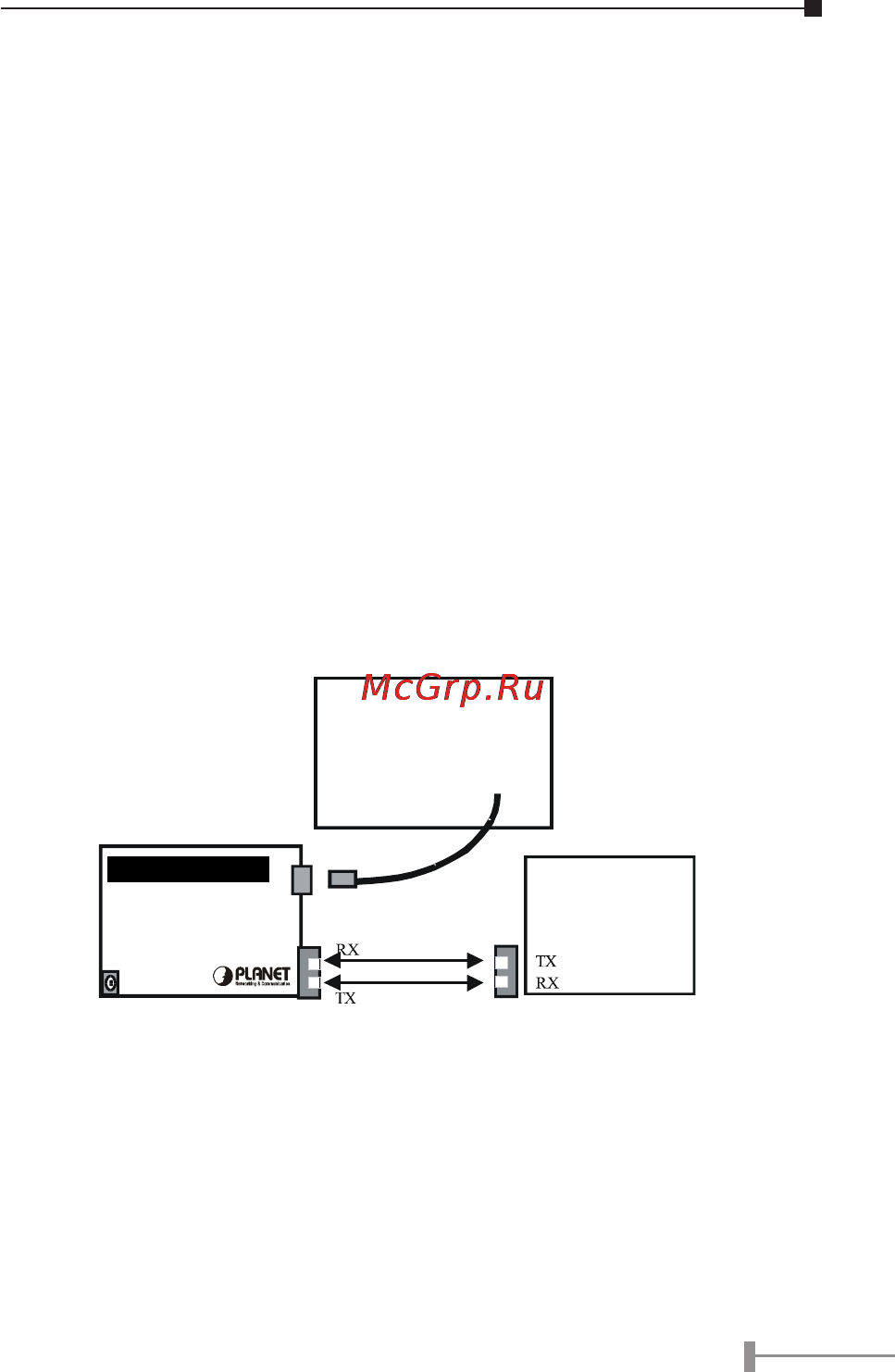

GT-70X
1000Base-T
Cat. 5/5e TP
Cable Network
1000Base-SX/LX
Fiber Network
1000Base-SX/LX
Gigabit Ethernet Converter
To prevent from optic acceptor malfunction, check the both
wires / transmitter before power on the converter.
