Motherboard Manual

1.5 Central Processing Unit (CPU)

The motherboard is equipped with an onboard Intel procrssor and a CPU cooler.

Motherboard Model: Onboard Intel CPU:

J1800MH/ J1800MD/ J1800ML Intel® Celeron® J1800 processor (Dual core, 1M Cache, 2.58 GHz)

J1900MH/ J1900MD/ J1900ML Intel® Celeron® J1900 processor (Quad core, 2M Cache, 2.42 GHz)

J2900MH/ J2900MD/ J2900ML Intel® Pentium® J2900 processor (Quad core, 2M Cache, 2.67 GHz)

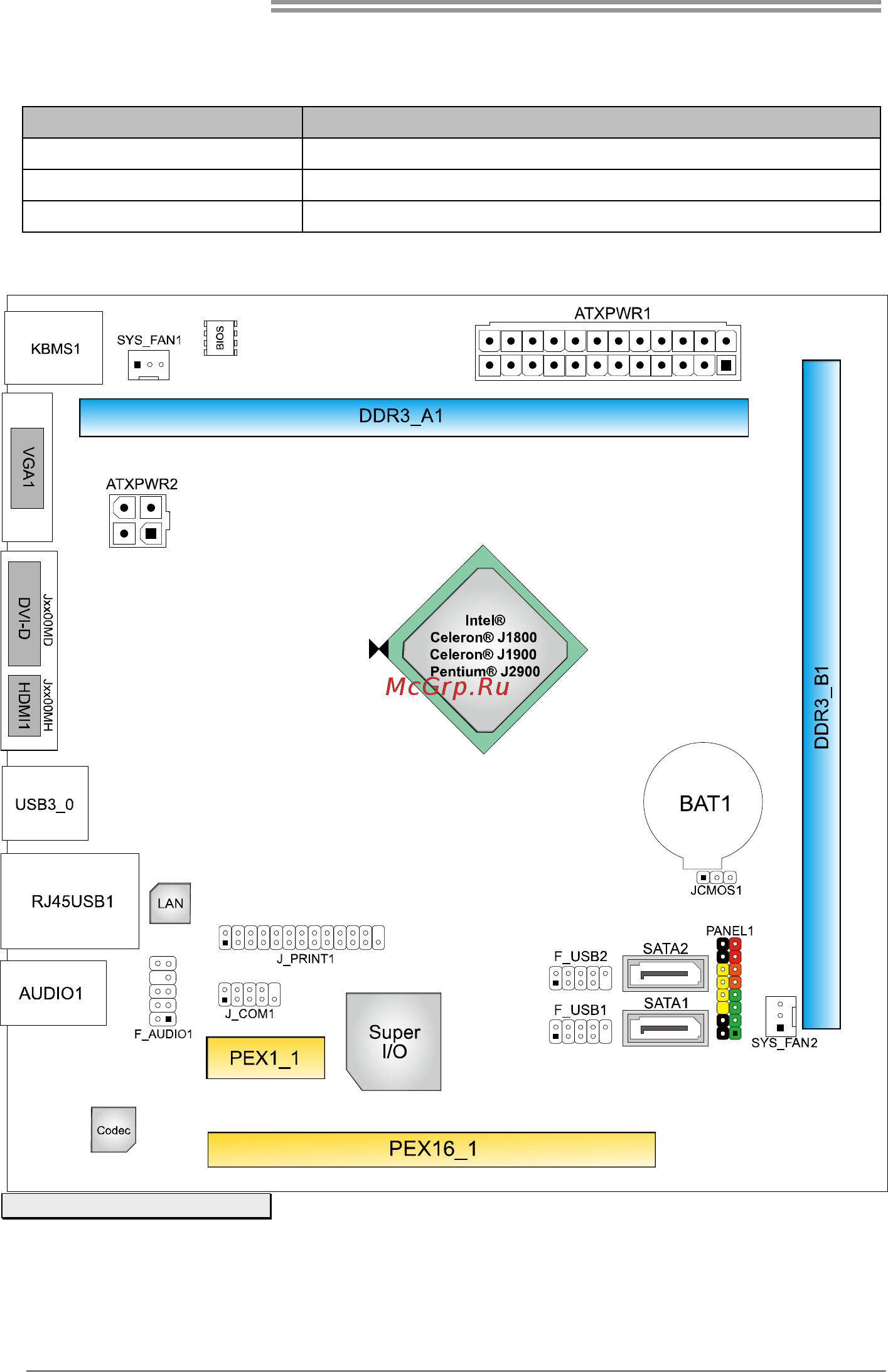

1.6 Motherboard Layout

Note: ■ represents the 1

pin.
