N3150MP/N3050MP
5
CHAPTER 2: HARDWARE INSTALLATION

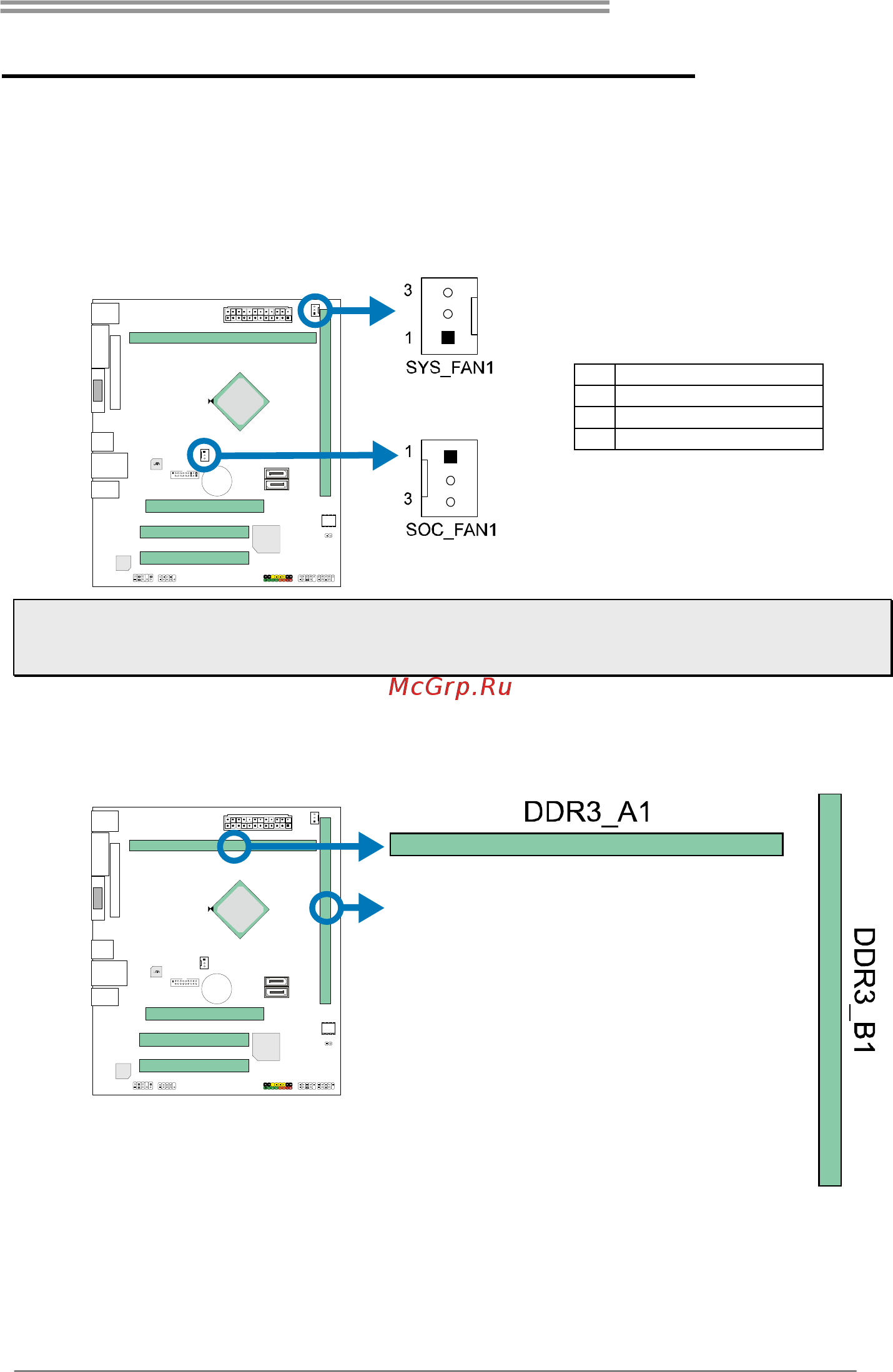

2.1 Connect Cooling Fans
These fan headers support cooling-fans built in the computer. The fan cable and
connector may be different according to the fan manufacturer. Connect the fan
cable to the connector while matching the black wire to pin#1.
SYS_FAN1/SOC_FAN1: Fan Header
Pin Assignment
1 Ground
2 +12V
3 FAN RPM rate sense
Note: When connecting with wires onto connectors, please note that the red wire is the positive
and should be connected to pin#2, and the black wire is Ground and should be connected to
GND.
2.2 Install System Memory
A. DDR3L DIMM Module (1.35V/1.5V)
