Motherboard Manual

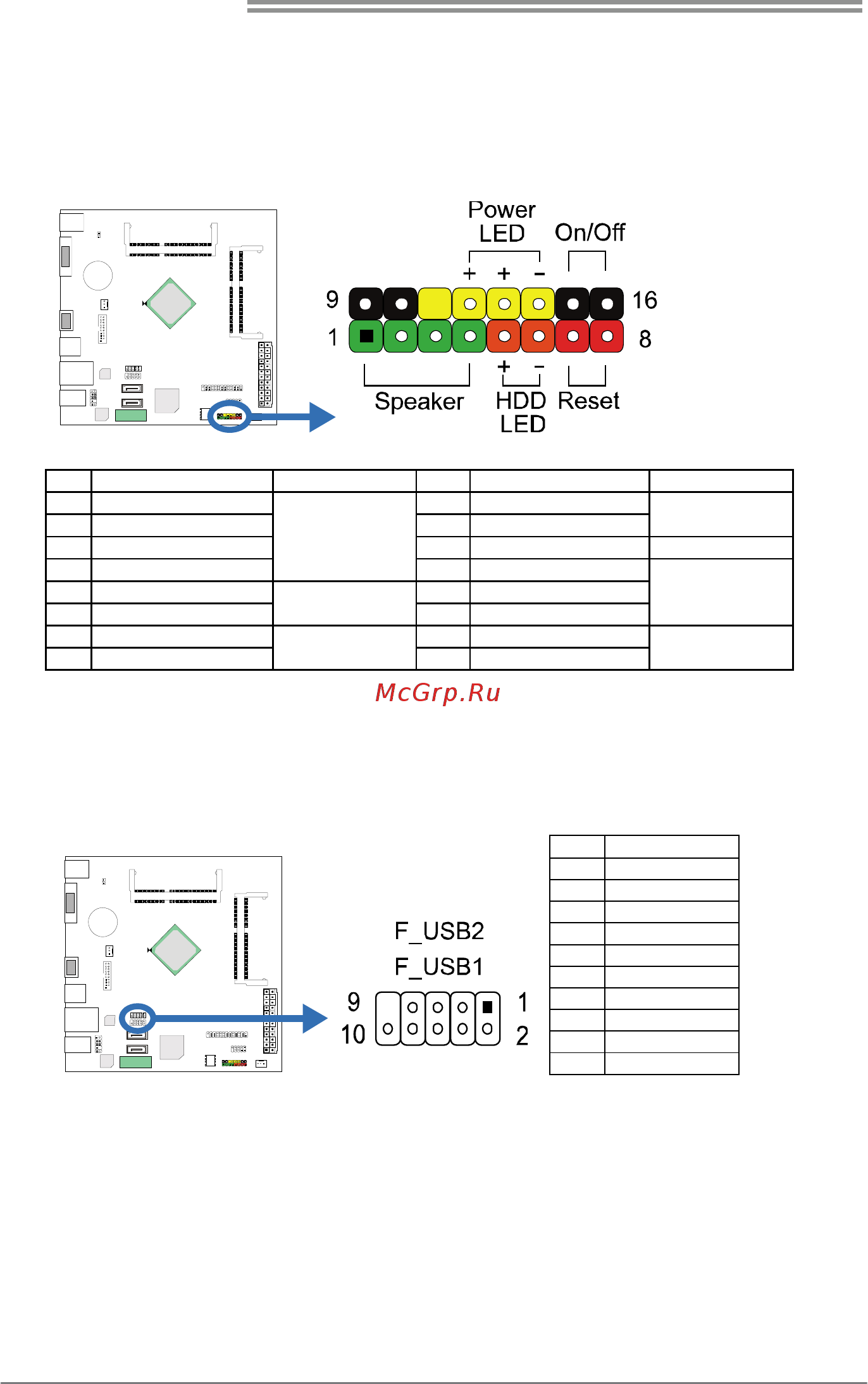

PANEL1: Front Panel Header

This 16-pin connector includes Power-on, Reset, HDD LED, Power LED, and

speaker connection. It allows user to connect the PC case’s front panel switch

functions.

Pin Assignment Function Pin Assignment Function

1 +5V

Speaker

Connector

9 N/A

N/A

2 N/A 10 N/A

3 N/A 11 N/A N/A

4 Speaker 12 Power LED (+)

Power LED

5 HDD LED (+)

Hard drive LED

13 Power LED (+)

6 HDD LED (-) 14 Power LED (-)

7 Ground

Reset button

15 Power button

Power-on button

8 Reset control 16 Ground

F_USB1/2: Header for USB 2.0 Ports at Front Panel

This header allows user to connect additional USB cable on the PC front panel,

and also can be connected with a wide range of simultaneously accessible

external Plug and Play peripherals.

Pin Assignment

1 +5V (fused)

2 +5V (fused)

3 USB-

4 USB-

5 USB+

6 USB+

7 Ground

8 Ground

9 Key

10 NC
