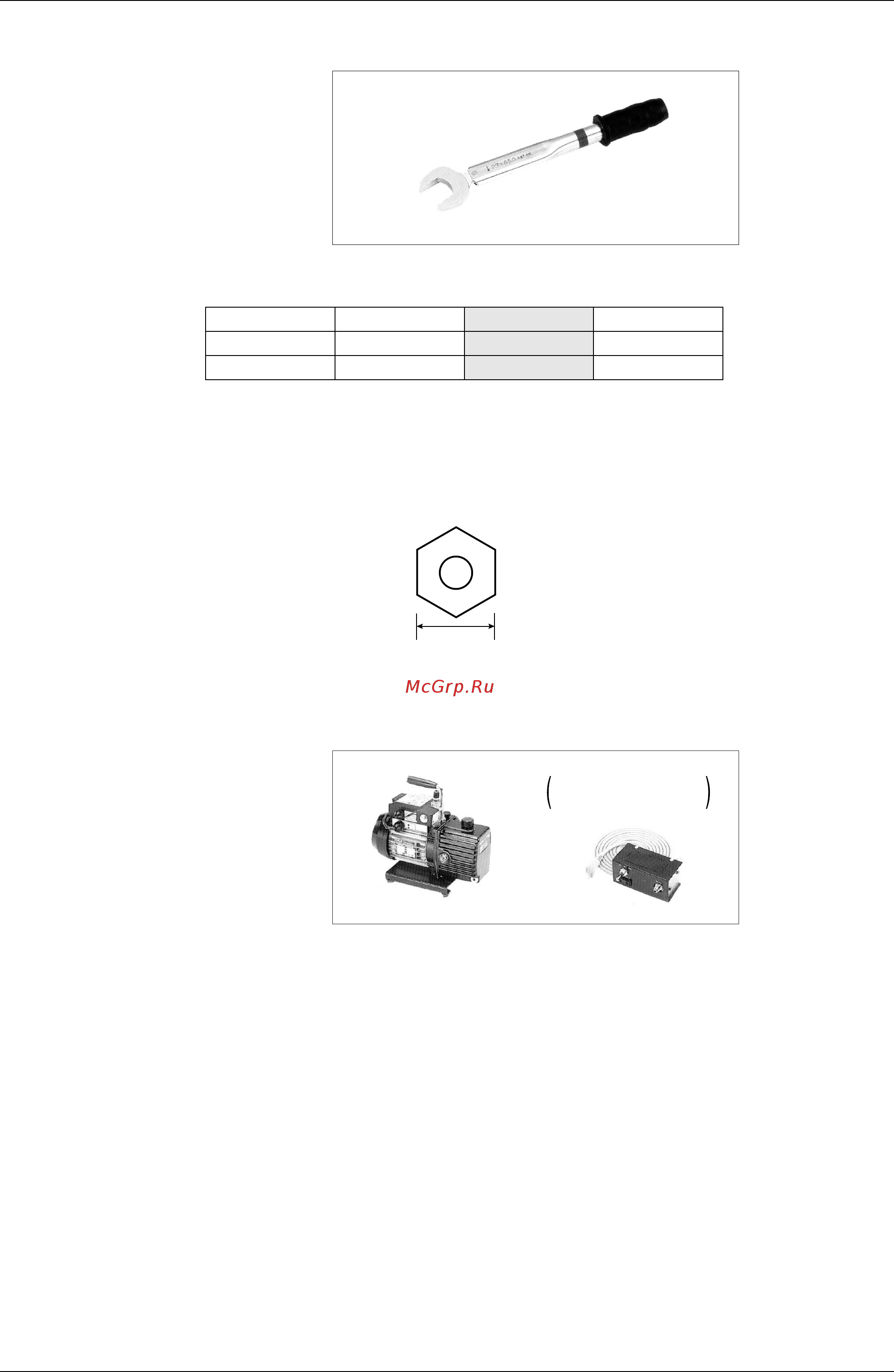

Si39-302 Precautions for New Refrigerant (R410)
Precautions for New Refrigerant (R410) 291
2. Torque wrench
!
Specifications
2 Dimension B Unit:mm
No change in tightening torque
No change in pipes of other sizes
!
Differences
2 Change of dimension B
Only 1/2", 5/8" are extended
3. Vacuum pump with check valve
!
Specifications
2 Discharge speed
)
Maximum degree of vacuum
50 l/min (50Hz) –100.7 kpa ( 5 torr – 755 mmHg)
60 l/min (60Hz)
2 Suction port UNF7/16-20(1/4 Flare)
UNF1/2-20(5/16 Flare) with adapter
!
Differences
2 Equipped with function to prevent reverse oil flow
2 Previous vacuum pump can be used by installing adapter.
Nominal size Class-1 Class-2 Previous
1/2 24
26 24
5/8 27
29 27
Dimension B
For class-1: R407C
For class-2: R410A
Vacuum pump adapter
Reverse flow preventive
vacuum adapter
