2. Advanced Menu | 15

A320MH PRO / A320MD PRO

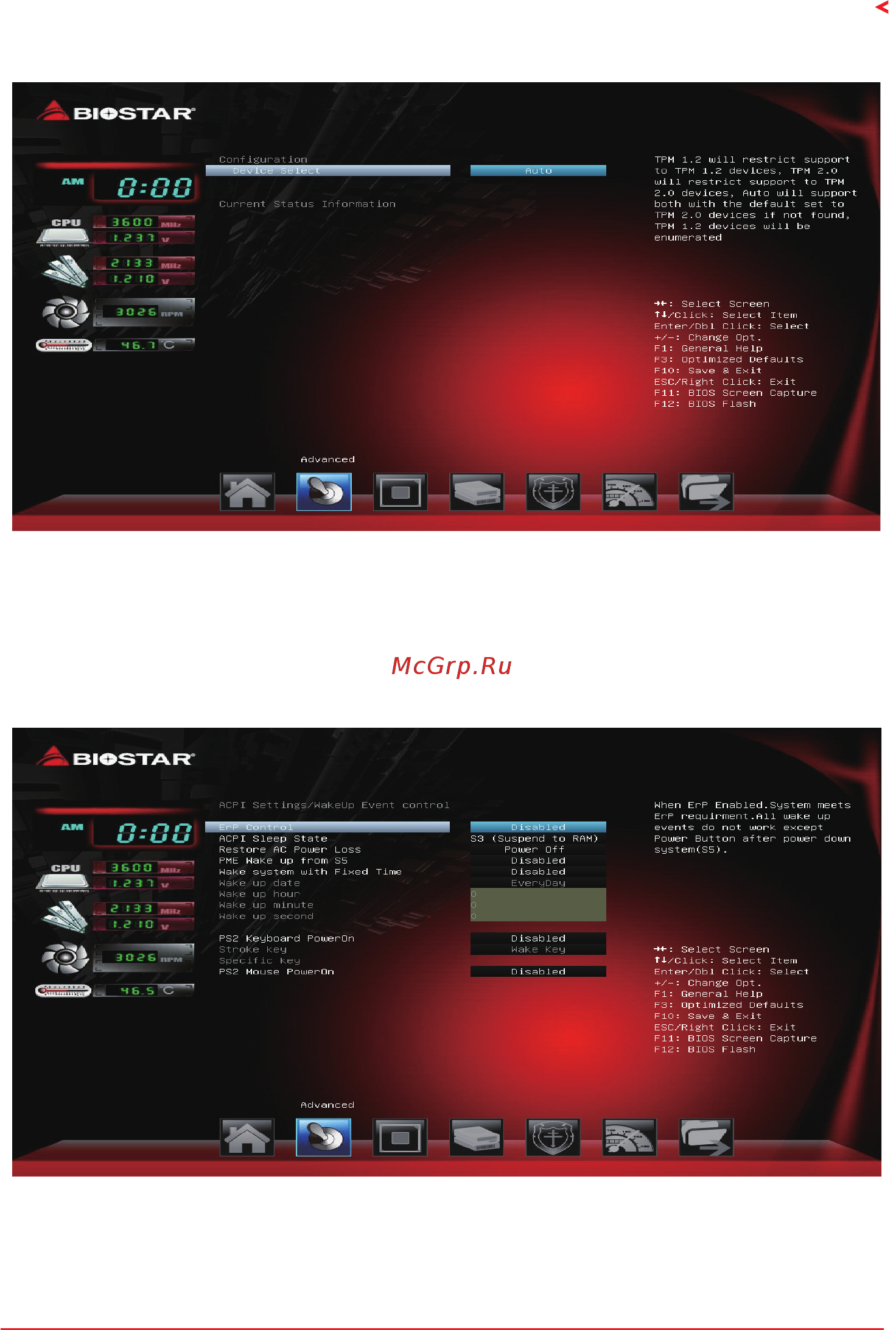

Trusted Computing

Device Select

This item TPM1.2 will restrict support to TPM 1.2 devices, TPM 2.0 will restrict support to TPM

2.0 devices, Auto will support both with the default set to TPM 2.0 devices if not found, TPM 1.2

devices if not found, TPM 1.2 devices will be enumerated.

Opons: Auto (Default) / TPM 1.2 / TPM 2.0

ACPI Settings/WakeUp Event control

ErP Control

This item enables or disables ErP Control funcon. When ErP Enabled, system meets ErP

requirment. All wake up events do not work except Power Buon aer power down system(S5).

Opons: Disabled (Default) / Enabled
