Biostar TA320-BTC Версия 6.x [6/63] Motherboard layout

6 | Chapter 1: Introducon

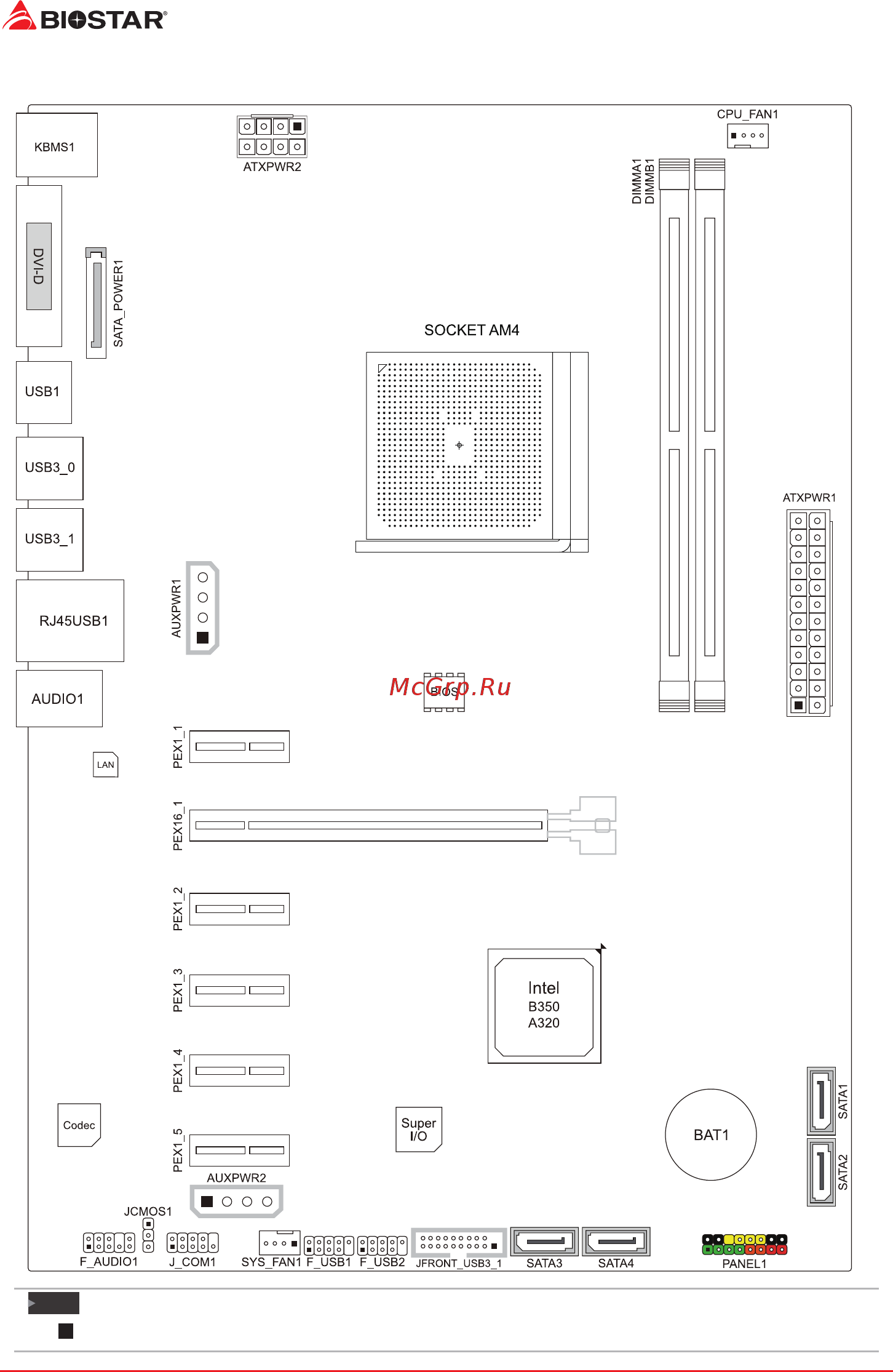

1.5 Motherboard Layout

Note



representsthe1stpin.

Содержание

Fcc information and copyright 1
Appendix i specifications in other languages 29 2
Chapter 1 introduction 3 2
Chapter 2 hardware installation 7 2
Chapter 3 uefi bios software 18 2
Chapter 4 useful help 25 2
Fcc information and copyright 1 2
Table of contents 2
1 before you start 3
Chapter 1 introduction 3
Package checklist 3
3 specifications 4
Chapter 1 introduction 4
Chapter 1 introduction 5 5
Rear panel connectors 5
Tb350 btc ta320 btc 5
Chapter 1 introduction 6
Motherboard layout 6
Chapter 2 hardware installation 7
Install central processing unit cpu 7
Install a heatsink 8
Chapter 2 hardware installation 10
Connect cooling fans 10
Cpu_fan1 cpu fan header 10
Cpu_fan1 sys_fan1support4 pinand3 pinheadconnectors whenconnectingwithwiresonto connectors pleasenotethattheredwireisthepositiveandshouldbeconnectedtopin 2 andthe blackwireisgroundandshouldbeconnectedtopin 1 gnd 10
Ddr4 modules 10
Install system memory 10
Sys_fan1 system fan header 10
These fan headers support cooling fans built in the computer the fan cable and connector may be different according to the fan manufacturer 10
Chapter 2 hardware installation 11 11
Dual channel memory installation 11
Memory capacity 11
O means memory installed x means memory not installed 11
Please refer to the following requirements to activate dual channel function install memory module of the same density in pairs shown in the table 11
Step 1 unlock a dimm slot by pressing the retaining clips outward align a dimm on the slot such that the notch on the dimm matches the break on the slot 11
Step 2 insert the dimm vertically and firmly into the slot until the retaining clips snap back in place and the dimm is properly seated 11
Tb350 btc ta320 btc 11
Chapter 2 hardware installation 12
Expansion slots 12
Install an expansion card 12
Pci express 2 compliant data transfer bandwidth up to 500mb s per direction 1gb s in total 12
Pci express 3 compliant data transfer bandwidth up to 1gb s per direction 2gb s in total 12
Pci express 3 compliant theoretical maximum bandwidth using two slots simultaneously is 16gb s for each slot a total of 32gb s 12
Pex16_1 pci express gen3 x16 slot apu npu x8 speed ryzen x16 speed 12
Pex1_1 1_2 pci express gen3 x1 slot 12
Pex1_3 1_4 1_5 pci express gen2 x1 slot 12
Ryzen ddr maximum frequency support table 12
You can install your expansion card by following steps read the related expansion card s instruction document before install the expansion card into the computer remove your computer s chassis cover screws and slot bracket from the computer place a card in the expansion slot and press down on the card until it is completely seated in the slot secure the card s metal bracket to the chassis back panel with a screw replace your computer s chassis cover power on the computer if necessary change bios settings for the expansion card install related driver for the expansion card 12
Jcmos1 clear cmos jumper 13
Jumper switch setting 13
Atxpwr1 atx power source connector 14
Atxpwr2 atx power source connector 14
Beforeyoupoweronthesystem pleasemakesurethatbothatxpwr1andatxpwr2connectors havebeenplugged in insufficientpowersuppliedtothesystemmayresultininstabilityortheperipheralsnotfunctioning properly useofapsuwithahigherpoweroutputisrecommendedwhenconfiguringasystemwith morepower consumingdevices 14
Chapter 2 hardware installation 14
For better compatibility we recommend to use a standard atx 24 pin power supply for this connector make sure to find the correct orientation before plugging the connector 14
Headers connectors 14
The connector provides 12v to the cpu power circuit if the cpu power plug is 4 pin please plug it into pin 1 2 5 6 of atxpwr2 14
Auxpwr1 2 auxiliary power for graphics for bitcoin mining 4pin power connector must be installed 15
Chapter 2 hardware installation 15 15
Panel1 front panel header 15
Sata_power1 sata power connector 15
Tb350 btc ta320 btc 15
This 16 pin header includes power on reset hdd led power led and speaker connection 15
This connector is an auxiliary power connection for graphics cards exclusive power for the graphics card provides better graphics performance 15
This sata power connector enhances the power of rear usb ports 15
Chapter 2 hardware installation 16
F_usb1 2 header for usb 2 ports at front panel 16
Jfront_usb3_1 header for usb 3 gen1 5gb s ports at front panel 16
Sata1 sata4 serial ata 6 gb s connectors 16
These connectors connect to sata hard disk drives via sata cables 16
This header allows user to add additional usb ports on the pc front panel and also can be connected with a wide range of external peripherals 16
Chapter 2 hardware installation 17 17
F_audio1 front panel audio header 17
Itisrecommendedthatyouconnectahigh definitionfrontpanelaudiomoduletothisconnectorto availofthemotherboard shighdefinitionaudiocapability pleasetrytodisablethe frontpaneljackdetection ifyouwanttouseanac 97frontaudiooutput cable thefunctioncanbefoundviao s audioutility 17
J_com1 serial port connector 17
Tb350 btc ta320 btc 17
The motherboard has a serial port header for connecting rs 232 port 17
This header allows user to connect the chassis mount front panel audio i o which supports hd and ac 97 audio standards 17
Bios update 18
Chapter 3 uefi bios software 18
Uefi bios setup 18
Installing software 22
Launching software 22
Software 22
Chapter 3 uefi bios software 24
Enter the file name and then click save your system information will be saved to a txt file 24
Open the saved txt file you will see your system information including motherboard bios cpu video device os information this information is also concluded in the sent mail 24
Chapter 4 useful help 25
Driver installation 25
Ami bios beep code 26
Boot block beep codes 26
Chapter 4 useful help 26
Post bios beep codes 26
Troubleshooting 26
Raid definitions 27
Raid functions 27
Appendix i specifications in other languages 29
Appendix i specifications in other languages 29 29
Arabic 29
Tb350 btc ta320 btc 29
Appendix i specifications in other languages 30
German 30
Appendix i specifications in other languages 31 31
Russian 31
Tb350 btc ta320 btc 31
Спецификации 31
Appendix i specifications in other languages 32
Spanish 32
Appendix i specifications in other languages 33 33
Tb350 btc ta320 btc 33
Fcc条款 35
免责说明 35
防静电操作规则 35
目录 36
第一章主板介绍 3 36
第三章 uefi bios和软件 18 36
第二章硬件安装 7 36
第四章帮助信息 25 36
附录i 产品中有毒有害物质或元素的名称及含量 29 36
1 前言 37
第一章主板介绍 37
3 主板特性 38
第一章主板介绍 38
4 后置面板接口 39
Tb350 btc ta320 btc 39
第一章主板介绍 5 39
5 主板布局图 40
第一章主板介绍 40
1 中央处理器 cpu 41
第二章硬件安装 41
2 散热片 42
3 风扇接头 44
4 系统内存 44
Cpu_fan1 cpu 风扇接头 44
Cpu_fan1 sys_fan1支持4针脚和3针脚接口接线时请注意红线是正极需接到第二个针脚黑线接地需接到gnd针脚 44
Ddr4内存模组 44
Sys_fan1 系统风扇接头 44
此风扇接头支持电脑内置的冷却风扇风扇引线和插头可能因制造商而异 44
第二章硬件安装 44
O 表示内存已安装 x 表示内存未安装 45
Tb350 btc ta320 btc 45
为激活主板双通道功能使用内存模组必须符合以下要求成对安装相同密度的内存模组如下表所示 45
内存容量 45
双通道内存安装 45
步骤1 向外推开固定夹打开dimm插槽将dimm按顺序放在插槽上 dimm上的切口须与插槽凹口匹配 45
步骤2 垂直插入dimm并固定好直到固定夹跳回原位 dimm就位 45
第二章硬件安装 11 45
5 扩展槽 46
Pex16_1 pci express gen3 x16 插槽 apu cpu x8 模式 ryzen x16 模式 46
Pex1_1 1_2 pci express gen3 x1 插槽 46
Pex1_3 1_4 1_5 pci express gen2 x1 插槽 46
Ryzen ddr最高频率支持表 46
安装扩展卡 46
符合pci express 2 规范同步单向最大理论带宽为500mb s 总带宽为1gb s 46
符合pci express 3 规范同步单向最大理论带宽为16gb s 总带宽为32gb s 46
符合pci express 3 规范同步单向最大理论带宽为1gb s 总带宽为2gb s 46
第二章硬件安装 46
请参照以下步骤安装扩展卡安装扩展卡前请阅读扩展卡的相关指示说明打开电脑机箱后盖移除螺丝和插槽支架将扩展卡按照正确的方向插入插槽直到扩展卡完全就位用螺丝将扩展卡的金属支架固定到机箱后置面板还原电脑机箱后盖开机如有必要可为扩展卡更改bios设置安装扩展卡的驱动 46
6 跳线设置 47
Jcmos1 清空cmos 跳线 47
7 接口和插槽 48
Atxpwr1 atx电源接口 48
Atxpwr2 atx电源接口 48
Auxpwr1 2 图形辅助电源连接器當比特币挖擴使用時必须安装4pin电源连接器 48
为了更好的兼容性我们建议使用标准的atx24 pin电源供应此接口的电源 48
开机前请确保atxpwr1和atxpwr2接口都已插上电源电压不足可能导致系统不稳或者外围设备不能正常运行当配置使用大功率设备的系统时建议您使用带有大功率输出的电源 48
此接口给cpu电路提供 12v电压若cpu电源插头为4针脚请将其插入atxpwr2的 1 2 5 6针脚 48
此连接器是用于显卡的辅助电源连接显卡的独占电源提供更好的图形性能 48
第二章硬件安装 48
Panel1 前置面板接头 49
Sata1 sata4 串行ata 6 0 gb s 接口 49
Sata_power1 sata电源接口 49
Tb350 btc ta320 btc 49
此16针脚接口包含开机重启硬盘指示灯电源指示灯和扬声器接口 49
此sata电源连接器增强后端usb端口的电源 49
此接口通过sata数据线连接sata硬盘 49
第二章硬件安装 15 49
F_audio1 前置面板音频接头 50
F_usb1 2 前置面板usb 2 0接头 50
Jfront_usb3_1 前置面板usb 3 1 gen1 5gb s 接头 50
Pc前置面板支持附加的usb数据线也可连接即插即用外围设备 50
建议您连接前置高清音频插孔享用主板高清音频功能如果要连接ac 97前置音频输出数据线请关闭前置面板插孔检测功能此功能在系统音频工具中可见 50
此接头可连接音频输出数据线支持hd 高清音频和ac 97 50
第二章硬件安装 50
J_com1 串行端口 51
Tb350 btc ta320 btc 51
此主板有一个串行端口可接出rs 232接头 51
第二章硬件安装 17 51
1 uefi bios设置 52
2 刷新bios 52
第三章 uefi bios和软件 52
3 软件 56
启动软件 56
安装软件 56
打开已保存的文本文件显示相关系统信息包括主板 bios cpu 视频设备 os 这些信息当然也在已发送的邮件里 58
第三章 uefi bios和软件 58
输入文件名点击 save 系统信息将被保存至文本文件里 58
1 驱动程序安装注意事项 59
第四章帮助信息 59
2 ami bios 哔声代码 60
3 问题解答 60
Bios 开机自检哔声代码 60
引导模块哔声代码 60
4 raid 功能 61
Raid 定义 61
Tb350 btc ta320 btc 63
第四章帮助信息 29 63
附录i 产品中有毒有害物质或元素的名称及含量 63
