Motherboard Manual
4

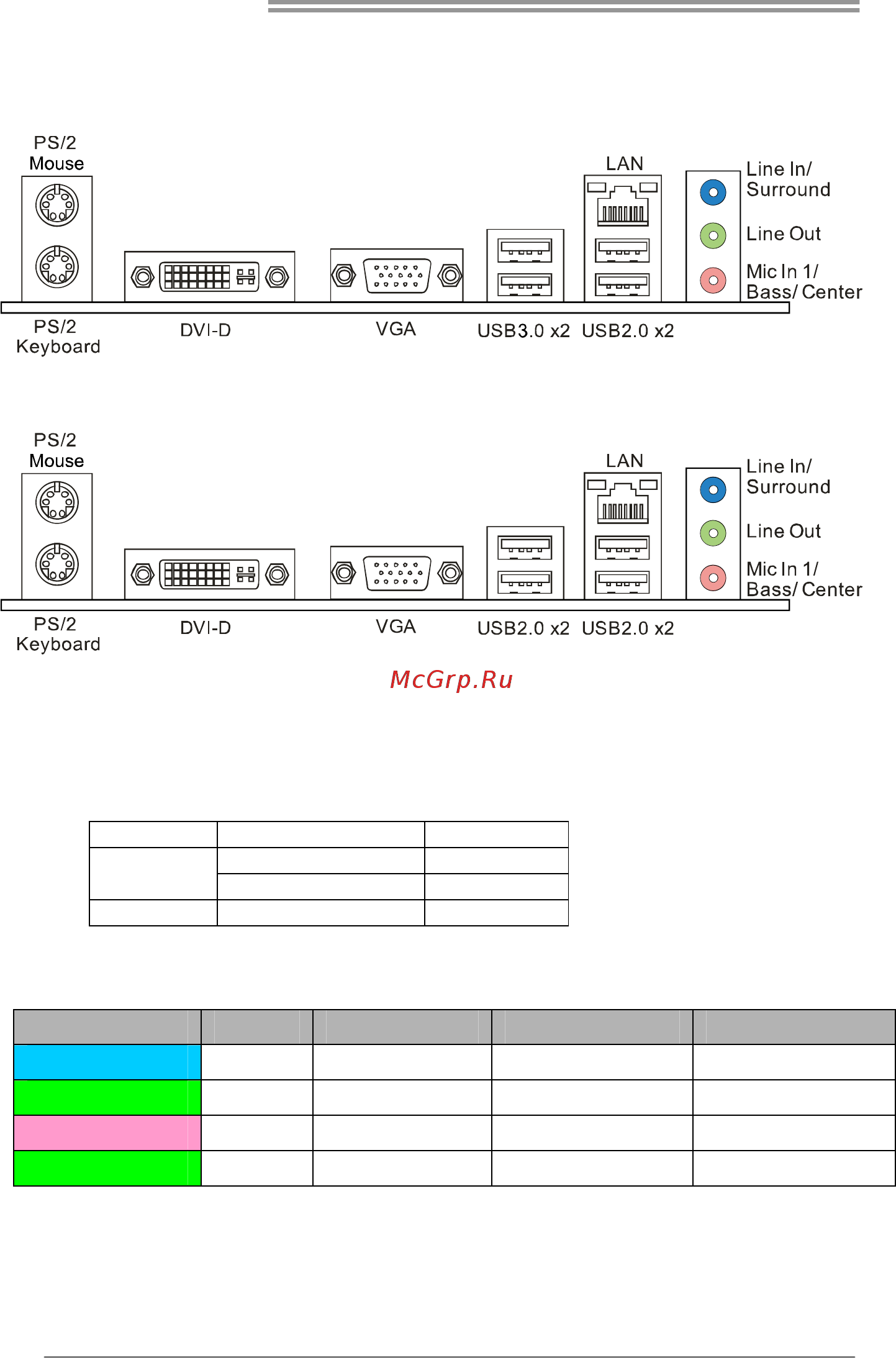

1.4 Rear Panel Connectors
A88M & A78M
A58M
Note 1: DVI-D / VGA Output require an AMD family processor with intedrated graphics.
Note 2: Since the audio chip supports High Definition Audio Specification, the function of each
audio jack can be defined by software. The input / output function of each audio jack
listed above represents the default setting. However, when connecting external
microphone to the audio port, please use the Line In (Blue) and Mic In (Pink) audio jack.
Note 3: Maximum resolution:
Outputs Maximum resolution Bit Depth
1920 x 1200 @60Hz 30 bpp
DVI-D
2560 x 1600 @60Hz 24 bpp
VGA 1920 x 1600 @60Hz --
Note4: To configure 7.1-channel audio, you have to use a chassis with HD front panel audio
module and enable the multi-channel audio feature through O.S. Audio Utility.
The 2/ 4/ 5.1/7.1-channel configuration
Port 2-channel 4-channel 5.1 channel 7.1 channel
Blue (Rear Panel) Line In Rear Speaker Out Rear Speaker Out Rear Speaker Out
Green (Rear Panel) Line Out Front Speaker Out Front Speaker Out Front Speaker Out
Pink (Rear Panel) Mic In Mic In Center/Subwoofer Out Center/Subwoofer Out
Green (Front Panel) -- -- -- Side Speaker Out
