Motherboard Manual

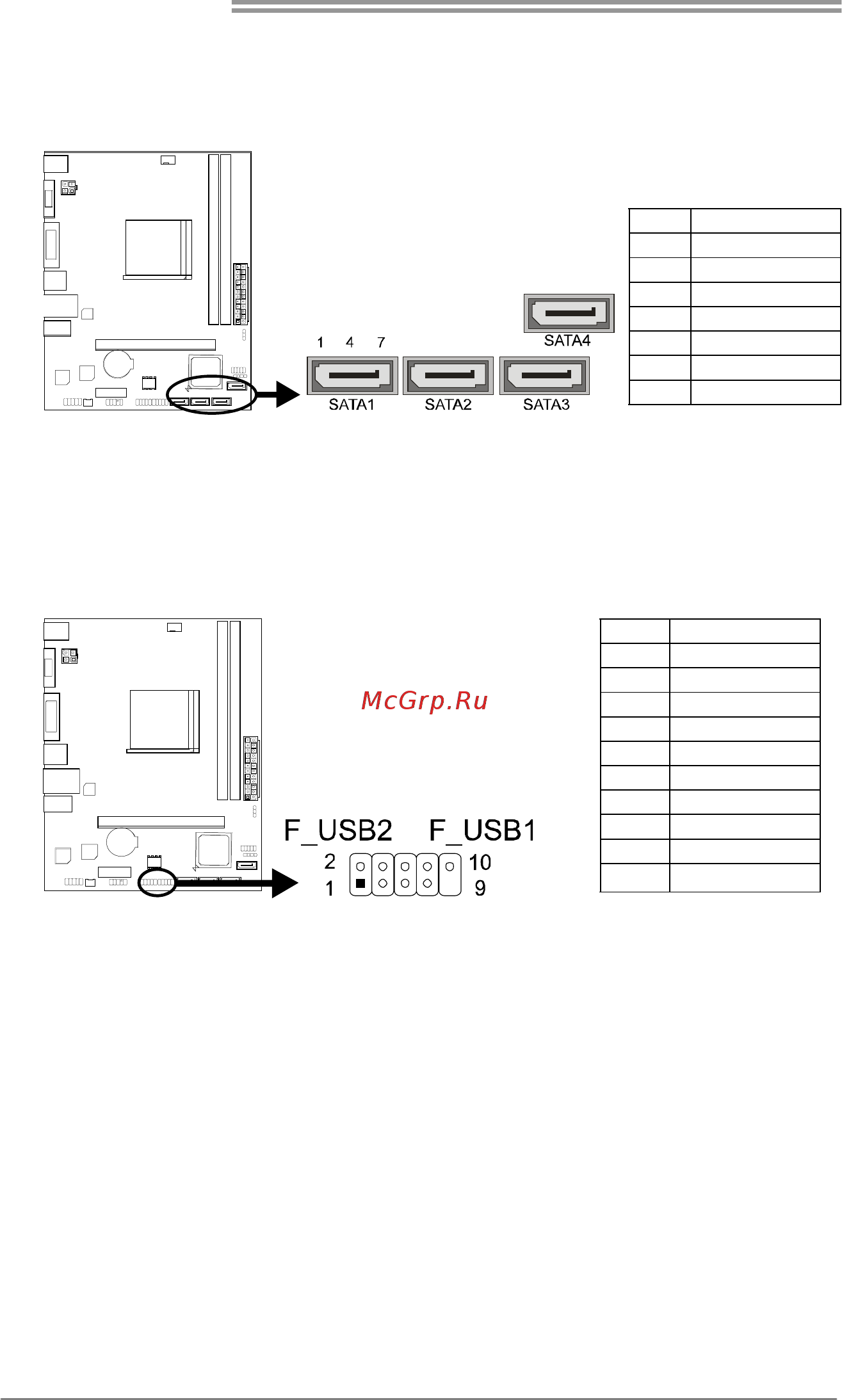

SATA1~SATA4: Serial ATA 3.0 Gb/s Connectors

These connectors connect to SATA hard disk drives via SATA cables.

Pin Assignment

1 Ground

2 TX+

3 TX-

4 Ground

5 RX-

6 RX+

7 Ground

F_USB1/F_USB2: Headers for USB 2.0 Ports at Front Panel

This header allows user to connect additional USB cable on the PC front panel,

and also can be connected with a wide range of simultaneously accessible

external Plug and Play peripherals.

Pin Assignment

1 +5V (fused)

2 +5V (fused)

3 USB-

4 USB-

5 USB+

6 USB+

7 Ground

8 Ground

9 NC

10 Key
