14 | 第二章: 硬件安装

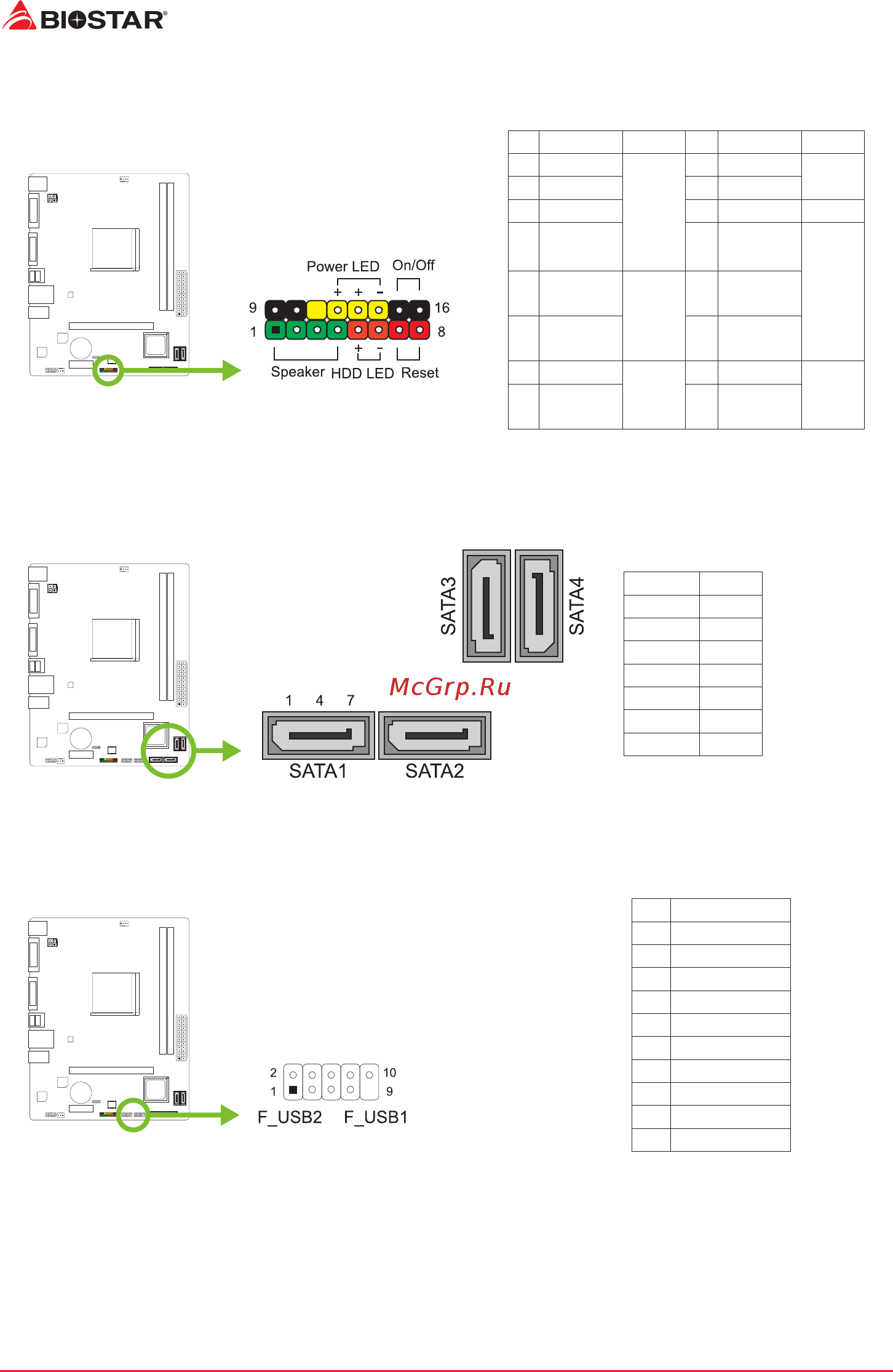

PANEL1: 前置面板接头
此16针脚接口包含开机，重启，硬盘指示灯，电源指示灯和扬声器接口。
针 定义 功能 针 定义 功能
1 +5V
扬声器
接口
9 N/A
N/A
2 N/A 10 N/A
3 N/A 11 N/A N/A
4 扬声器 12
Power
LED (+)
电源指
示灯
5
HDD LED
(+)
硬盘指
示灯
13
Power
LED (+)
6
HDD LED
(-)
14
Power
LED (-)
7 接地
重启按
钮
15 电源按钮
开机按
钮
8
Reset
control
16 接地
SATA1~SATA4: 串行ATA 6�0 Gb/s 接口
此接口通过SATA数据线连接SATA硬盘。
针 定义
1 接地
2 TX+
3 TX-
4 接地
5 RX-
6 RX+
7 接地
F_USB1/2: 前置面板USB 2�0接头
PC前置面板支持附加的USB数据线，也可连接即插即用外围设备。
针 定义
1 +5V (fused)
2 +5V (fused)
3 USB-
4 USB-
5 USB+
6 USB+
7 接地
8 接地
9 Key
10 NC
