14 | Chapter 2: Hardware installaon

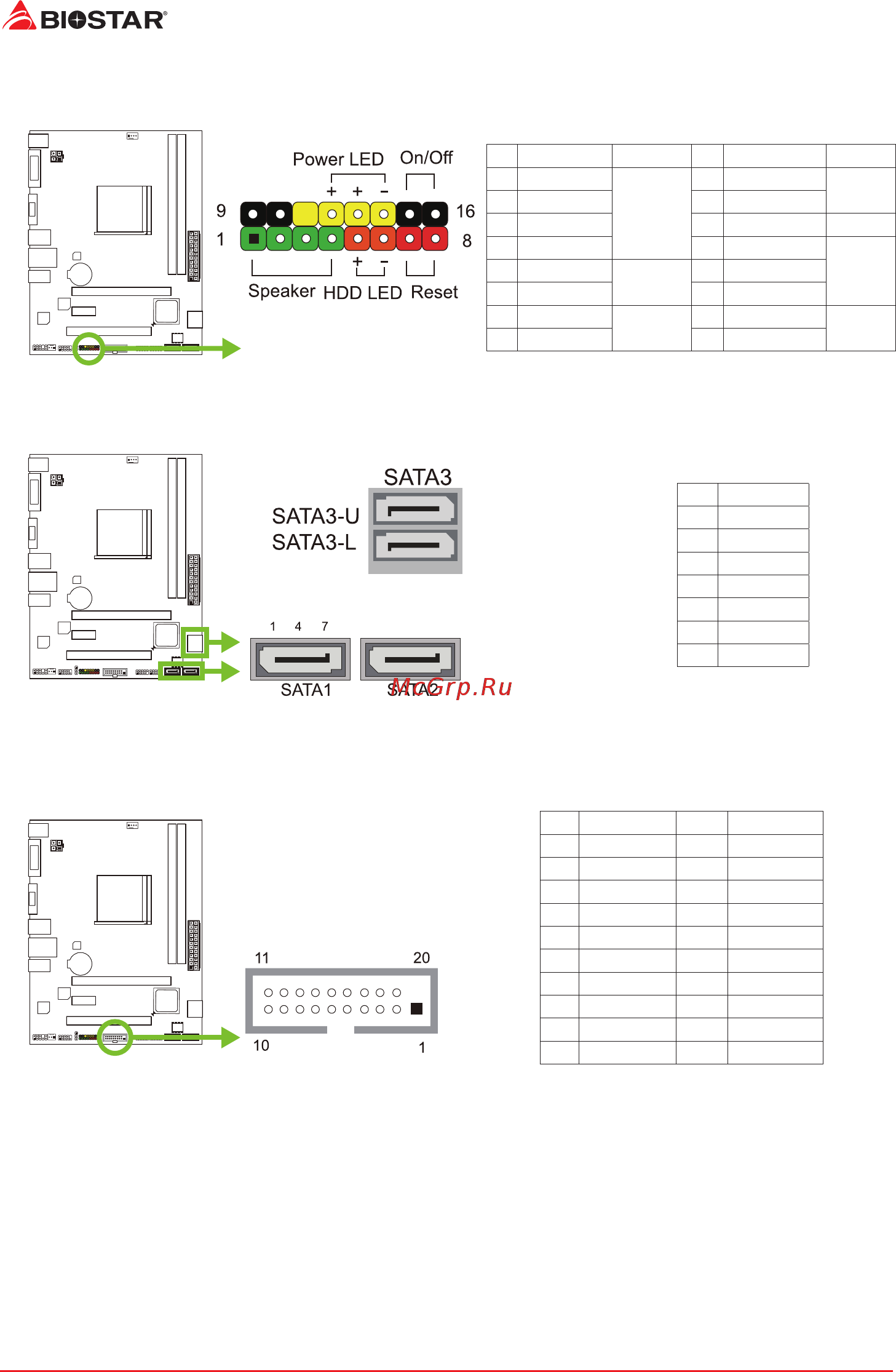

PANEL1: Front Panel Header

This 16-pin header includes Power-on, Reset, HDD LED, Power LED, and speaker connecon.

Pin Assignment Funcon Pin Assignment Funcon

1 +5V

Speaker

Connector

9 N/A

N/A

2 N/A 10 N/A

3 N/A 11 N/A N/A

4 Speaker 12 Power LED (+)

Power

LED

5 HDD LED (+)

Hard drive

LED

13 Power LED (+)

6 HDD LED (-) 14 Power LED (-)

7 Ground

Reset

buon

15 Power buon

Power-on

buon

8 Reset control 16 Ground

SATA1~SATA3: Serial ATA 6.0 Gb/s Connectors

These connectors connect to SATA hard disk drives via SATA cables.

Pin Assignment

1 Ground

2 TX+

3 TX-

4 Ground

5 RX-

6 RX+

7 Ground

JFRONT_USB3_1: Header for USB 3.0 Ports at Front Panel

This header allows user to add addional USB ports on the PC front panel, and also can be

connected with a wide range of external peripherals.

Pin Assignment Pin Assignment

1 VBUS0 11 D2+

2 SSRX1- 12 D2-

3 SSRX1+ 13 Ground

4 Ground 14 SSTX2+

5 SSTX1- 15 SSTX2-

6 SSTX1+ 16 Ground

7 Ground 17 SSRX2+

8 D1- 18 SSRX2-

9 D1+ 19 VBUS1

10 ID 20 Key
