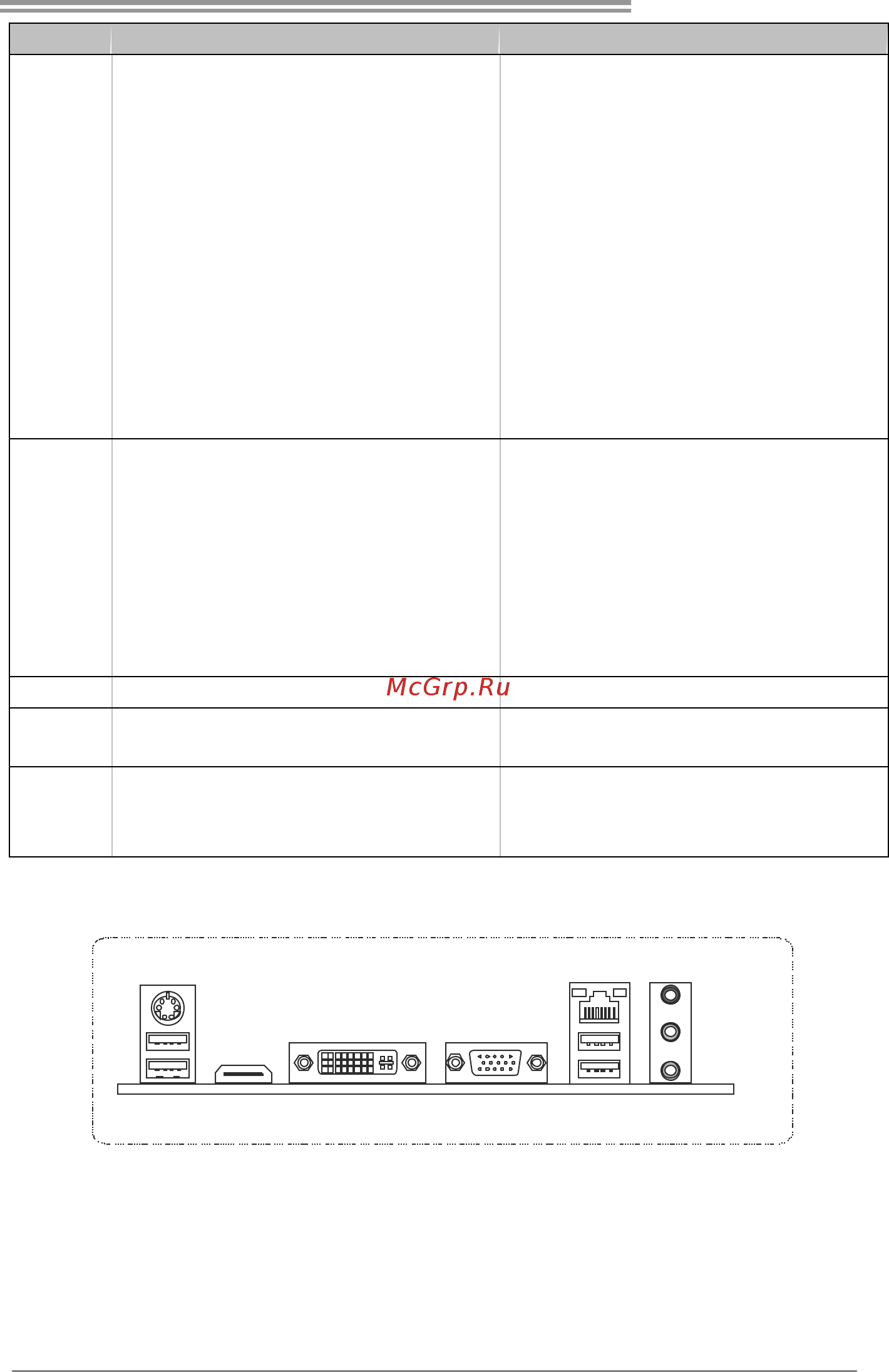

A880GU3Z/A880GZ
3
A880GU3Z A880GZ
SATA Connector x4 SATA Connector x4
Front Panel Connector x1 Front Panel Connector x1
Front Audio Connector x1 Front Audio Connector x1
S/PDIF Out Connector x1 S/PDIF Out Connector x1
CPU Fan Header x1 CPU Fan Header x1
System Fan Header x1 System Fan Header x1
CMOS clear Header x1 CMOS clear Header x1
USB 2.0 Connector x2 USB 2.0 Connector x2
Power Connector (24pin) x1 Power Connector (24pin) x1
Power Connector (4pin) x1 Power Connector (4pin) x1
Consumer IR Connector x1 Consumer IR Connector x1
Printer Port Connector x1 Printer Port Connector x1
On Board
Connector
Serial port Connector x1 Serial port Connector x1
Back Panel
I/O
PS/2 Keyboard / Mouse x1
HDMI Port x1
VGA Port x1
DVI-D Port x1
LAN Port x1
USB 2.0 Port (by SB850) x2
USB 3.0 Port (by ASM1042) x2
Audio Jack x3
PS/2 Keyboard / Mouse x1
HDMI Port x1
VGA Port x1
DVI-D Port x1
LAN Port x1
USB 2.0 Port x4
Audio Jack x3
Board Size 200 mm(W) x 244 mm(L) 200 mm(W) x 244 mm(L)
Special
Features
RAID 0 / 1 / 5 / 10 support RAID 0 / 1 / 5 / 10 support
OS Support
Windows XP / Vista / 7
Biostar reserves the right to add or remove
support for any OS With or without notice.
Windows XP / Vista / 7
Biostar reserves the right to add or remove
support for any OS With or without notice.
1.4 R
EAR PANEL CONNECTORS
USB3.0X2 (For A880GU3Z)
LAN
HDMI VGADVI-D
Line In/
Surround
Line Out
Mic In 1/
Bass/ Center
PS/2
Keyboard / Mouse
USB 2.0X2
USB2.0X2 (For A880GZ)
NOTE: The HDMI and DVI-D ports both can provide digital video signals out-put function, but
these two interfaces cannot work at the same time. The chipset uses the same channel
to control HDMI and DVI-D, so these ports cannot transmit video signal to different display
panels simultaneously.
NOTE: USB3.0 ports are backward compatible with USB2.0/USB1.X devices. USB3.0 is
controlled by ASM1042, but, USB2.0/USB1.X is controlled by SB850. (For A880GU3Z)
