A55MLV & A55MLC UEFI BIOS Manual

Serial Port

This item enables or dis ables Serial Port (COM).

Options: Enabled (Default) / Disabled

Change Settings

This item s elects an optimal setting for Super IO device.

Options: Auto (Default) / IO=3F8h; IRQ=4 / IO=3F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11,

12 / IO=2F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12 / IO=3E8h; IRQ=3, 4, 5, 6,

7, 9, 10, 11, 12 / IO=2E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12

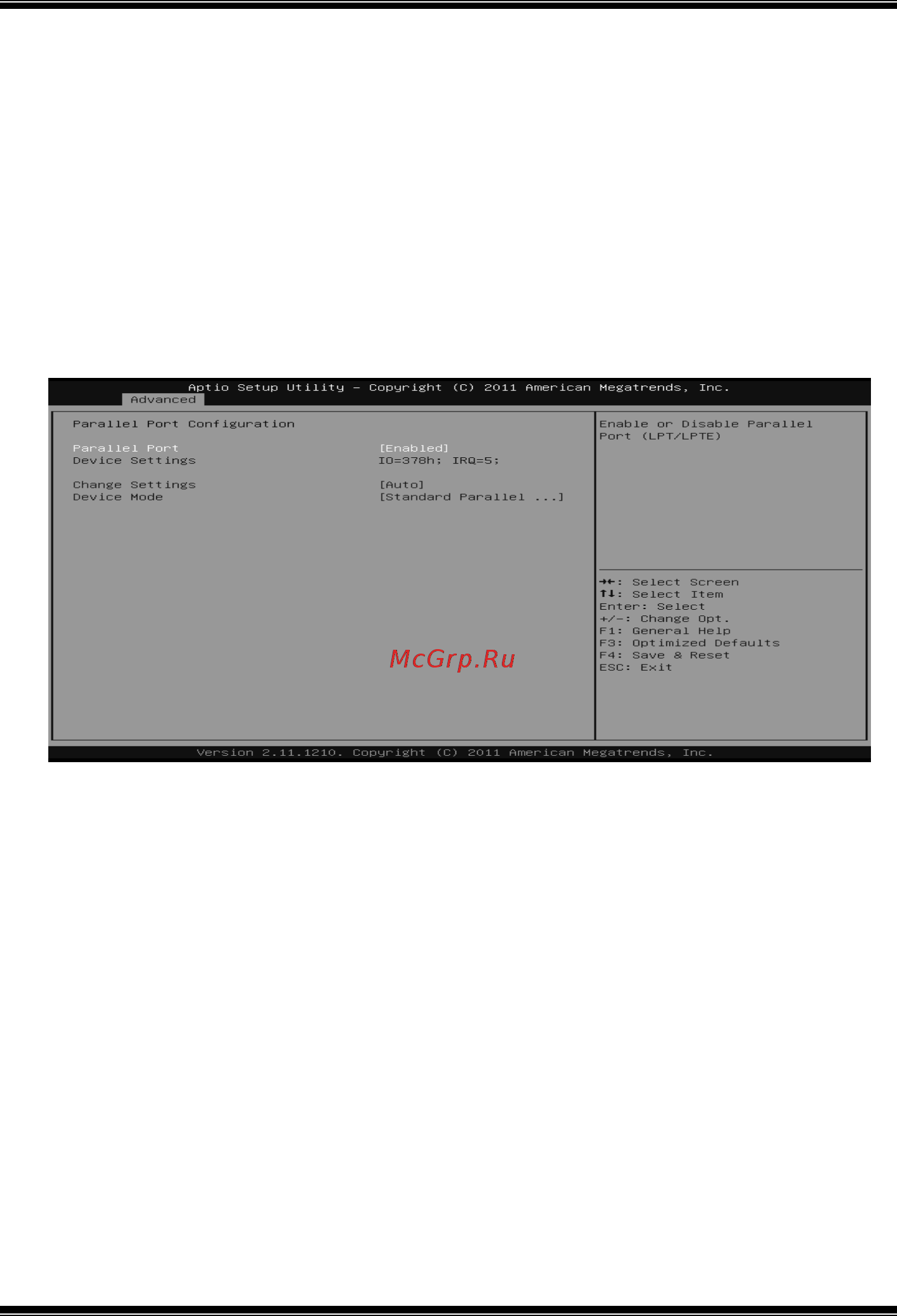

Parallel Port Configuration

Parallel Port

This item enables or dis ables Parallel Port (LPT/LPTE).

Options: Enabled (Default) / Disabled

Change Settings

This item allows you to select an optimal setting for Super IO device.

Options: Auto (Default) / IO= 378h; IRQ=5 / IO=378h; IRQ=5, 6, 7, 9, 10, 11, 12 /

IO=278h; IRQ=5, 6, 7, 9, 10, 11, 12 / IO=3BCh; IRQ=5, 6, 7, 9, 10, 11,

Device Mode

This item allows you to determine how the parallel port should function.

Options: Standard Parallel Port Mode (Default) (Using Parallel port as Standard

Printer Port) /

EPP Mode (Using Parallel Port as Enhanced Parallel Port) /

ECP Mode (Us ing Parallel port as Extended Capabilities Port) /

EPP Mode & ECP Mode (Using Parallel port as EPP & ECP mode)
