TA770E/TA770XE/TA790XE
3
TA770E/TA770XE TA790XE
PCI slot x3 PCI slot x3
PCI Express Gen2 x16 slot x1 PCI Express Gen2 x16 slot x1
Slots
PCI Express Gen2 x1 slot x2 PCI Express Gen2 x1 slot x2
Floppy Connector x1 Floppy Connector x1
IDE Conn ector x1 IDE Connector x1
SATA Connector x6 SATA Connector x6
Front Panel Connector x1 Front Panel Connector x1
Front Audio Connector x1 Front Audio Connector x1
CD-in Connector x1 CD-in Connector x1
S/PDIF out Connector x1 S/PDIF out Connector x1
CPU Fan Header x1 CPU Fan Header x1
System Fan Header x2 System Fan Header x2
CMOS clear Header x1 CMOS clear Header x1
USB Connector x3 USB Connector x3
Serial port Connector x1 Serial port Connector x1
Power Connector (24pin) x1 Power Connector (24pin) x1
On Board
Connectors
Power Connector (4pin) x1 Power Connector (4pin) x1
Back Panel
I/O
PS/2 Keyboard x1
PS/2 Mouse x1
LAN port x1
USB Port x6
Audio Jack x3
PS/2 Keyboard x1
PS/2 Mouse x1
LAN port x1
USB Port x6
Audio Jack x3
Board Size 220mm (W) x 305 mm (L) 220mm (W) x 305 mm (L)
OS Support
Windows XP / Vista 32 / Vista 64
Biostar reserves the right to add or remove
support for any OS With or without notice.
Windows XP / Vista 32 / Vista 64
Biostar reserves the right to add or remove
support for any OS With or without notice.

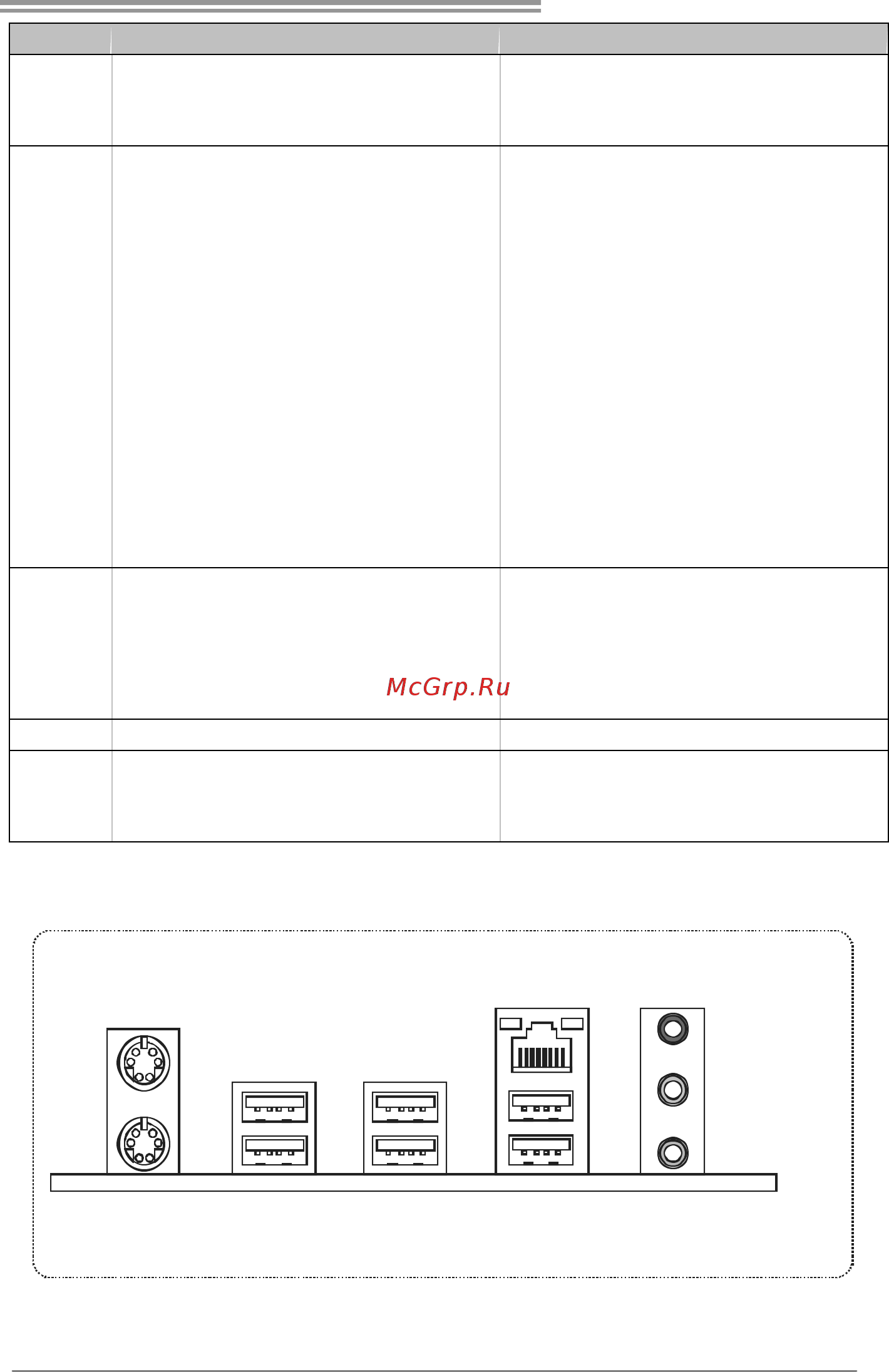

1.4 REAR PANEL CONNECTORS
PS/2
Mouse
PS/2
Keyboar d
USBX2
USBX2
USBX2
LAN
Line In/
Surroun d
Line Out
Mic I n 1/
Bass/ Center
