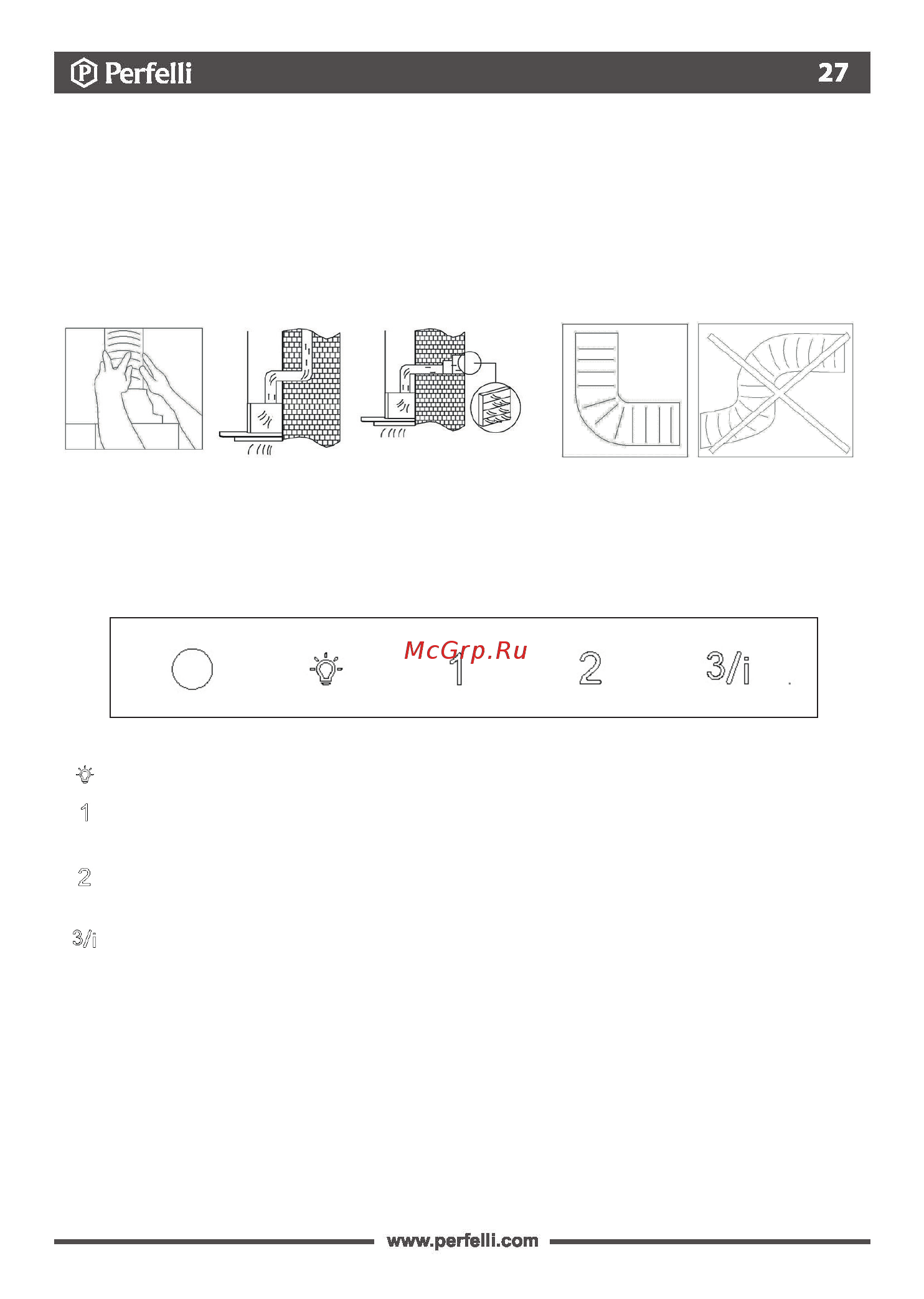

Perfelli DNS 6783 B 1100 BL LED Strip [27/32] Pic 10 pic 11

- Use the pipes with 120-150 mm diameter.

- Install the exible aluminum pipe on the outlet of the cooker hood. Install the other end of

the pipe to the chimney hole on the wall (Pic. 10).

Since the bends and elbows will cause reduction in air excessive and bents must be avoided

elbows as much as possible (Pic. 11).

4.4 INSTALLING THE ALUMINUM PIPE

5. CONTROL PANEL

Pic. 10 Pic. 11

Pic. 12

Hoods DNS 6383 B 750 LED Strip, DNS 6783 B 1100 LED Strip is equipped with a

sensor control without display (Pic. 12).

- Press the light button once in order to turn on/off the lighting.

- Pressing the 1 button starts to hood blower at the 1

speed and the 1 button becomes

lighten. Pressing the same button again when it is light, turns off the hood.

- Pressing the 2 button starts to hood blower at the 2

speed and the 2 button

becomes lighten. Pressing the same button again when it is light, turns off the hood.

- Pressing the 3/i button starts to hood blower at the 3

speed and the 3/i button

becomes lighten. At a 3 speed blower installed hood, pressing the same button again

when it is light, turns off the hood. At a 4 speed blower installed hood, pressing the 3/I

button again increases the blower to the 4th (intensive) speed (Only for hood DNS 6783

B 1100 LED Strip). The 3/i button light will start to ash and will turn back to 3rd speed

automatically after 7 minutes. Pressing the 3/I button before this 7 minutes period will turn

off the hood completely.

Pressing and keeping pressed for 2 seconds any of the 1 – 2 – 3/i buttons will activate

the timer function. In this mode hood will operate at the pressed button speed and will

automatically turn off completely after 15 minutes.
