NF520B A2G+ BIOS Setup

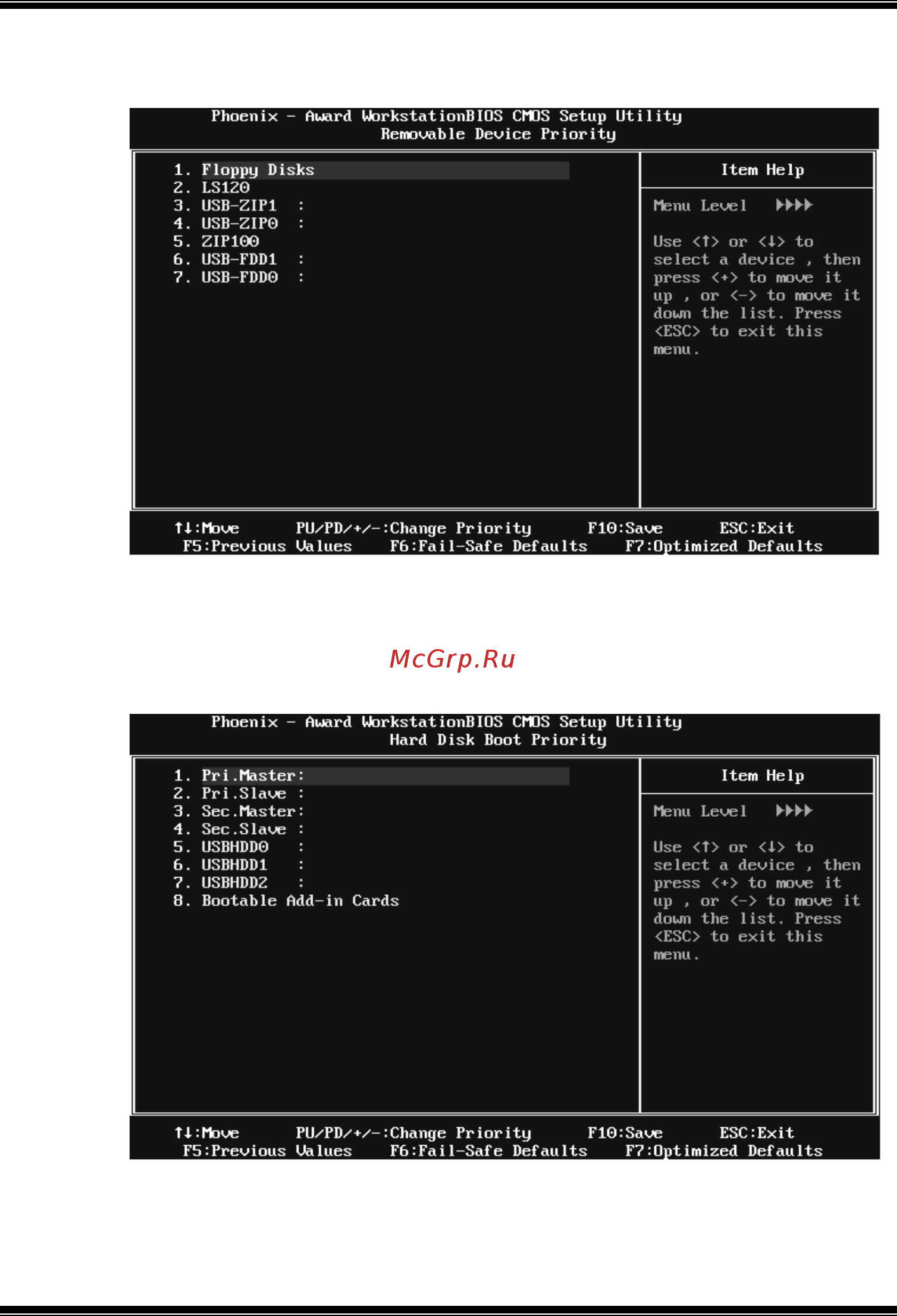

Removable Device Priority

Select Removable Boot Device Priority.

The Choices: F lopp y Disks, Zip 100, USB-F DD0, US B-F DD1, US B-ZIP0,

USB-ZIP 1, LS120.

Hard Disk Boot Priority

The BIOS will attempt to arrange the Hard Disk boot sequence

automatically.You can change the Hard Disk booting sequence here.

The Choices: Pri. Master, Pri. Slave, Sec. Master, Sec. Slave, USBHDD0,

USBHDD1, USBHDD2, and Bootable Add-in Cards.
