M7SUA BIOS Setup
9
3 Advanced BIOS Features

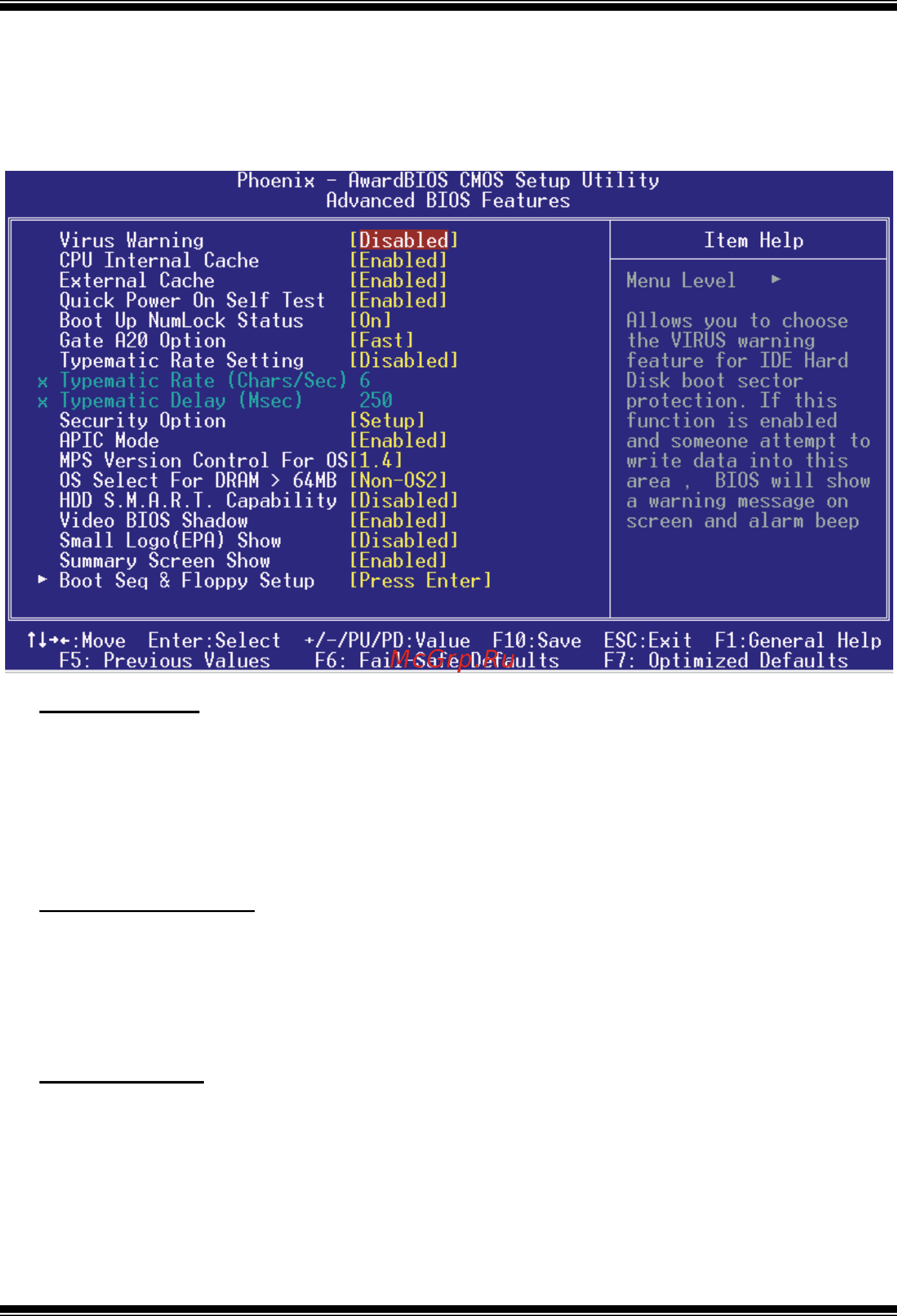

Figure 3. Advanced BIOS Setup
Virus Warning
This option allows you to choose the Virus Warning feature that is used to protect the IDE
Hard Disk boot sector. If this function is enabled and an attempt is made to write to the
boot sector, BIOS will display a warning message on the screen and sound an alarm beep.
Disabled (default) Virus protection is disabled.
Enabled Virus protection is activated.
CPU Internal Cache
Depending on the CPU/chipset in use, you may be able to increase memory access time
with this option.
The Choices:
Enabled (default) Enable cache.
Disabled Disable cache.
External Cache
This option you to enable or disable “Level 2” secondary cache on the CPU, which may
improve performance.
The Choices:
Enabled (default) Enable cache.
Disabled Disable cache.
