Biostar T-Series TForce 6100-939
User’s Manual
4
CHAPTER 2: HARDWARE INSTALLATION

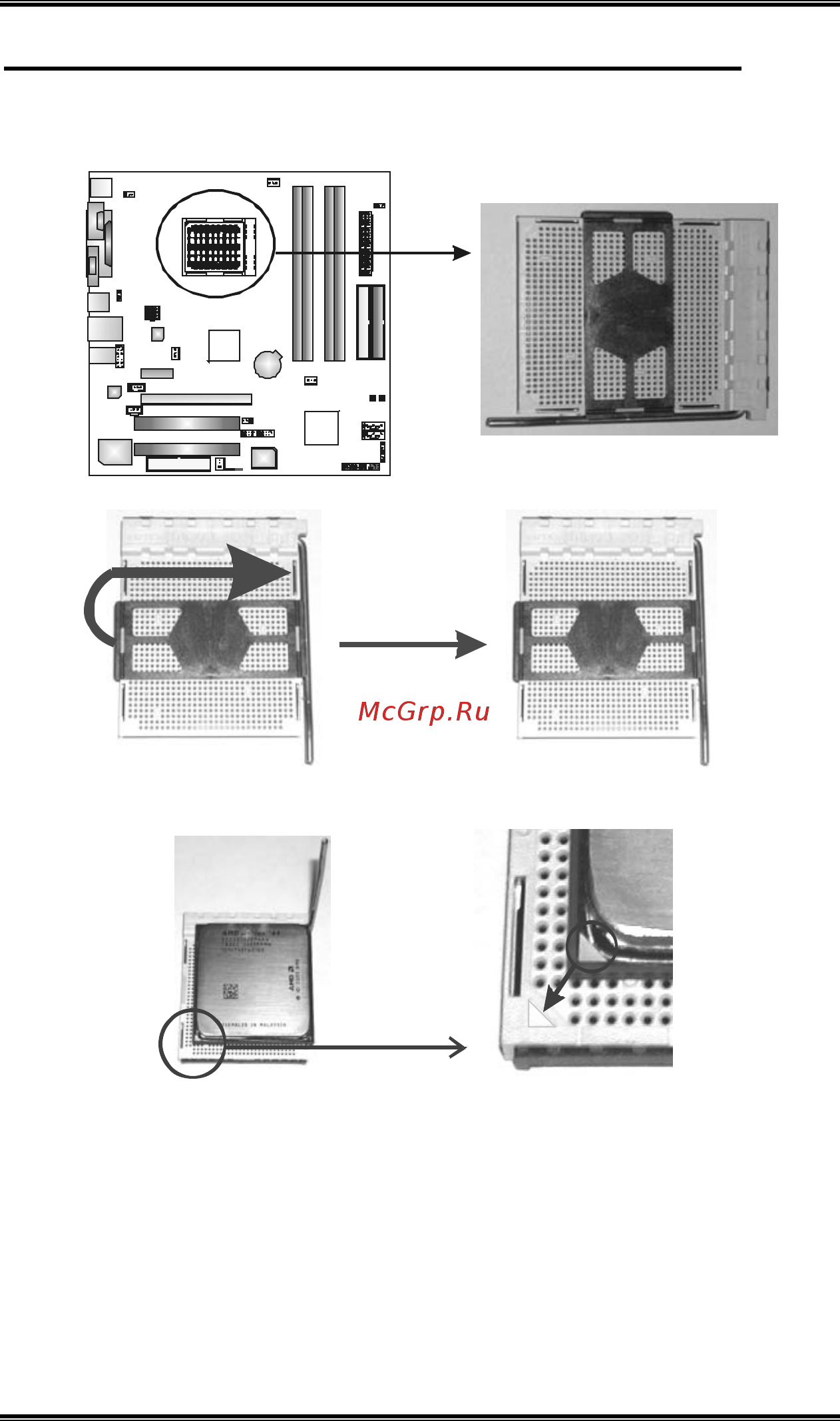

2.1 INSTALLING CENTRAL PRIOCESSING UNIT (CPU)
A. Central Processing Unit (CPU)
Step 1: Remove the socket protection cap.
Step 2: Pull the lever toward direction A from the socket and then raise
the lever up to a 90-degree angle.
