Biostar FX9830M Версия 6.0 [7/51] Chapter 2 hardware installation

Chapter 2: Hardware installaon | 7

FX9830M

Chapter 2: Hardware installaon

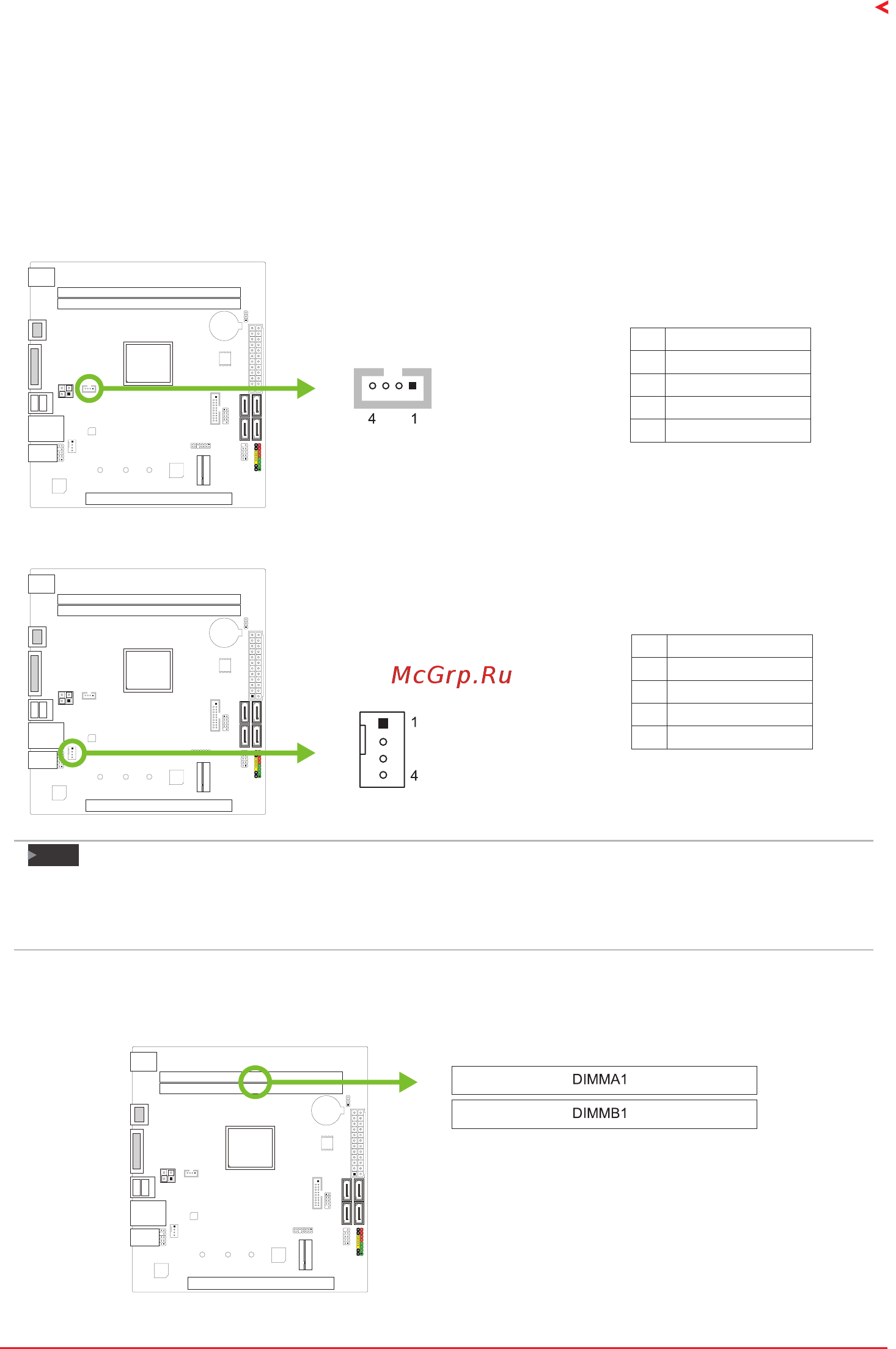

2.1 Connect Cooling Fans

These fan headers support cooling-fans built in the computer. The fan cable and connector

may be dierent according to the fan manufacturer.

CPU_FAN: CPU Fan Header

Pin Assignment

1 Speed Control Signal

2 Sense

3 Voltage Control

4 Ground

SYS_FAN: System Fan Header

Pin Assignment

1 Ground

2 +12V

3 Sense

4 Speed Control Signal

Note

 CPU_FAN,SYS_FANsupport4-pinand3-pinheadconnectors.Whenconnecngwithwiresonto

connectors,pleasenotethattheredwireistheposiveandshouldbeconnectedtopin#2,andthe

blackwireisGroundandshouldbeconnectedtopin#1(GND).

2.2 Install System Memory

DDR4 Modules
