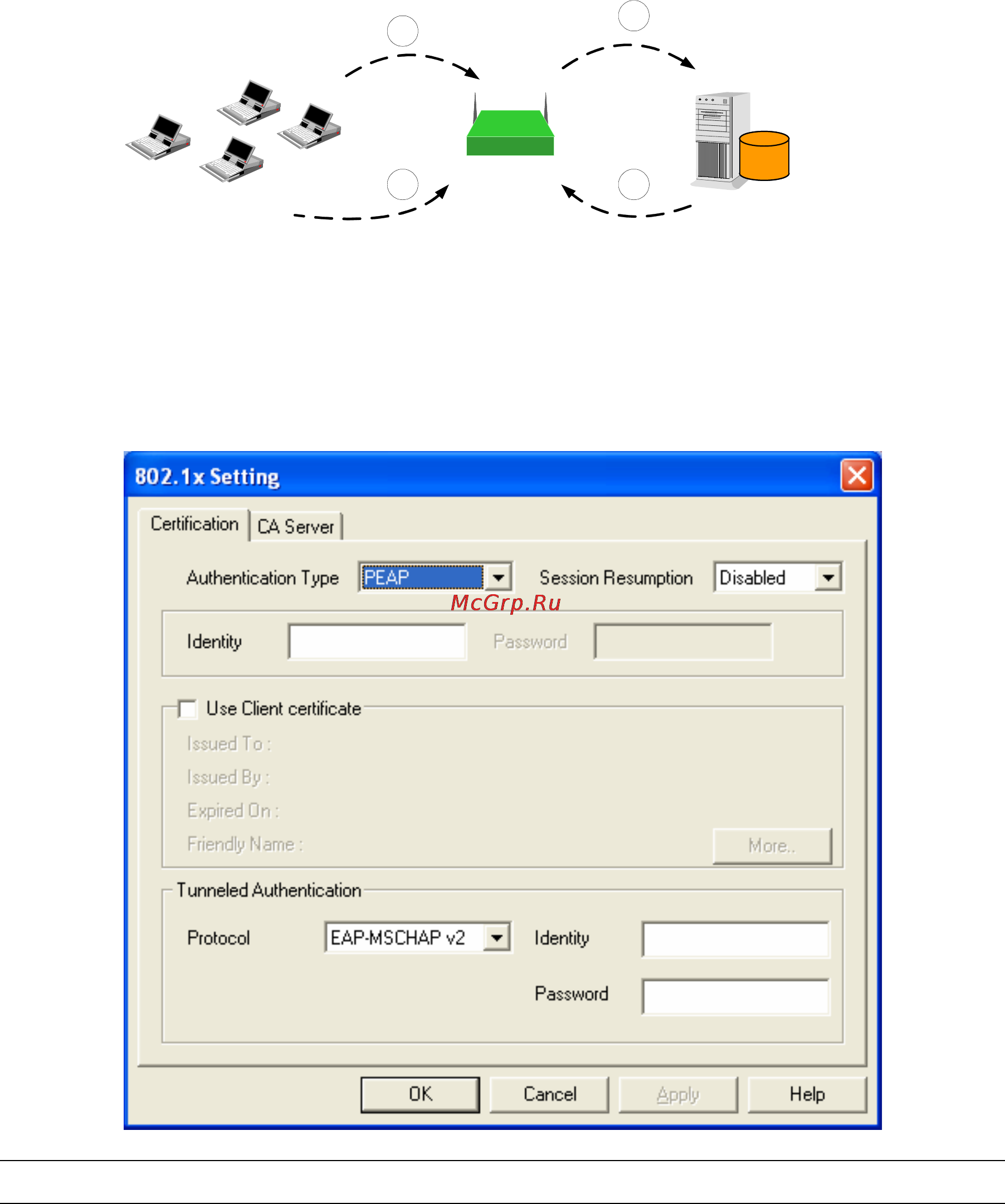

Planet WML-3565 [20/34] 1 client requests to login the network

RADIUS

Server

Windows 2000 IAS

(Internet Authentication

Service)

IEEE 802.1x

Access Client

Access Point

RADIUS

Client

(2) Login with username,

password.

(1) Client requests to login the

network.

(4) Approve or deny user

(3) Send username, password to

RADIUS server.

Parameter Description

Authentication Type The EAP authentication protocols this card has supported are

included as follows. This setting has to be consistent with the

wireless APs or Routers that the card intends to connect.

PEAP &TTLS – PEAP and TTLS are similar and easier than TLS

in that they specify a stand-alone authentication protocol be used

within an encrypted tunnel. TTLS supports any protocol within its

tunnel, including CHAP, MS-CHAP, MS-CHAPv2, PAP and

EAP-MD5. PEAP specifies that an EAP-compliant authentication

protocol must be used; this card supports EAP-MSCHAP v2,
