Руководство по вводу в эксплуатацию Страница: 48

Daikin REYQ32M7W1B [48/125] Main screen

Commissioning Manual EM11A021

DCM601A51 intelligent Touch Manager

(1)

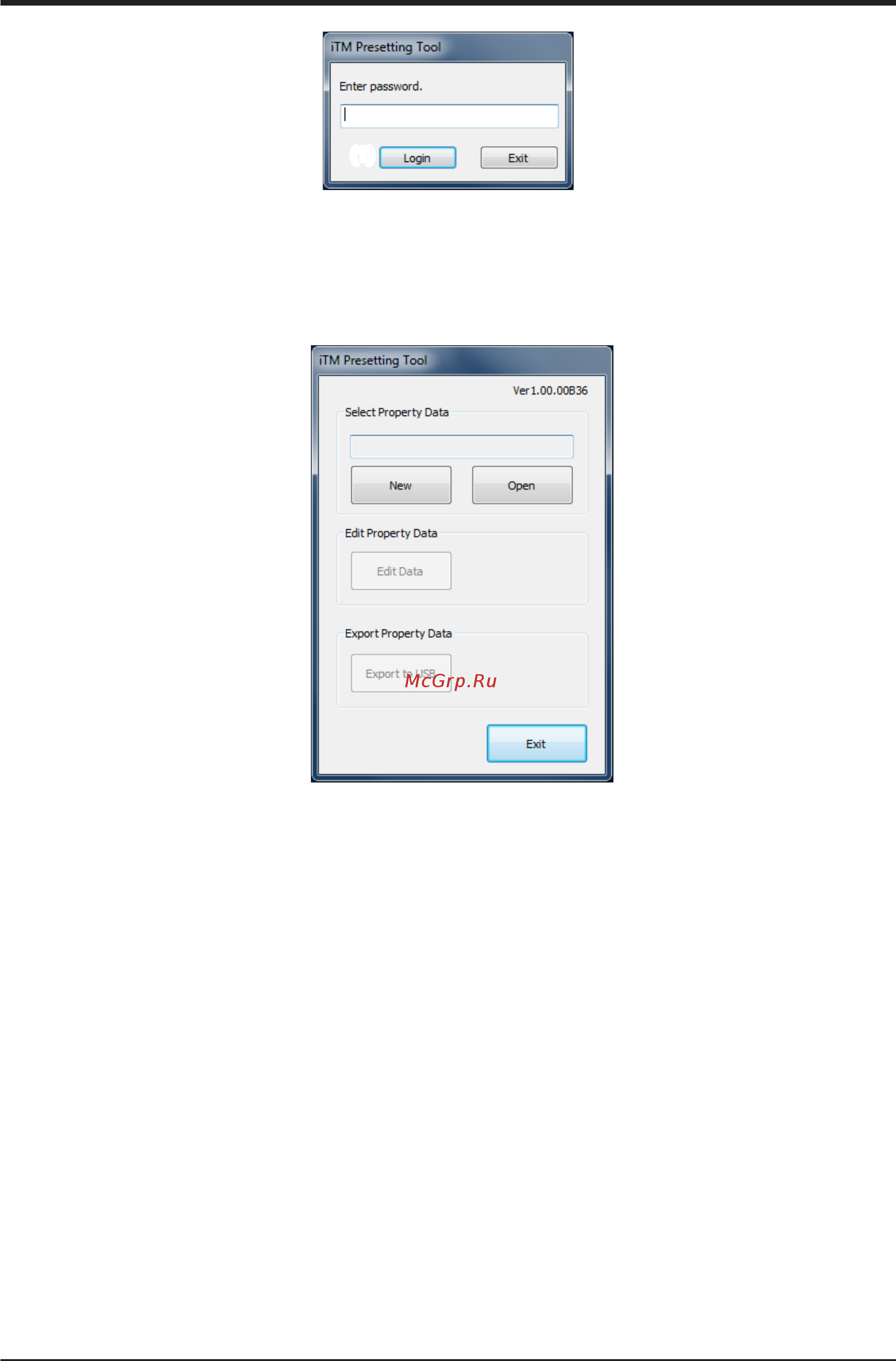

2. On the login screen that appears, enter the password and click the Login button (1).

The iTM Pre-engineering tool main screen appears if the correct password has been provided.

Main screen
