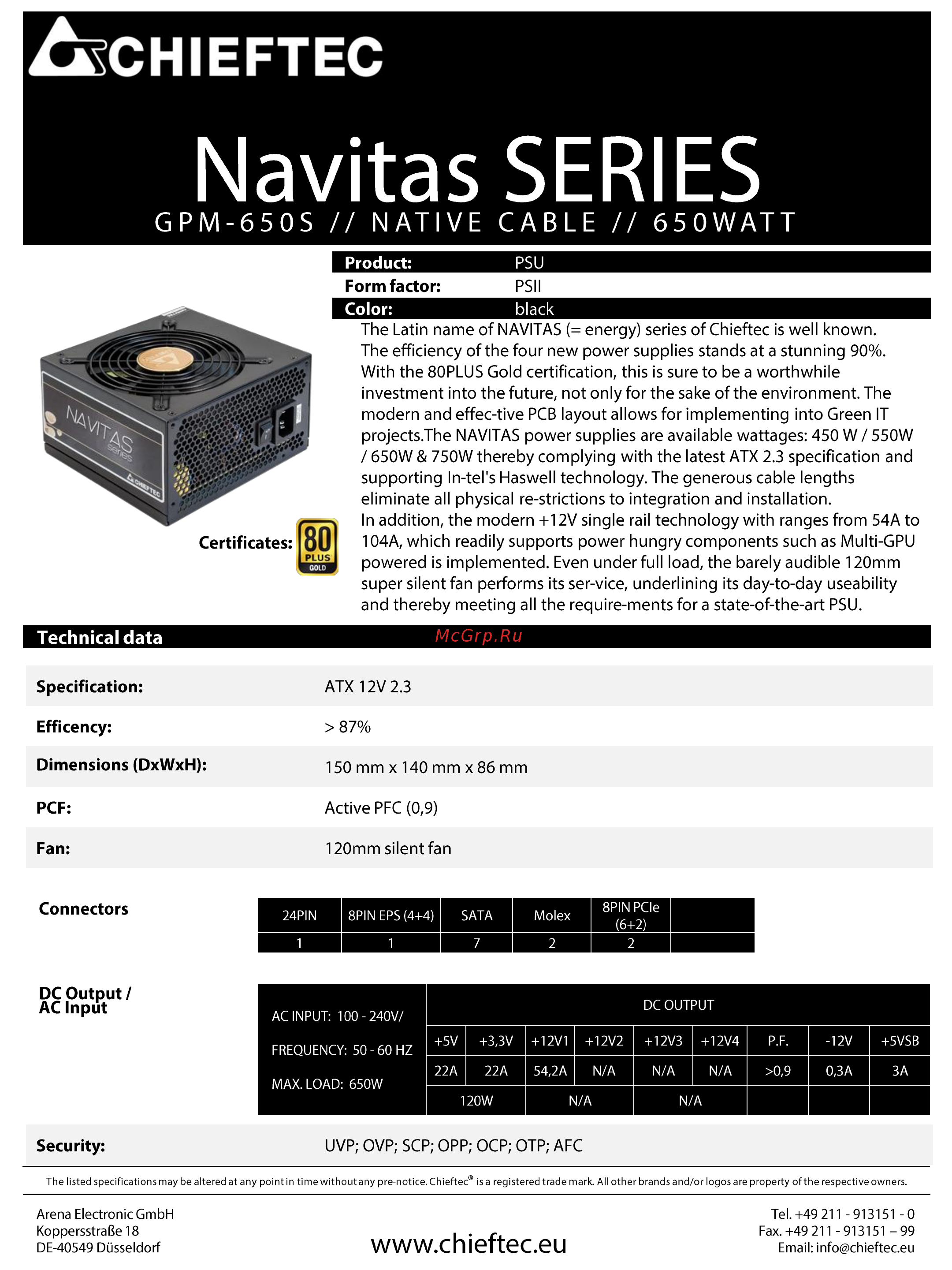

CHIEFTEC Navitas SERIES GPM 650S H NATIVE CABLE H 650WATT Product Form factor Color PSU PSII black The Latin name of NAVITAS energy series of Chieftec is well known The efficiency of the four new power supplies stands at a stunning 90 With the 80PLUS Gold certification this is sure to be a worthwhile investment into the future not only for the sake of the environment The modern and effec tive PCB layout allows for implementing into Green IT projects The NAVITAS power supplies are available wattages 450 W 550W 1650W 750W thereby complying with the latest ATX 2 3 specification and supporting In tel s Haswell technology The generous cable lengths eliminate all physical re strictions to integration and installation In addition the modern 12V single rail technology with ranges from 54A to 104A which readily supports power hungry components such as Multi GPU powered is implemented Even under full load the barely audible 120mm super silent fan performs its ser vice underlining its day to day useability and thereby meeting all the require ments for a state of the art PSU Certificates Technical data Specification ATX 12V 2 3 Efficency 87 Dimensions DxWxH 150 mm X 140 mm x86 mm PCF Active PFC 0 9 Fan 120mm silent fan Connectors DC Output AC Input 24PIN 8PIN EPS 4 4 SATA Molex 8PIN PCIe 6 2 1 1 7 2 2 DC OUTPUT AC INPUT 100 240V FREQUENCY 50 60 HZ 5V 3 3V 12V1 12V2 12V3 12V4 P F 12V 5VSB 22A 22A 54 2A N A N A N A 0 9 0 3A ЗА MAX I OAD650WUJUVV IVIrA X LVyrALz 120W Security N A N A UVP OVP SCP OPP OCP OTP AFC The listed specifications may be altered at any point in time without any pre notice Chieftec is a registered trade mark All other brands and or logos are property of the respective owners Arena Electronic GmbH Koppersstraße 18 DE 40549 Düsseldorf Tel 49 211 913151 0 Fax 49 211 913151 99
